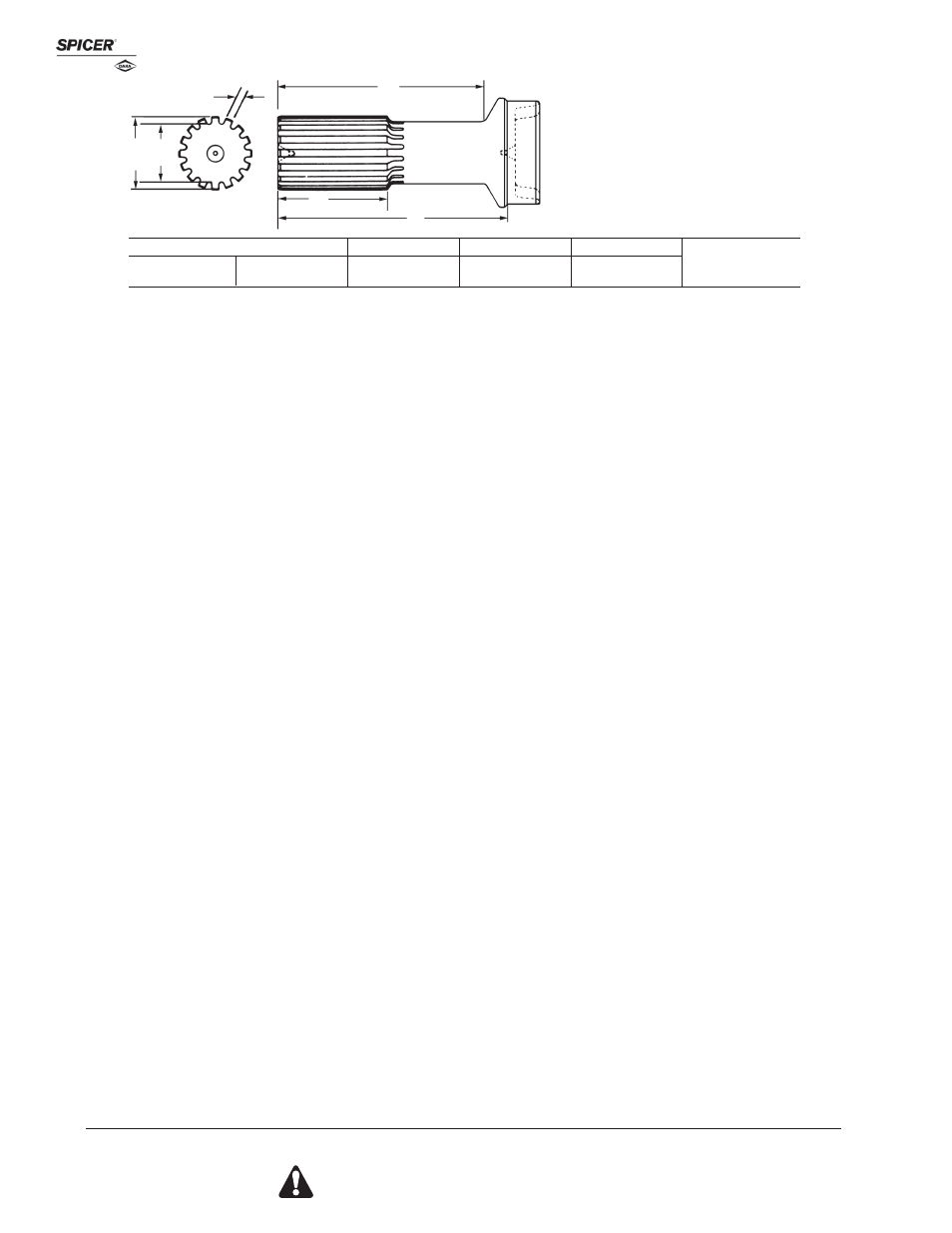

J300P-7 Slip Tube Shafts
Width
Minor
Dia.
Major
Dia.
R
L
K
Note: Spline is Glidecote except where footnoted.
Fits Tube K L R
Diameter
Wall
Thickness
Length
of Spline
End of Spline
to Weld
End of
Spline to Radius
Spicer Part
Number
6 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued „ Part is available until supply is exhausted Ž Not sold separately
1.500-16 Spline (Continued)
4.000
.083 7.875 3.000 6.688 3-40-1501
4.500 .095 7.688 2.500 6.438 3-40-1281•
1.562-16 Spline
3.500
.083 6.750 3.000 5.810 3-40-1571
3.500 .083 8.750 3.000 7.810 3-40-1871
3.500 .083 10.750 3.000 9.810 3-40-1411
4.000 .083 6.940 3.000 5.810 3-40-1381
4.000 .083 8.940 3.000 7.810 3-40-1551
1.562-23 Based On 24 Involute Spline
3.500
.083 8.000 3.000 7.060 3-40-2091
1.563-23 Based On 24 Involute Spline
3.500
.083 7.402 3.500 5.781 55-40-61X•
3.500 .083 8.000 3.000 7.060 3-40-2171
3.500 .083 8.701 3.500 7.080 55-40-81X
3.500 .083 8.701 3.500 7.083 55-40-71•
55-40-71 was replaced by 55-40-81X
4.000 .083 7.400 3.500 5.781 55-40-11
4.000 .083 7.400 3.500 5.781 55-40-21X•
4.000 .083 8.701 3.500 7.080 55-40-41X•
1.750-16 Spline
3.500
.095 6.750 3.000 5.906 4-40-821
3.500 .095 6.781 3.000 5.812 4-40-761
3.500 .095 7.938 3.000 6.969 4-40-741•
3.500 .095 9.219 3.000 8.250 4-40-721
3.500 .095 12.000 5.000 11.030 4-40-1031 ƒ
3.500 .095 14.219 3.000 13.360 4-40-981
3.500 .095 15.469 3.000 14.610 4-40-1021
3.500 .095 20.120 3.000 19.250 4-40-1011
3.500 .095 20.750 3.000 19.870 4-40-1061
3.500 .156 6.781 3.000 5.812 4-40-951
4.000 .083 6.938 3.000 5.812 4-40-781
4.000 .134 6.938 3.000 5.812 4-40-991•
1.752-26 Based On 27 Involute Spline
3.500
.095 8.752 3.500 7.140 70-40-71 Ž
3.500 .095 8.752 3.500 7.140 70-40-81X
4.000 .083 7.953 3.500 6.531 70-40-11•
4.000 .083 7.953 3.500 6.531 70-40-21X•
4.000 .083 8.751 3.500 7.330 70-40-41X•
1.812-28 Involute Spline
3.500
.095 9.812 4.000 8.906 4-40-961•
1.937-29 Based On 30 Involute Spline
4.000
.095 8.799 4.000 6.841 100-40-21X•
Refer to bulletin JOI-TEC-41 for important spline data
4.000 .095 9.590 4.000 7.831 100-40-31
100-40-31 was replaced by 100-40-41X; Refer to bulletin JOI-TEC-41 for important spline data
4.000 .095 9.590 4.000 7.831 100-40-41X
Refer to bulletin JOI-TEC-41 for important spline data
