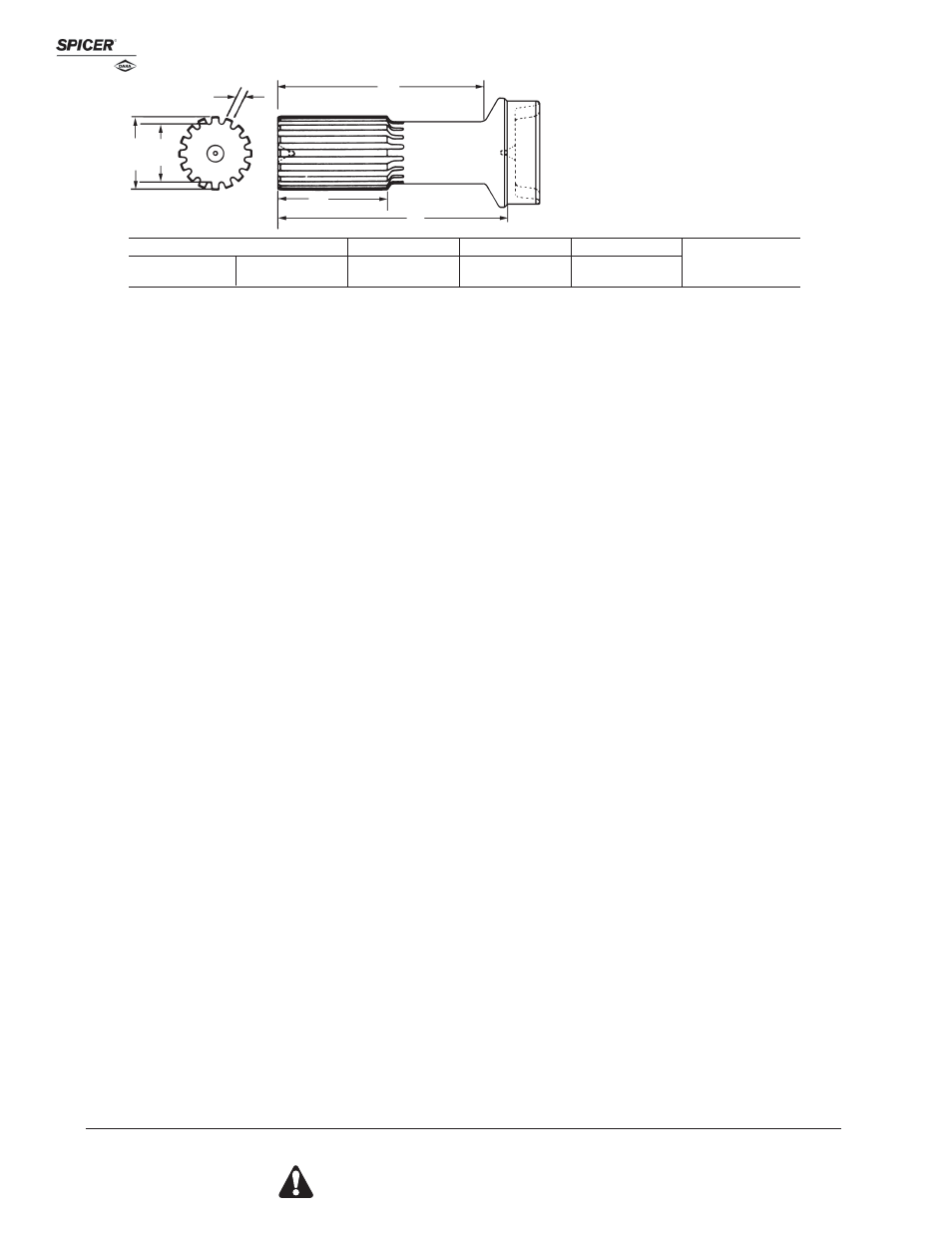

J300P-7 Slip Tube Shafts
Width
Minor
Dia.
Major
Dia.
R
L
K
Note: Spline is Glidecote except where footnoted.
Fits Tube K L R
Diameter
Wall
Thickness
Length
of Spline
End of Spline
to Weld
End of
Spline to Radius
Spicer Part
Number
4 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued „ Part is available until supply is exhausted Ž Not sold separately
1.062-16 Spline
1.250
.095 4.281 1.750 4.000 1-42-31
1.250 .095 5.344 2.000 4.938 1-42-101•
Spline not Glidecoated
1.125-26 Involute Spline
2.500
.065 7.320 1.583 6.665 27-40-31•
1.148-26 Involute Spline
1.250
.095 4.438 2.000 4.188 10-40-11
Spline not Glidecoated
1.250-15 Based On 16 Spline
1.750
.065 4.469 2.000 3.938 2-40-1071 ƒ
1.250-16 Spline
1.250
.120 6.125 1.906 5.375 2-40-1771
1.750 .065 4.469 2.000 3.938 2-40-971
1.750 .095 5.969 2.000 5.438 2-40-2241
2.000 .083 6.000 2.000 5.406 2-40-1741
2.000 .120 6.000 2.000 5.406 2-40-2381
2.000 .120 7.625 2.500 7.031 2-40-2221 ƒ
2.500 .065 6.125 2.000 5.406 2-40-2211
2.500 .065 6.125 3.625 5.406 2-40-2481•
2.500 .065 7.750 2.500 7.031 2-40-2301•
1.290-20 Involute Spline
3.500
.065 7.880 3.500 6.880 2-40-02972
3.500 .065 7.880 3.500 6.880 5002972•
5002972 was replaced by 2-40-02972
1.312-19 Based On 20 Involute Spline
2.000
.120 6.913 3.500 6.338 5001930•
5001930 was replaced by 2-40-01930
2.000 .120 6.913 3.500 6.338 2-40-01930
2.500 .083 7.530 3.500 6.840 2-40-2841
3.500 .065 7.880 3.500 6.880 5001918 ƒ
5001918 will be replaced by 2-40-01918 when supply is exhausted
3.500 .065 7.880 3.500 6.880 2-40-01918
1.375-15 Based On 16 Spline
2.500
.095 7.531 3.625 6.812 2-40-2791•
2-40-2791 was replaced by 2-40-2461
1.375-16 Spline
1.250
.095 5.090 2.750 4.690 2-42-581
1.250 .188 8.125 3.625 7.640 2-40-2781•
1.750 .095 7.750 3.625 7.240 2-40-2681
2.000 .083 5.188 2.250 4.625 2-40-1031
2.000 .083 6.188 2.250 5.625 2-40-2451
2.000 .083 6.562 2.125 6.000 2-40-1841
2.000 .120 5.188 2.250 4.625 2-40-2021
2.000 .120 6.188 2.250 5.625 2-40-1701
2.000 .120 6.188 3.625 5.625 2-40-2441
2.000 .120 6.190 2.250 5.620 2-40-2851•
.310 x 30 degree chamfer on spline end
2.000 .120 7.906 3.625 7.328 2-40-2661
