J300P-7 SPLINED MIDSHIP TUBE SHAFTS
Slip Yoke Design For Use with Outboard Slip Yokes
Note: Spline is Glidecote except where footnoted.

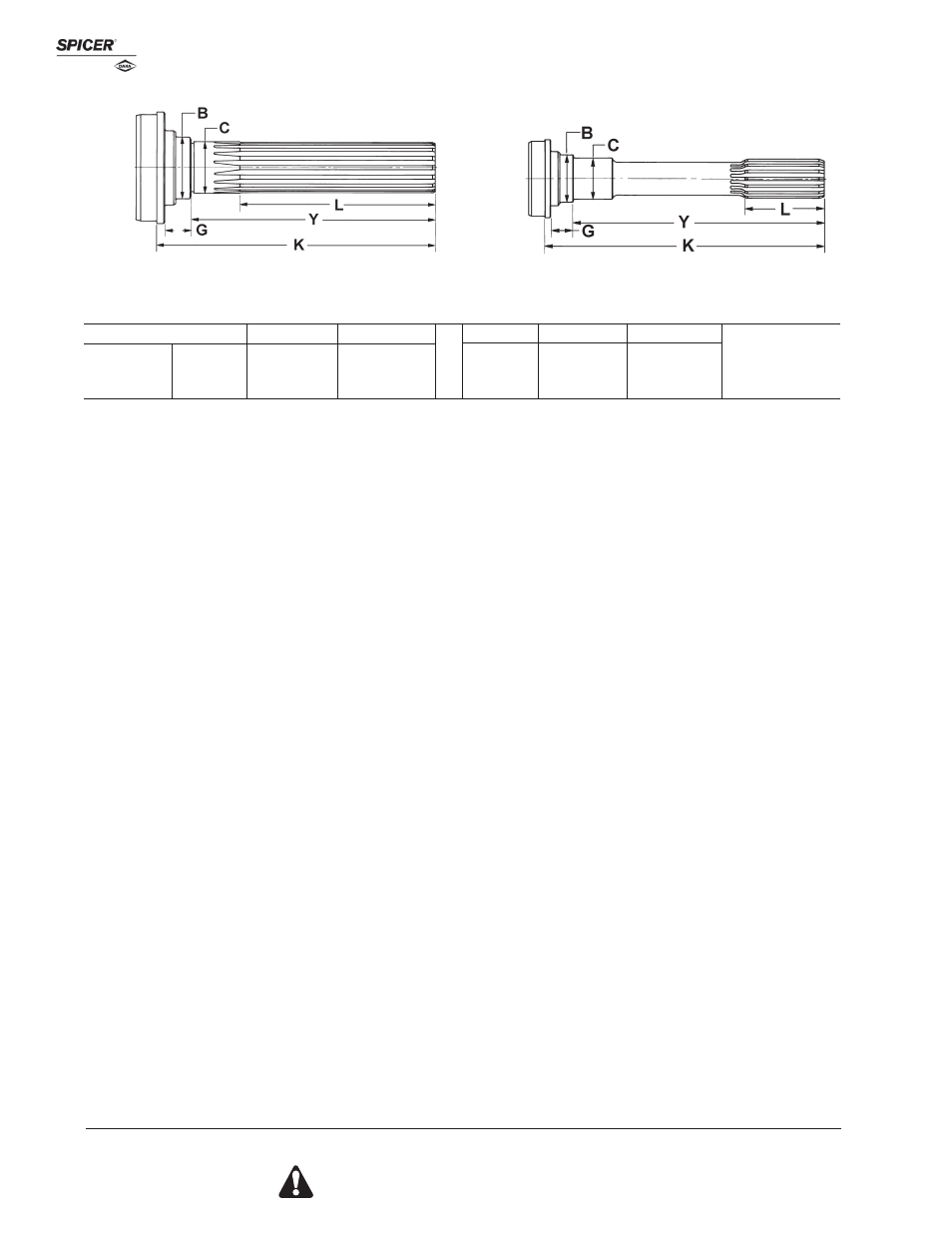

Style 2
L K S
t
y
l
e
Y B G Midship
Tube Shaft
Part
Number
Tube
Diameter
Wall
Thickness
Fits Tube
End of Spline
to Bearing
Shoulder
End of Spline
to Point of
Weld
Length
of
Spline
Shoulder
Diameter Length of
Shoulder
12 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued „ Part is available until supply is exhausted Ž Not sold separately
Style 1
1.3120-19 Based On 20 Involute Spline
1.575 Bearing Diameter (C)
3.000 .065 6.851 7.466 2 3.500 1.800 .375 2-53-1441
May use boot 212094X, order separate
3.000 .083 6.850 7.598 2 3.500 1.690 .500 2-53-03448
May use boot 212094X, order separate
3.000 .083 6.850 7.598 2 3.500 1.690 .500 5003448•
5003448 was replaced by 2-40-03448; May use boot 212094X, order separate
1.3750-15 Based On 16 Spline
1.378 Bearing Diameter (C)
2.500 .083 7.406 8.469 2 2.500 1.688 .812 2-53-921
2.500 .083 7.812 8.875 2 2.500 1.688 .812 2-53-681
3.000 .065 7.812 8.875 2 2.500 1.688 .812 2-53-691
3.000 .083 7.969 9.031 2 2.500 1.688 .812 2-53-711
May use boot 211916X or dust cap 211121X, order separate
3.000 .083 8.480 9.540 2 3.500 1.688 .810 2-53-1511
May use boot 211932X, order separate
1.3750-16 Spline
1.378 Bearing Diameter (C)
2.000 .083 5.969 7.281 1 4.438 1.688 .812 2-53-121
2.000 .083 6.938 8.250 1 5.406 1.688 .812 2-53-511
2.500 .065 6.938 8.000 1 5.406 1.688 .812 2-53-531•
2.500 .083 5.969 7.031 1 4.438 1.688 .812 3-53-211•
2.500 .083 6.750 8.094 1 4.969 1.719 1.125 3-53-1351
2.500 .083 6.938 8.000 1 5.406 1.688 .812 2-53-471
3.000 .065 6.938 8.000 1 5.406 1.688 .812 2-53-491
3.000 .083 6.750 8.094 1 4.969 1.719 1.125 3-53-1361
3.000 .083 6.781 7.031 1 4.438 1.688 .812 3-53-1371
3.000 .083 6.938 8.000 1 5.406 1.688 .812 2-53-501
3.000 .083 7.848 8.908 2 2.500 1.688 .812 2-53-1131
3.500 .065 6.750 8.094 1 4.969 1.719 1.125 3-53-1381•
1.3750-31 Based On 32 Involute Spline
1.378 Bearing Diameter (C)
3.500 .083 7.469 8.812 2 3.344 1.719 1.125 3-53-1301•
Spline not Glidecoated
1.3760-31 Based On 32 Involute Spline
1.378 Bearing Diameter (C)
2.750 .065 7.469 8.812 2 3.344 1.719 1.125 3-53-1991
3.000 .083 7.469 8.812 2 3.344 1.719 1.125 3-53-1181
