43

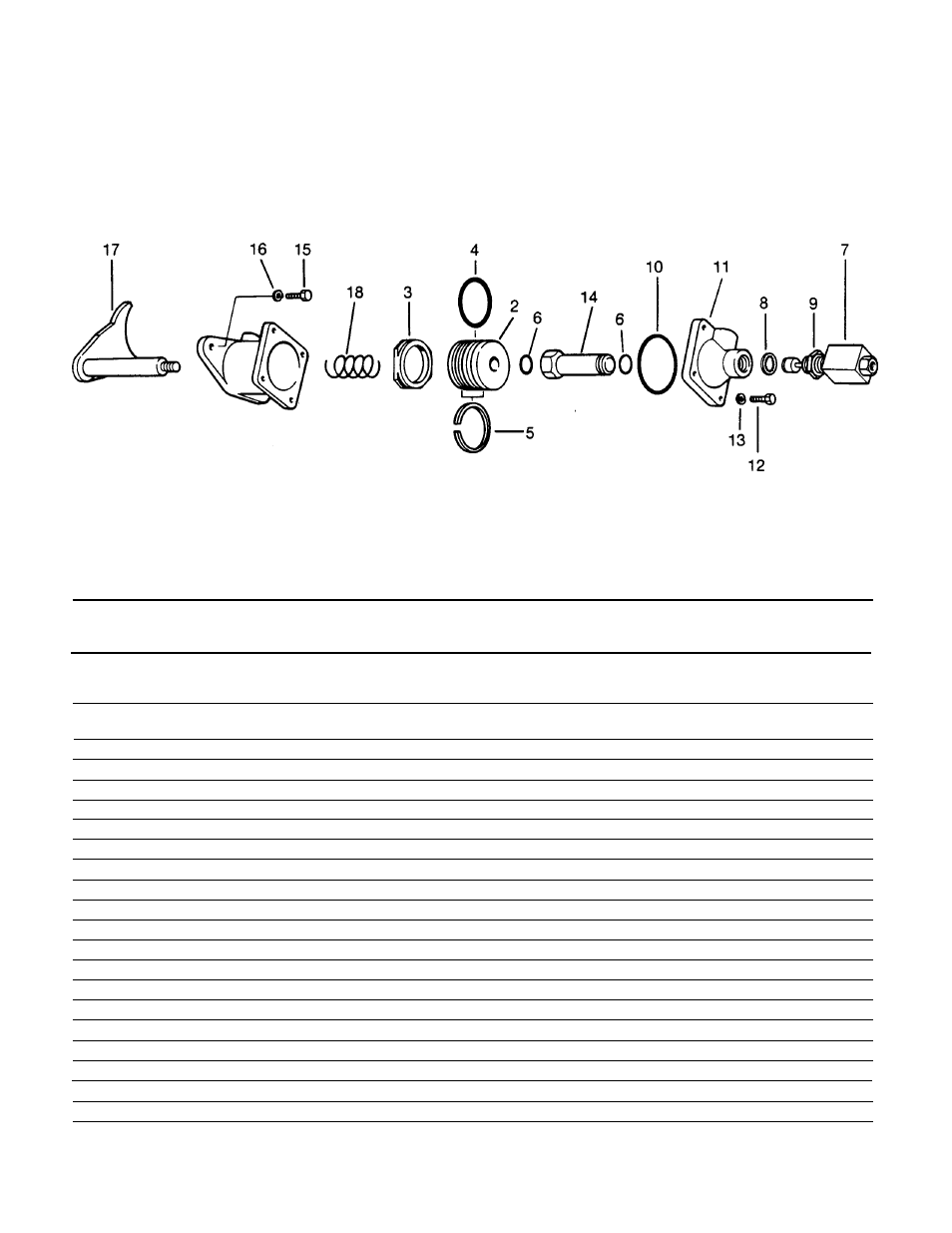

Lockout Shift Unit
Dual Range
Qty. DT DT
Item per 3416-P, 386-P 446-P, 466-P,
No. Part Name Axle 4026-P, 406-P 4616-P, 5216-P
Air-Operated Lockup Shift 1 113583 113586
Unit Assy
Includes Items 1-18
LOCKUP BODY KIT 1 118357 118409
Includes Items 1-11
1 Shift Cylinder Body 1 32828 32828
2 Shift Cylinder Piston 1 32834 32834
3 Piston Stop 1 102616 —
4 Piston Grommet 1 32832 32832
5 Piston Felt Oiler 2 96916 96916
6 Push-Rod Grommet 2 32826 32826
7 Valve Assembly (Includes 8-9) 1 113534 113534
8 Star Washer 1
9 Nut 1
10 Cover Grommet 1 60817 60817
11 Body Cover 1 113529 113529
12 Cover Cap Screw 4 79363 79363
13 Lockwasher 4 90419 90419
14 Hex Nut Piston 1 113530 113530
15 Body Cap Screw 2 90031 90031
16 Lockwasher 2 90415 90415
17 Shift Fork Assy 1 102613 103529
18 Compression Spring 1 31038 31038
Gasket Compound AR 107276 107276
