34
Single Reduction
Single Reduction

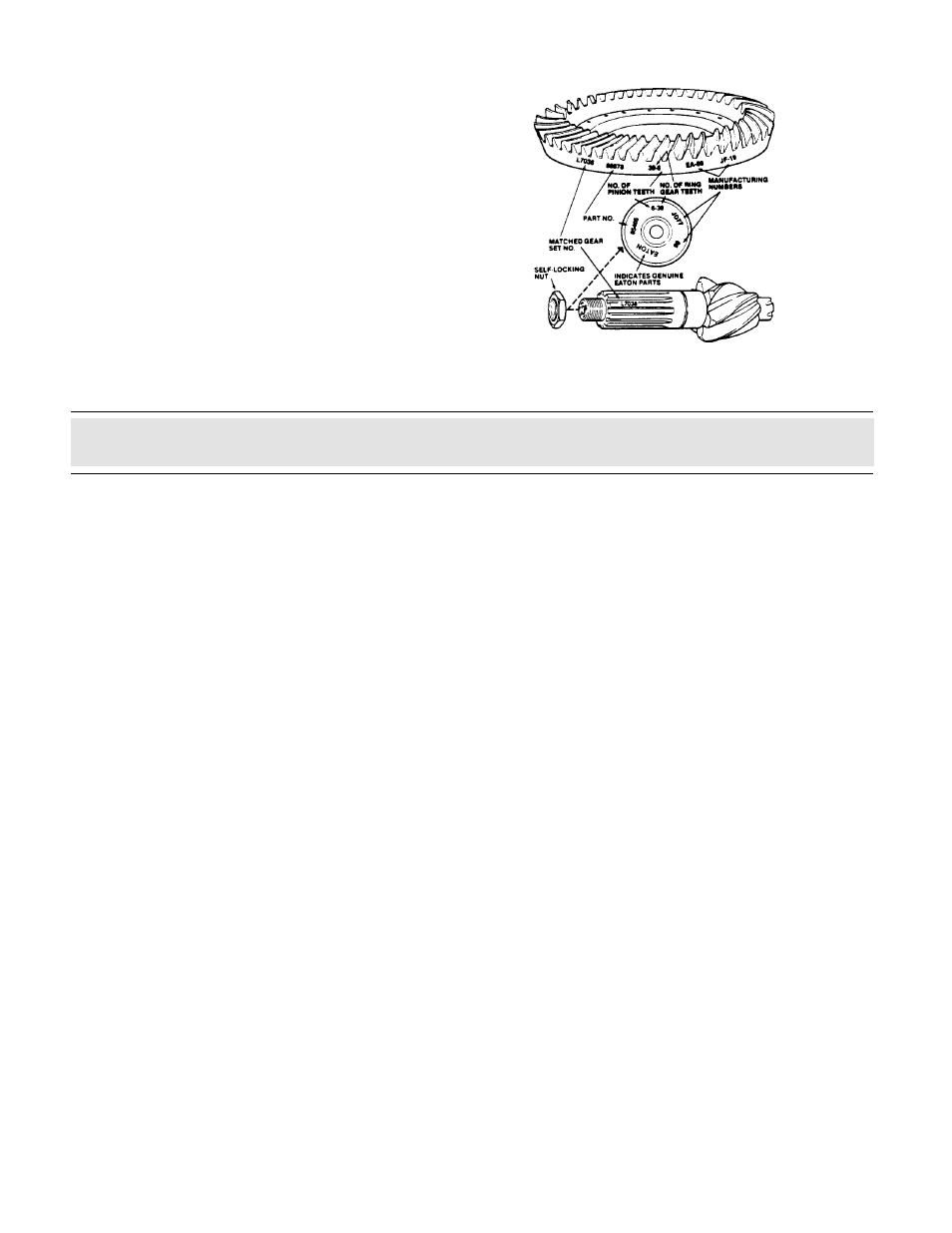

Ring Gear and Pinion Identification
Ring Gear and Drive Pinion are
matched parts and must be replaced
in sets.
Complete identification is stamped
on both parts shown in the adjacent
drawing.
Order by
6SLFHU
“Set No.” which includes
drive pinion nut.
Drive Pinion and Gear Set
Single Reduction
Ratio Gear Set Gear (NSS) Pinion (NSS) Ratio Gear Set Gear (NSS) Pinion (NSS)
Forward Axles Rear Axles
DS341-P, DS386-P, DS4026-P, DS406-P RS3416, RS386, RS4026, RS406
3.36* 120761 120042 (37T) 120041 (11T) 3.36* 120763 120045 (37T) 120044 (11T)
3.55* 113155 109867 (39T) 111271 (11T) 3.55* 111501 109862 (39T) 111466 (11T)
3.70* 113156 88000 (37T) 111272 (10T) 3.70* 111502 88013 (37T) 111467 (10T)
3.90 113157 99742 (39T) 111273 (10T) 3.90 111503 99746 (39T) 111468 (10T)
4.11 113158 86356 (37T) 111274 ( 9T) 4.11 111504 86372 (37T) 111469 ( 9T)
4.33 113159 86358 (39T) 111275 ( 9T) 4.33 111505 86374 (39T) 111470 ( 9T)
4.56 113160 86360 (41T) 111276 ( 9T) 4.56 111506 86376 (41T) 111471 ( 9T)
4.88 113161 86362 (39T) 111277 ( 8T) 4.88 111507 86378 (39T) 111472 ( 8T)
5.29 113162 86364 (37T) 111278 ( 77) 5.29 111508 86380 (37T) 111473 ( 7T)
5.57 113163 86366 (39T) 111279 ( 77) 5.57 111509 86880 (39T) 111474 ( 7T)
6.14 113164 86877 (43T) 111280 ( 77) 6.14 111510 86881 (43T) 111475 ( 7T)
6.50 113165 86878 (39T) 111281 ( 6T) 6.50 111511 86882 (39T) 111476 ( 6T)
7.17 113166 86879 (43T) 111282 ( 6T) 7.17 111512 86883 (43T) 111477 ( 6T)
DS446-P, DS466-P RS446, RS466
3.70
95576
78852 (37T) 78831 (10T) 3.70
98099
52995 (37T) 53166 (10T)
3.90
104520
104370 (39T) 104371 (10T) 3.90
104532
104382 (39T) 104383 (10T)
4.11
104521
104372 (37T) 104373 ( 9T) 4.11
104533
40284 (37T) 104385 ( 9T)
4.33
104522
104374 (39T) 104375 ( 9T) 4.33
104534
46386 (39T) 104387 ( 9T)
4.62
104523
104376 (37T) 104377 ( 8T) 4.62
104535
104388 (37T) 104389 ( 8T)
4.88
95580
78860 (39T) 78839 ( 8T) 4.88
98103
53001 (39T) 52815 ( 8T)
5.29
104524
104378 (37T) 104379 ( 7T) 5.29
104536
104390 (37T) 104391 ( 7T)
6.17
104525
104380 (37T) 104381 ( 6T) 6.17
104537
39592 (37T) 104393 ( 6T)
DS4616-P, DS5216-P RS4616, RS5216
3.55 122667 126675 (39) 126679 (11) 3.55 122668 111349(39) 126677 (11)
3.70 122334 98160 (37) 126161 (10) 3.70 121887 88500 (37) 126120 (10)
3.90 123333 99900 (39) 127047 (10) 3.90 123334 99896 (39) 127048 (10)
4.11 122335 94381 (37) 126162 ( 9) 4.11 121888 88502 (37) 126121 ( 9)
4.33 122336 78856 (39) 126163 ( 9) 4.33 121889 52999 (39) 126118 ( 9)
4.56 122337 78858 (41) 126164 ( 9) 4.56 121890 73312 (41) 126125 ( 9)
4.88 122338 78860 (39) 126165 ( 8) 4.88 121891 53001 (39) 126119 ( 8)
5.43 122339 78862 (38) 126166 ( 7) 5.43 121892 53003 (38) 126122 ( 7)
6.17 122340 78864 (37) 126167 ( 6) 6.17 121893 53005 (37) 126123 ( 6)
*16" dia gearing
