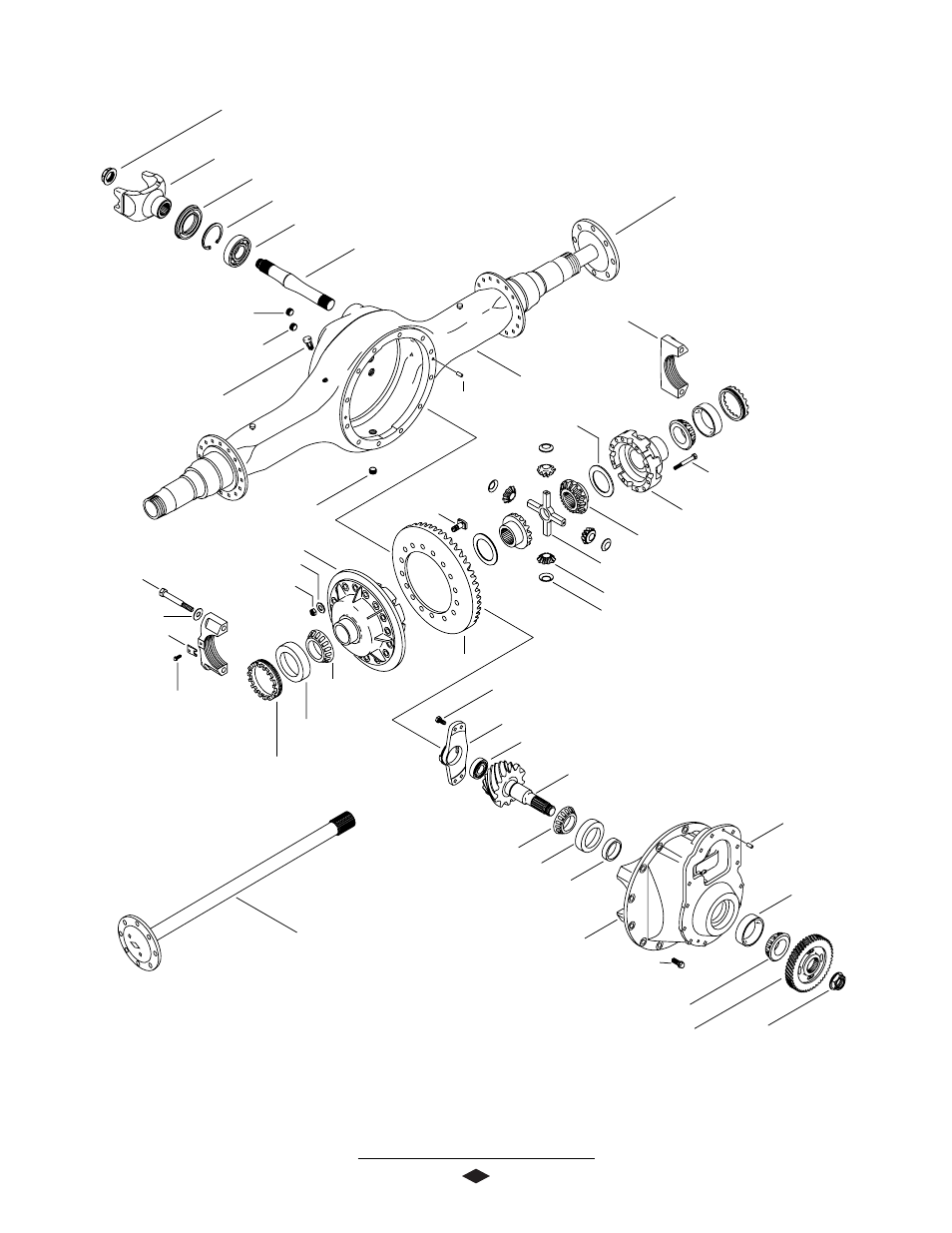

FORWARD REAR COMPONENTS
Pinion
Inner Pinion Bearing Cone
Axle Shaft
( Curbside )
Flat Washer
Nut
(300-320 Lb-Ft)
(407-434 N-m)
Ring Gear Bolt
Axle Housing
Differential Side Bearing Cap
Differential Side Gear
Differential Cross Shaft
Differential Pinion Mate
Differential Pinion Mate
Thrust Washer
Ring Gear
Temperature Sensor Plug
(35-45 Lb-Ft)
(47-61 N-m)
Fill Plug
(35-45 Lb-Ft)
(47-61 N-m)
Output Oil Seal
Output Shaft
Beveled Retaining Ring
Output Shaft Bearing
Flanged Hex Nut
(900-1,200 Lb-Ft)
(1,220-1,627 N-m)
Differential
Bearing Cap Bolt
(295-340 Lb-Ft)
(400-461 N-m)
6
Dowel Pin
Magnetic
Drain Plug
(35-45 Lb-Ft)
(47-61 N-m)
Flat Washer
Differential Case Flange Half
Dowel Pin
Axle Shaft
( Roadside )
Carrier Mounting Bolt
(240-260 Lb-Ft)
(325-353 N-m)
Outer Pinion Bearing Cone
Helical Driven Gear Flanged Hex Nut
(900- 1200 Lb-Ft)
(1,220-1,627 N-m)
Outer Pinion
Bearing Cup
Carrier Housing
Pinion Bearing Spacer
(selective)
Inner PinionBearing Cup
Pinion Pilot Bearing Cap
Pinion Pilot Bearing
Hex Bolt (150 Max. Lb-Ft)
(203 Max. N-m) Adjusting Ring Lock Bolt
(30-40 Lb-Ft)
(41-54 N-m)
Adjusting
RingLock
Adjusting Ring
Differential
Bearing Cup
Differential
Bearing Cone
Differential Gear
Thrust Washer
Differential Case Bolt
(180-200 Lb-Ft)
(244-271 N-m)
Differential Case Cap Half
Vent Plug
Output Yoke Assembly
