NOTE: Alkaline type solutions may cause
damage to machined surfaces and should be avoided.
3. Stake pilot bearing in nine places using a center
punch or equivalent tool.
See Figure 13.
4. Press inner and outer bearing cups into the carrier
until seated. Use a feeler gauge (.0015 inch) to
make sure that bearing cups are fully seated in
bearing bores. Apply hypoid gear lubricant to both
cup and cone.
See Figure 14.

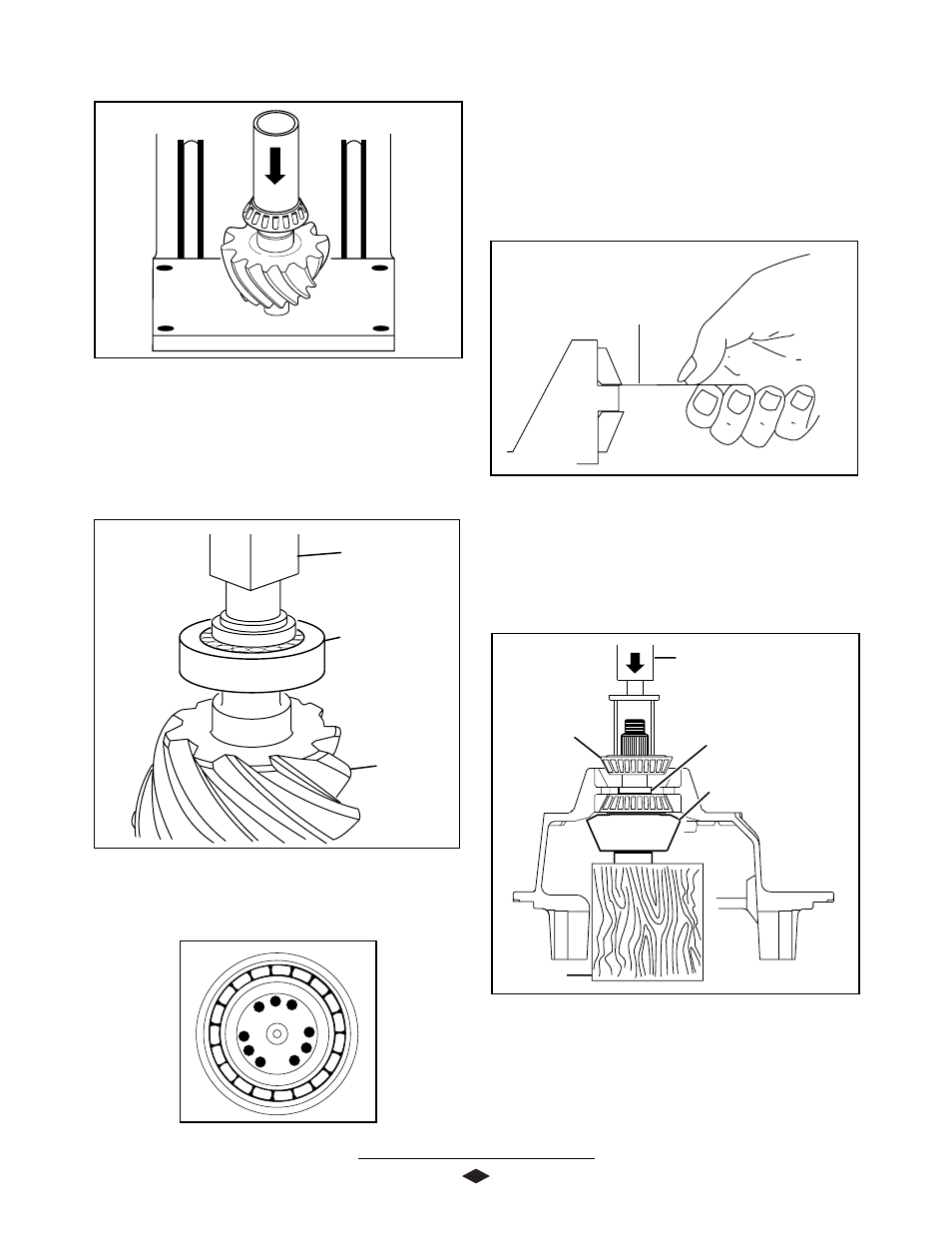

PINION ASSEMBLY
FFFFFigur igur igur igur igure 1 e 1 e 1 e 1 e 11 1 1 1 1
FFFFFigur igur igur igur igure 1 e 1 e 1 e 1 e 13 3 3 3 3
Feeler Gauge
FFFFFigur igur igur igur igure 1 e 1 e 1 e 1 e 14 4 4 4 4
1. Press inner bearing cone onto pinion. See
Figure 11.
2. Press pinion pilot bearing onto the pinion. See
Figure 12.
NOTE: Chamfer side of bearing faces the pinion head.
FFFFFigur igur igur igur igure 1 e 1 e 1 e 1 e 12 2 2 2 2
Pinion Pilot Bearing
Press
Pinion
Press
Outer Pinion
Bearing
Pinion
Bearing Preload Spacer
FFFFFigur igur igur igur igure 1 e 1 e 1 e 1 e 15 5 5 5 5
Wood Block
16
NOTE: After installing pinion bearing and or helical
gear, pinion shaft should be turned at least 8 rotations
to assure proper alignment of bearing rollers.
