Adventurer Pro EN-7
2.2.2 Assembly of Models AV64, AV114, AV213, AV264, AV313, AV413,
AV513C, AV53C (Cont.)
6. Install the top door panel.
• Insert the top door in the Draft Shield by holding the door vertically over the top of
the Draft Shield framework, as shown.
• Position the back edge of the door so that it lines up with two small hinges located
on the rear cross-member.
• Gently press the door on to the hinges, until it snaps into place.
• Tilt the door forward to close.

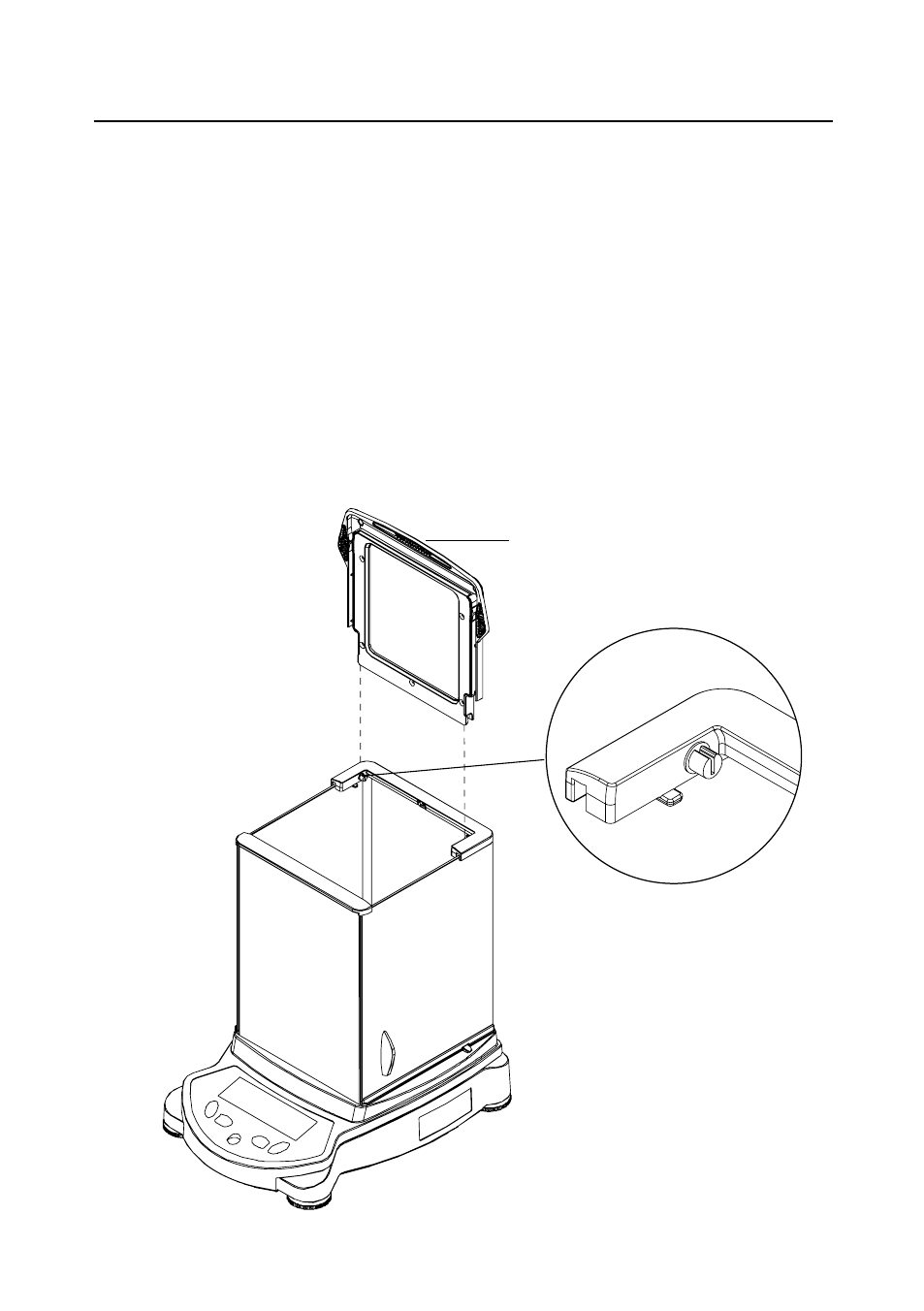

Close-up view of recessed hinge on
Draft Shield cross-member
Top Door
