Adventurer Pro EN-6
2.2.2 Assembly of Models AV64, AV114, AV213, AV264, AV313, AV413,
AV513, AV53C (Cont.)

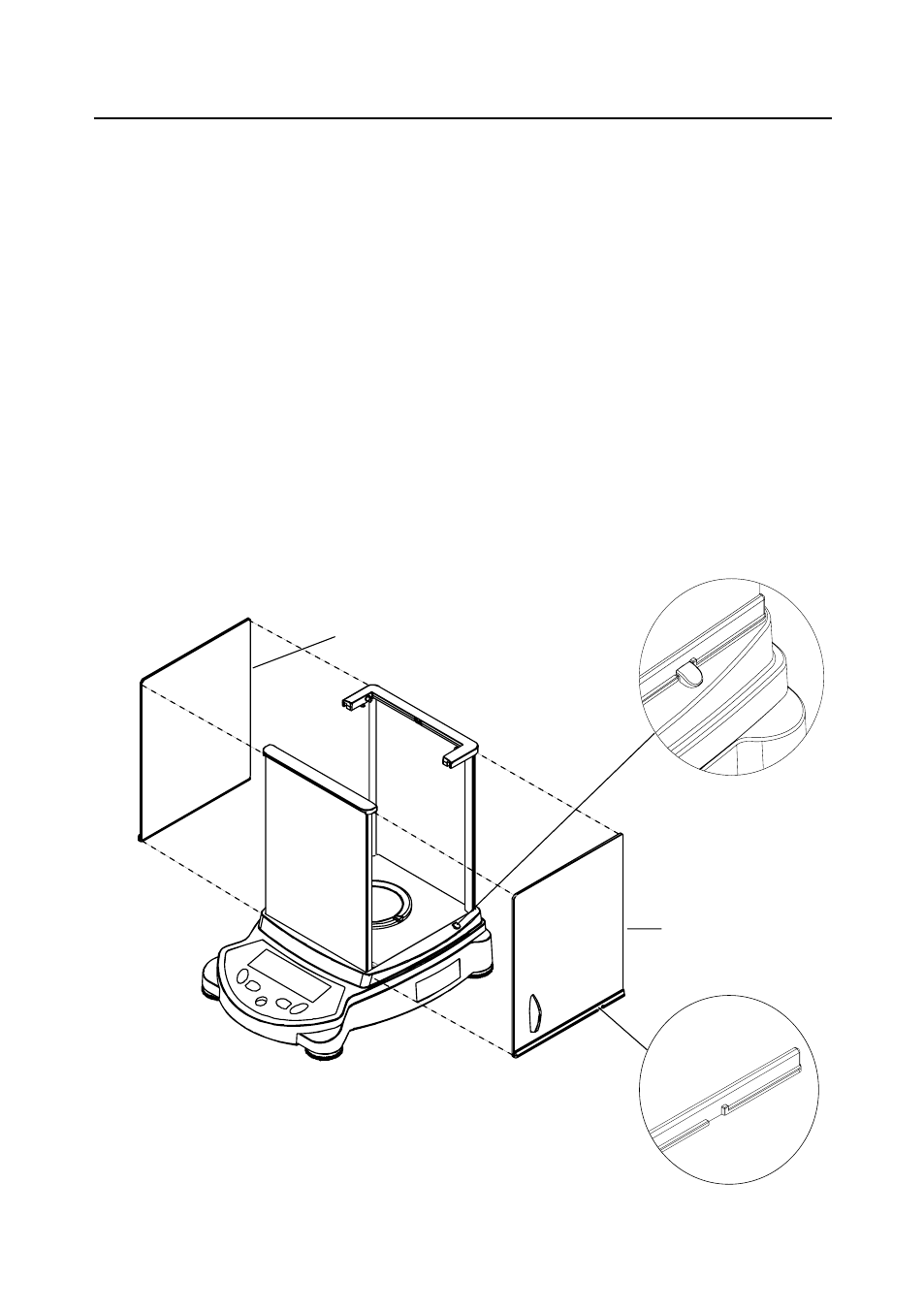

4. Install the glass doors in the sides of the Draft Shield framework.
Note: The glass doors must be inserted in the Draft Shield framework before inserting the top door;
likewise, you must remove the top door before you remove the side doors.
• Hold and position each door so that the handle is near the front of the balance and
the small notch on the bottom edge of the door is lined up with the tab that protrudes
from the side of the balance housing (shown below).
• Insert the top edge of the glass door into the recessed area under the top cross-
member of the Draft Shield framework.
• Slide the notch on the bottom edge over the tab and slip the door in place.
5. The door may now be opened by sliding it toward the back of the balance.
Close-up of Notch
Close-up of Tab
Right Door
Left Door
