2.2.2 Assembly of Models AV64, AV114, AV213, AV264, AV313, AV413,
AV513C, AV53C
Note: Assembly instructions also apply to models with the suffix C, CR, CU, R or U.
1. Insert the Platform Assembly on the Mounting Cone in the center of the balance.
2. Carefully remove each of the five (5) glass Draft Shield sections from its packing.
You will note that two (2) of these are plain, two (2) contain handles, and the
other is set in a plastic frame. These sections or panels comprise the front and rear,
side doors, and top (respectively) of the Draft Shield. The Draft Shield contains
four (4) upright posts and two (2) cross-members which act as a framework for
insertion of the panels.
3. Install the plain glass panels to form the front and rear of the Draft Shield.
• Select a plain glass panel and insert the bottom edge of the glass in the
recessed slot in front of the balance, as shown.
• As you push the top edge of the glass panel toward the cross-member, reach
inside the top of the framework and depress the small clip located under the
cross-member.
• Press the glass panel into the framework until you feel the glass slip into place.
• Release the clip when the glass panel is fully inserted.
• Repeat these steps to install the other plain glass panel on the opposite side of
the framework.

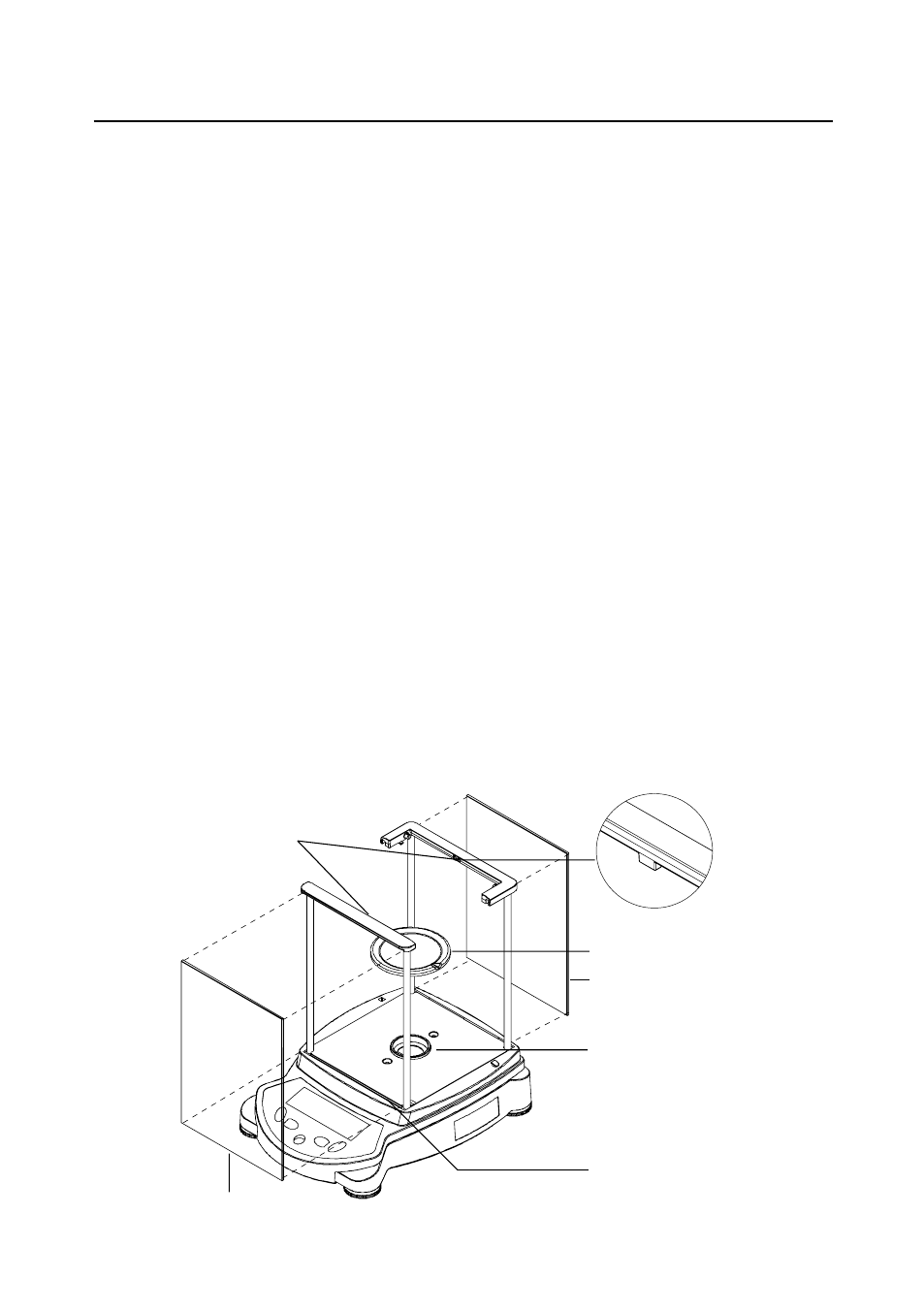

Glass Front
Platform Assembly
Mounting Cone
Recessed Slot
Close-up of Clip
Clip Locations
Glass Rear Panel
