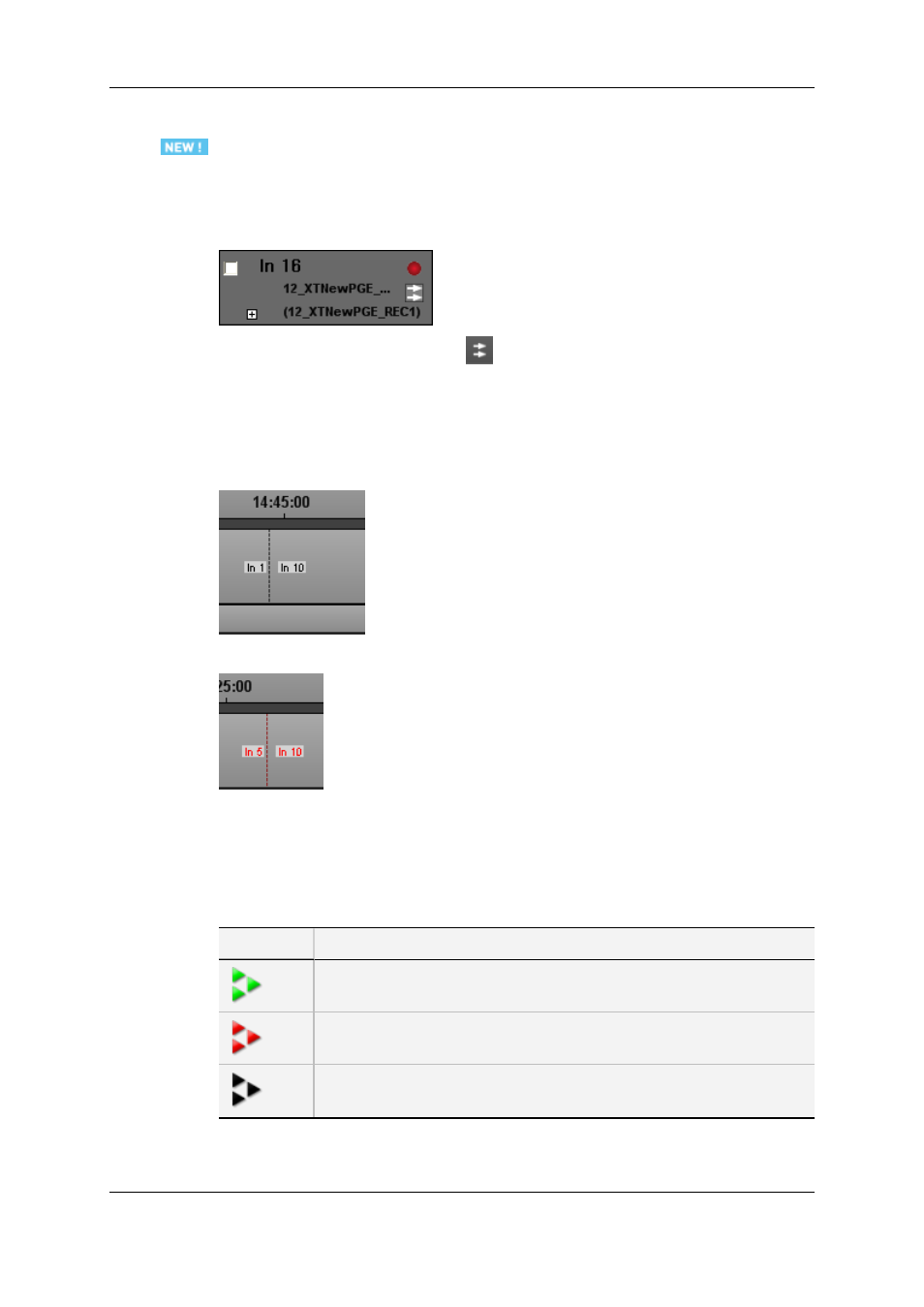

Display in Case of Use with a Video Router
When a recorder channel is connected to an OUT port of a video router, itself associated
to an IN port, the name of the router IN port is displayed next to the recorder channel
name.
The Change Recorder Input button is displayed in the area when the recorder
channel is physically linked to a video router. It allows users to change the assigned router
IN port.
See section "Managing the Links with a Video Router" on page 21.
The switch of the router IN port associated to a recorder channel is represented by a
vertical dotted line in the channel track, at the timecode when it occured:
If the switch operation failed, a warning is displayed as follows:
2.3.2. Stream Icons
The icon linked to a stream can be displayed with different colors. Their meaning is
explained in the following table:
Icon Description
On-line stream (green)
Recording stream (red)
Off-line stream (black)
