14 Rev. 5
Installation
Low-Current, High-Resolution 4-Quadrant Supply
2.5.1 Low-Current, High-Resolution 4-Quadrant Supply
For this four-quadrant low-current power supply system, components
include a Model 430 Programmer, a Model 4Q1005PS low-current four-
quadrant power supply, and associated interconnecting cabling. Figure 2-2
on page 15 and Figure 2-1 illustrate the interconnects for the Model
4Q1005PS-430 low-current integrated power supply system.
Note
Due to continuous discharge power limitations present in the BOP
series supplies, for maximum safety AMI limits both the charging
and discharging voltage, via the Model 430 Programmer, to a
maximum of 10 volts.
Caution
Do not overtighten the hardware on the interconnection terminals
(refer to specifications table on page 8 for torque limits).
Overtightening can result in damage to the terminals.
Refer to Figure 2-2 on page 15. Ensure the cabling is connected in the
following manner:
a. Connect the OUT power supply terminal (1) to the positive magnet
current lead (2).

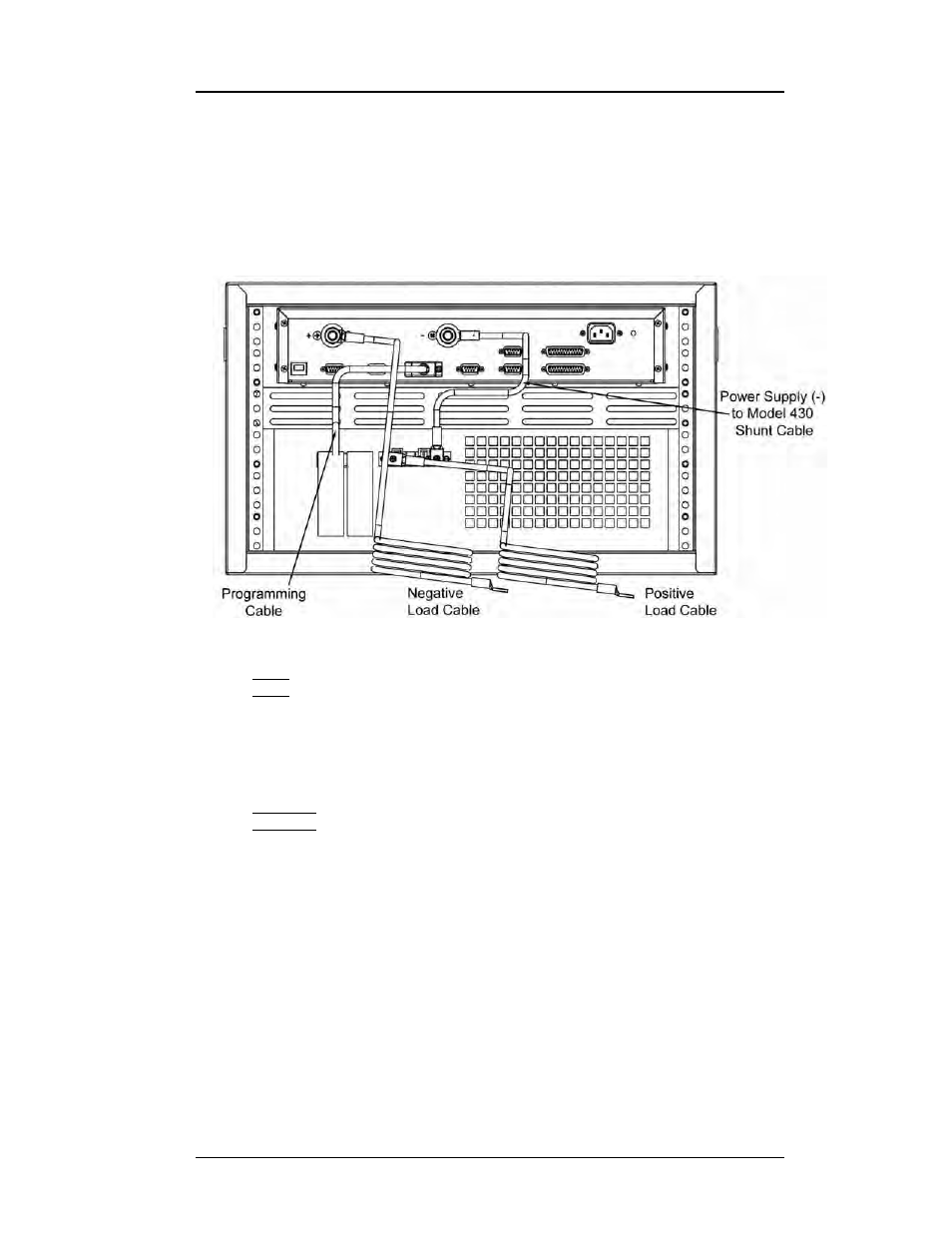

Figure 2-1. Typical Model 4Q1005PS-430 System Rack Interconnections
