The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.

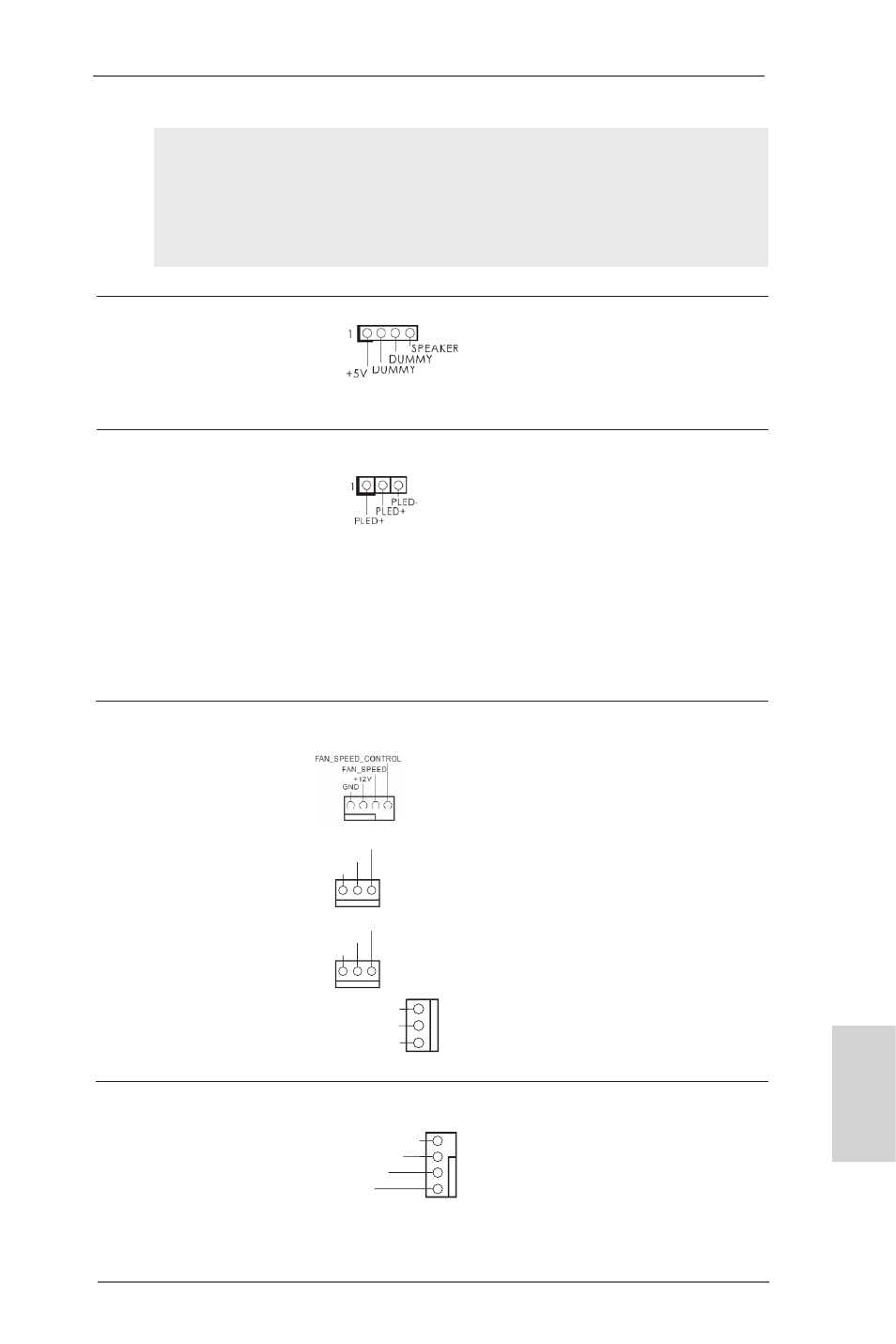

Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.2, No. 22)
Power LED Header Please connect the chassis
(3-pin PLED1) power LED to this header to
(see p.2, No. 18)
indicate system power status.
The LED is on when the system
is operating. The LED keeps
blinking in S1/S3 state. The
LED is off in S4 state or S5
state (power off).
Chassis and Power Fan Connectors Please connect the fan cables
(4-pin CHA_FAN1) to the fan connectors and match
(see p.2, No. 23) the black wire to the ground pin.
CHA_FAN1, CHA_FAN2 and
(3-pin CHA_FAN2) CHA_FAN3 supports Fan
(see p.2, No. 41) Control.
(3-pin CHA_FAN3)
(see p.2, No. 24)
(3-pin PWR_FAN1)
(see p.2, No. 9)
GND
+12V
FAN_SPEED
GND
+12V
FAN_SPEED
GND
+12V
FAN_SPEED
CPU Fan Connectors Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.2, No. 3) match the black wire to the
ground pin.
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND
4
2
3
1
