ASRock Z77 Extreme6/TB4 Motherboard
3
English

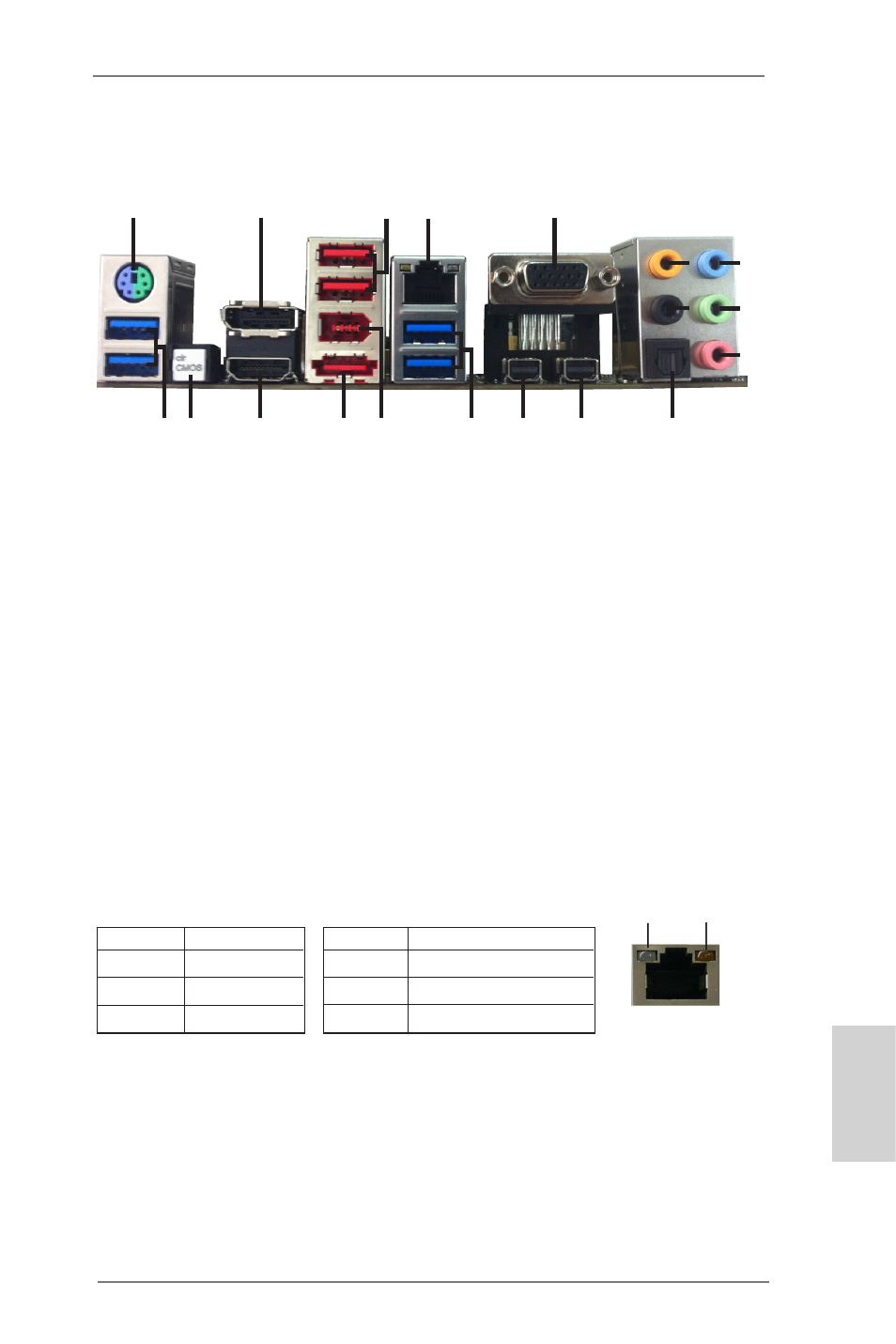

I/O Panel
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link
Green 1Gbps connection
1 PS/2 Keyboard/Mouse Port (Purple/Green)
* 2 DisplayPort Input (HDMI_DP_1)
3 USB 2.0 Ports (USB01)
** 4 LAN RJ-45 Port
5 D-Sub Port (VGA1)
6 Central / Bass (Orange)
7 Rear Speaker (Black)
8 Line In (Light Blue)
*** 9 Front Speaker (Lime)
10 Microphone (Pink)
11 Optical SPDIF Out Port
12 Thunderbolt Port (TBT1)
13 Thunderbolt Port (TBT2)
14 USB 3.0 Ports (USB3_23)
15 IEEE 1394 Port (1394)
**** 16 eSATA3 Connector
17 HDMI Port (HDMI1)
18 Clear CMOS Switch (CLRCBTN)
19 USB 3.0 Ports (USB3_01)
ACT/LINK
LED SPEED
LED
LAN Port
1 2 3 4 5
10
6
7
8
9
11 13 12 14 15 16 17 18 19
* DisplayPort Input for test only.
