ASRock Z77 Extreme6/TB4 Motherboard
37

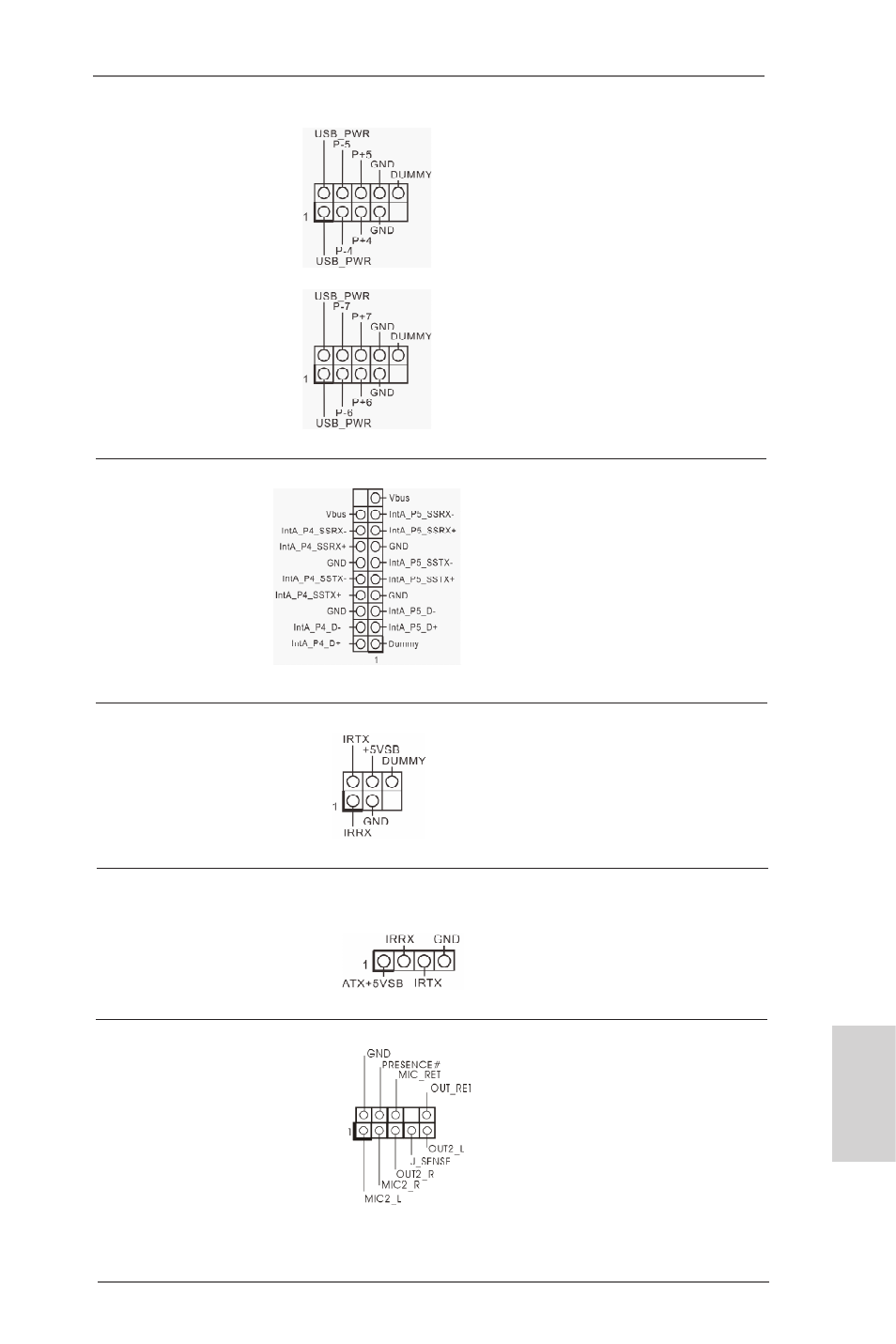

(9-pin USB4_5)
(see p.2, No. 26)
(9-pin USB6_7)
(see p.2, No. 27)
USB 3.0 Header Besides four default USB 3.0
(19-pin USB3_4_5) ports on the I/O panel, there is
(see p.2, No. 8) one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.2, No. 30) and receiving infrared module.
Consumer Infrared Module Header This header can be used to
(4-pin CIR1) connect the remote controller
(see p.2, No. 28) receiver.
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.2, No. 32) convenient connection and
control of audio devices.
