5
Fatal1ty P67 Professional Series Motherboard
English

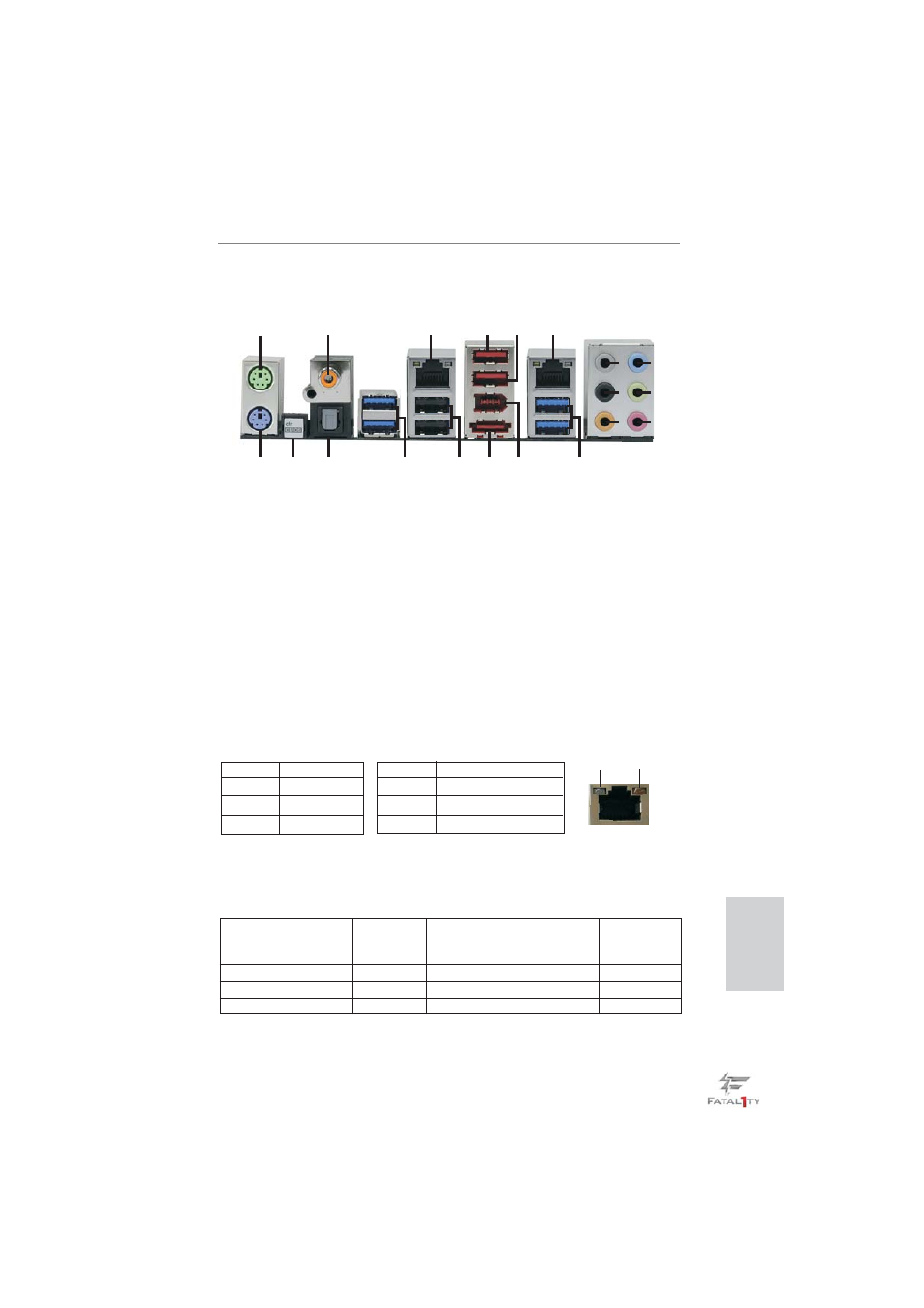

I/O Panel
* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker
(No. 11) (No. 8) (No. 9) (No. 7)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link
Green 1Gbps connection
1 PS/2 Mouse Port (Green) * 11 Front Speaker (Lime)
2 Coaxial SPDIF Out Port 12 Microphone (Pink)
* 3 LAN RJ-45 Port 13 USB 3.0 Ports (USB34)
4 Fatal1ty Mouse Port (USB4) 14 IEEE 1394 Port (IEEE 1394)
5 USB 2.0 Port (USB5) 15 eSATA3 Connector
* 6 LAN RJ-45 Port 16 USB 2.0 Ports (USB23)
7 Side Speaker (Gray) * 17 USB 3.0 Ports (USB12)
8 Rear Speaker (Black) 18 Optical SPDIF Out Port
9 Central / Bass (Orange) 19 Clear CMOS Switch (CLRCBTN)
10 Line In (Light Blue) 20 PS/2 Keyboard Port (Purple)
ACT/LINK
LED SPEED
LED
LAN Port
1 2 4 3 5 6
7
8
9
10
11
12
13 14 15 16 17 18 19 20
* If you want to install USB 3.0 device on this motherboard, we recommend to use USB 3.0
ports (USB12) as the fi rst priority to get better performance.
