ASRock Fatal1ty P67 Professional - Manual (Page 34)

34
Fatal1ty P67 Professional Series Motherboard
English

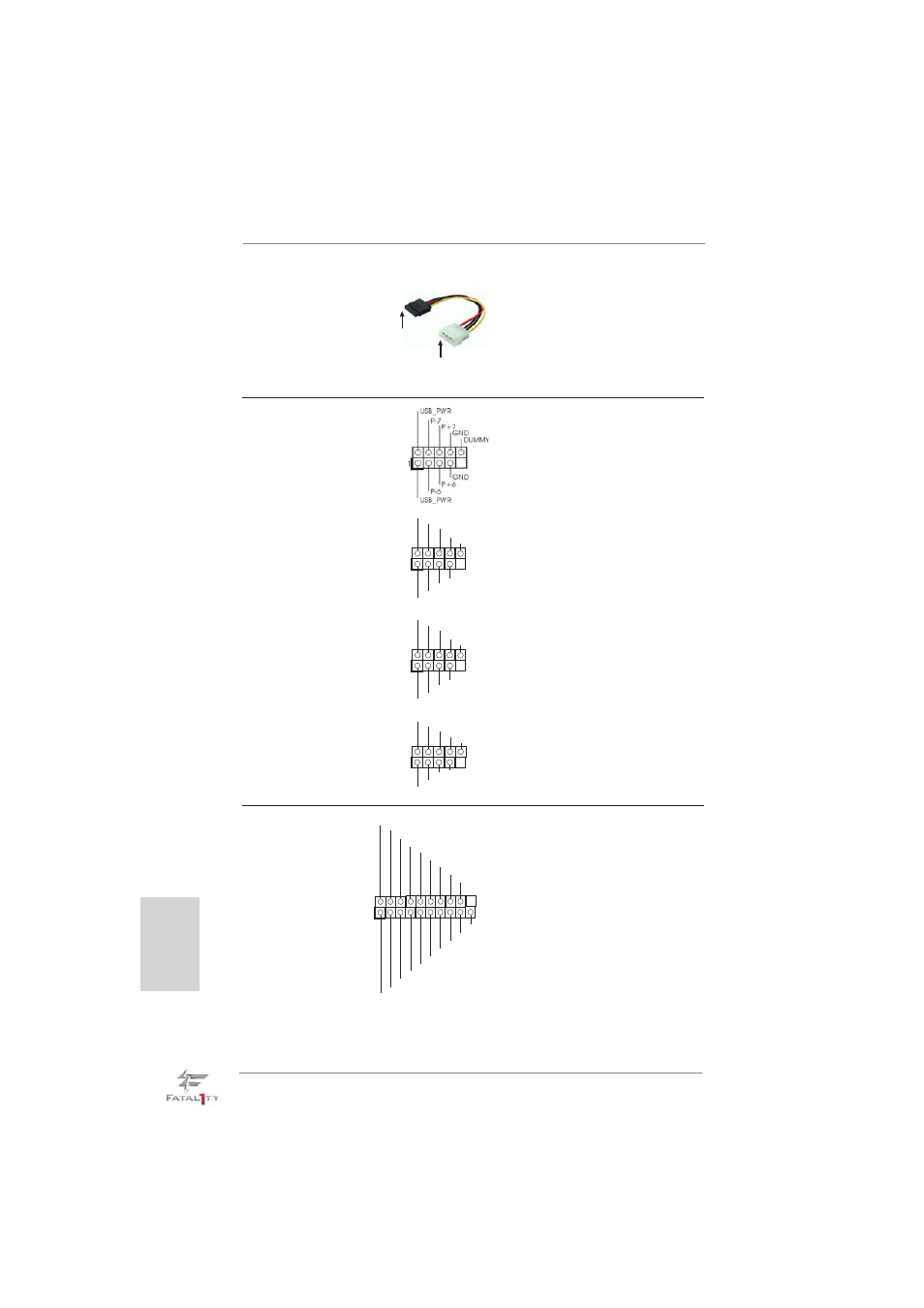

USB 3.0 Header Besides four default USB 3.0
(19-pin USB3_2_3) ports on the I/O panel, there is
(see p.4 No. 36) one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
1
ID
IntA_P1_D+
IntA_P1_D-
GND
IntA_P1_SSTX+
IntA_P1_SSTX-
GND
IntA_P1_SSRX+
IntA_P1_SSRX-
Vbus
IntA_P2_D+
IntA_P2_D-
GND
IntA_P2_SSTX+
IntA_P2_SSTX-
GND
IntA_P2_SSRX+
IntA_P2_SSRX-
Vbus
1
DUMMY
GND
P+13
P-13
USB_PWR
USB_PWR
GND
P+12
P-12
1
USB_PWR
P-8
GND
DUMMY
USB_PWR
P+8
GND
P-9
P+9
1
USB_PWR
P-10
GND
DUMMY
USB_PWR
P+10
GND
P-11
P+11
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB6_7) ports on the I/O panel, there
(see p.4 No. 35) are four USB 2.0 headers on
this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
(9-pin USB8_9)
(see p.4 No. 34)
(9-pin USB10_11)
(see p.4 No. 33)
(9-pin USB12_13)
(see p.4 No. 32)
connect to the SATA
HDD power connector
connect to the
power supply
Serial ATA (SATA) Please connect the black end
Power Cable of SATA power cable to the
(Optional) power connector on each drive.
Then connect the white end of
SATA power cable to the power
connector of the power supply.
