29
ASRock X79 Extreme4-M Motherboard
English

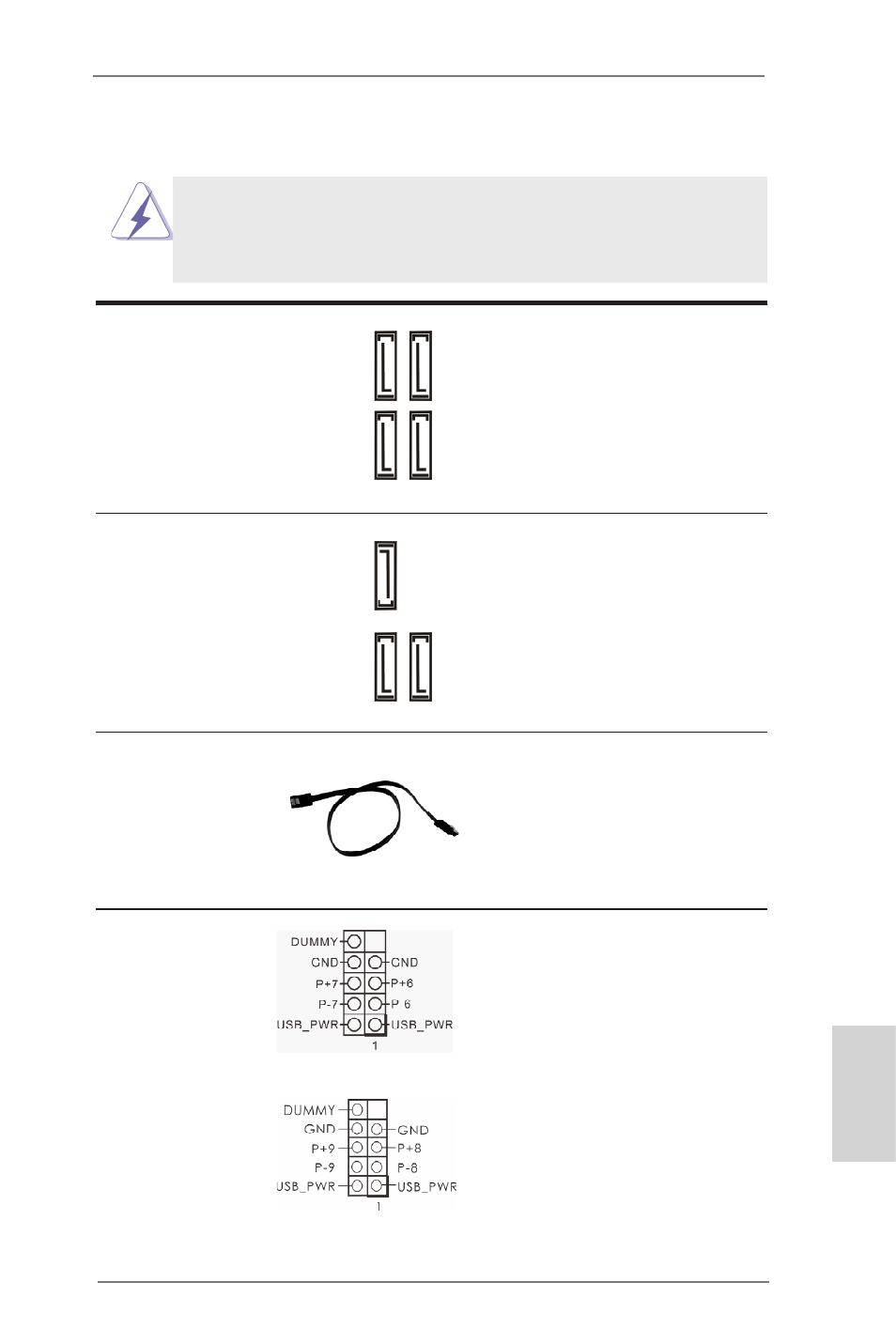

Serial ATAII Connectors These four Serial ATAII
(SATAII_0_1: see p.2, No. 20) (SATAII) connectors support
(SATAII_2_3: see p.2, No. 21) SATA data cables for internal
storage devices. The current
SATAII interface allows up to
3.0 Gb/s data transfer rate.
Serial ATA3 Connectors These three Serial ATA3
(SATA3_A0: see p.2, No. 13) (SATA3) connectors support
(SATA3_0_1: see p.2, No. 19) SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
SA
TAII_2 SA
TAII_0
SA
TAII_3 SA
TAII_1
SA
TA3_0 SA
TA3_A0
SA
TA3_1
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA / SATAII / SATA3 hard
disk or the SATAII / SATA3
connector on this motherboard.
2.11 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB_6_7) ports on the I/O panel, there
(see p.2 No. 16)
are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB_8_9)
(see p.2 No. 15)
