18
ASRock X79 Extreme4-M Motherboard
English
2.5 SLI TM and Quad SLI TM Operation Guide
This motherboard supports NVIDIA ® SLI TM and Quad SLI TM (Scalable Link Interface)
technology that allows you to install up to two identical PCI Express x16 graphics
cards. Currently, NVIDIA
® SLI TM technology supports Windows ® XP / XP 64-bit /
Vista TM / Vista TM 64-bit / 7 / 7 64-bit OS. NVIDIA ® Quad SLI TM technology supports
Windows ® Vista TM / Vista TM 64-bit / 7 / 7 64-bit OS only. Please follow the installation
procedures in this section.
Requirements
1. For SLI TM technology, you should have two identical SLI TM -ready graphics
cards that are NVIDIA ® certified. For Quad SLI TM technology, you should
have two identical Quad SLI TM -ready graphics cards that are NVIDIA ®
certified.
2. Make sure that your graphics card driver supports NVIDIA ® SLI TM
technology (driver version 280.41 and later). Download the driver from
NVIDIA ® website (www.nvidia.com).
3. Make sure that your power supply unit (PSU) can provide at least the
minimum power required by your system. It is recommended to use
NVIDIA ® certified PSU. Please refer to NVIDIA ® website for details.
2.5.1 Graphics Card Setup
2.5.1.1 Installing Two SLI TM -Ready Graphics Cards

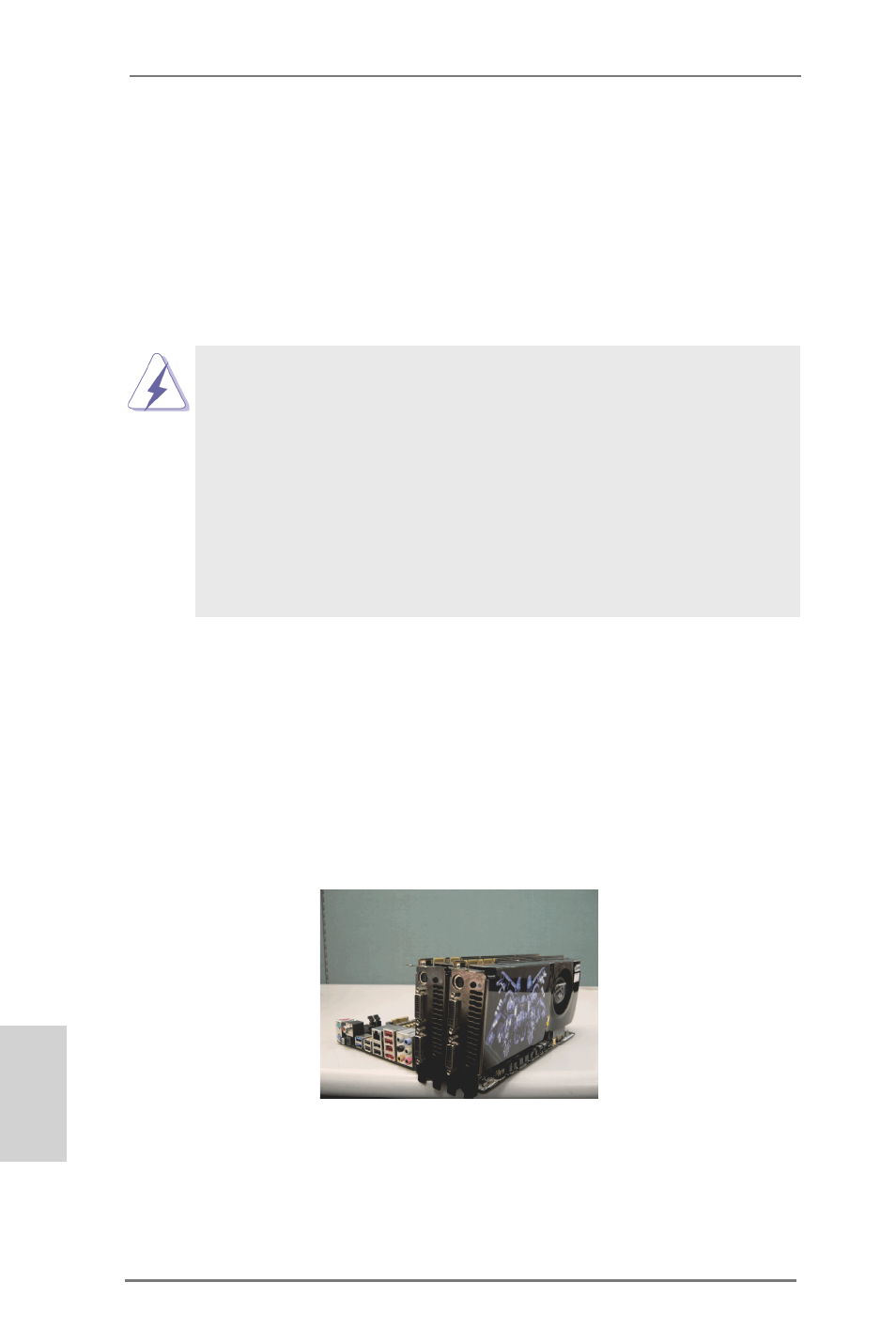

Step 1. Install the identical SLI TM -ready graphics cards that are NVIDIA ® certified
because different types of graphics cards will not work together properly.
(Even the GPU chips version should be the same.) Insert one graphics
card into the PCIE1 slot and the other graphics card into the PCIE3 slot.
Make sure that the cards are properly seated on the slots.
Step2. If required, connect the auxiliary power source to the PCI Express
graphics cards.
