Acura 2011 TSX - Manual (Page 297)

Fuses Fuse Locations
295 Continued
H
an
d
lin
g t
h
e U
n
ex
p
ec
te
d

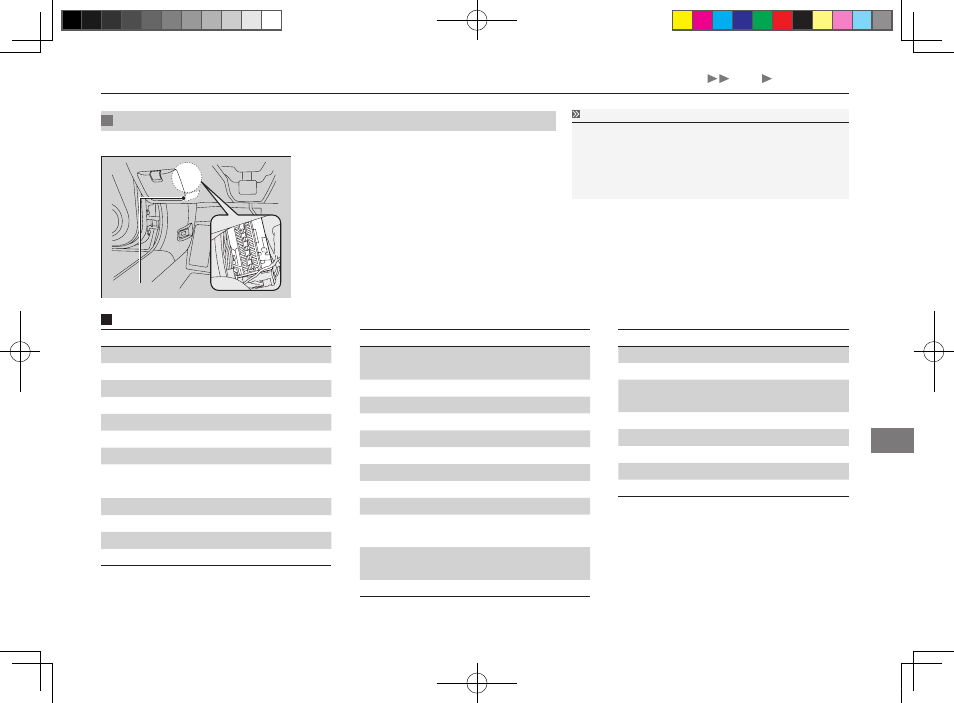

Driver Side Fuse Box
Located under the dashboard.
Fuse Locations
Fuse locations are shown on the label on the side
panel.
Locate the fuse in question by the fuse number and
label number.
Circuit protected and fuse rating
Circuit Protected Amps
1 − −
2 Seat Memory (7.5 A)
3 Washer 15 A
4 Wiper 10 A
5 Meter 7.5 A
6 ABS/VSA 7.5 A
7 ACG 15 A
8
STS *1
(7.5 A)
Starter DIAG *2
9 Fuel Pump 20 A
10 VB SOL* (10 A)
11 SRS 10 A
12 ODS 7.5 A
Circuit Protected Amps
13
− *1
(7.5 A)
STS *2
14 − −
15 Daytime Running Lights 7.5 A
16 A/C 7.5 A
17 Accessory, Key, Lock 7.5 A
18 Accessory 7.5 A
19 Driver's Power Seat Sliding (20 A)
20 Moonroof (20 A)
21 Driver's Power Seat Reclining (20 A)
22
Rear Driver's Side Power
Window
20 A
23
Front Accessory Power
Socket
20 A
24 Driver's Power Window 20 A
Circuit Protected Amps
25 Driver's Side Door Lock 15 A
26 Left Front Fog Light (10 A)
27
Left Side Small Lights
(Exterior)
10 A
28 Left Headlight High Beam 10 A
29 TPMS 10 A
30 Left Headlight Low Beam 15 A
31 − −
32 Engine Oil Level * (7.5 A)
*1: 4-cylinder models
*2: 6-cylinder models
* Not available on all models
Fuse Label
31TL1620.indb 295 2010/09/10 16:13:57
