Fuses
294
H
an
d
lin
g t
h
e U
n
ex
p
ec
te
d
If any electrical devices are not working, turn the ignition switch to LOCK 0 and
check to see if any applicable fuse is blown.

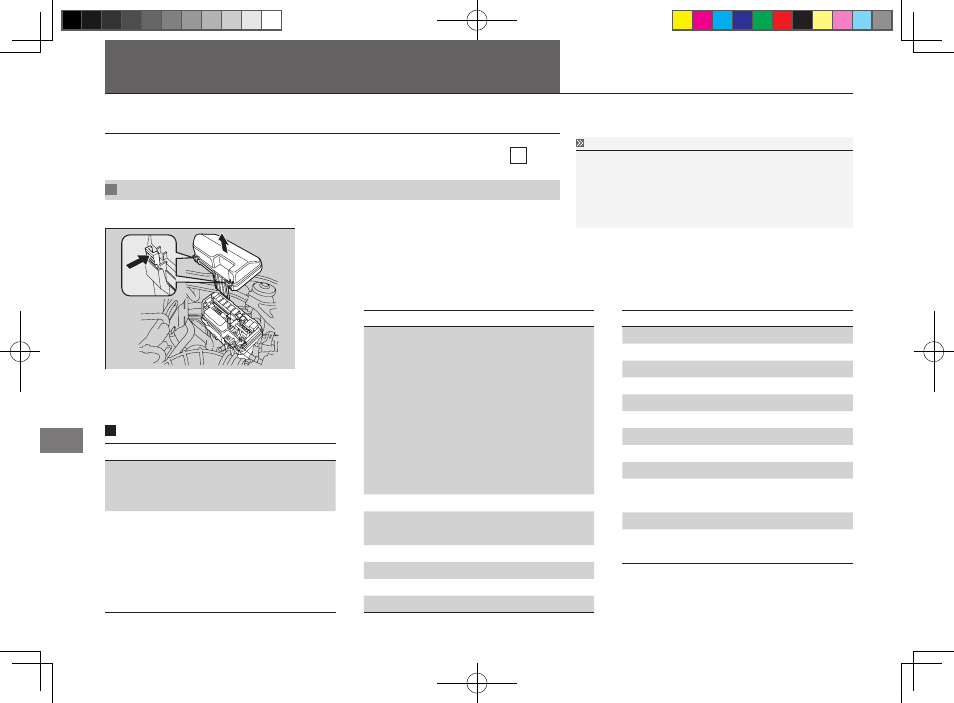

Engine Compartment Fuse Box
Located near the brake fluid reservoir. Push the tabs to open the box.
Fuse Locations
Fuse locations are shown on the fuse box cover.
Locate the fuse in question by the fuse number and
box cover number.
Circuit protected and fuse rating
Fuse Locations
Circuit Protected Amps
1
Battery
100 A *1
120 A *2
Passenger's Side Fuse Box 40A
2
EPS 70 A
Passenger's Side Fuse Box (40 A)
ABS/VSA FSR 30 A
− −
ABS/VSA Motor 30 A
− −
Circuit Protected Amps
3
IG 50 A
Driver's Side Fuse Box (40 A)
Passenger's Side Light Main 30 A
Driver's Side Fuse Box (60 A)
Driver's Side Light Main 30 A
Main Fan Motor 30 A
− *1 −
Wiper Motor *2 30 A
Wiper Motor *1
Sub Fan Motor *2
30 A
4 Rear Defogger 40 A
5
Sub Fan Motor *1 20 A
− *2 −
6 − −
7 − −
8 Heater Motor 40 A
9 Hazard 15 A
Circuit Protected Amps
10 Horn 10 A
11 − −
12 Stop 15 A
13 IG Coil 15 A
14 FI Sub 15 A
15 Backup 10A
16 Interior Lights 7.5 A
17 FI Main 15 A
18 DBW 15 A
19
− *1 −
Back Up FI ECU *2 7.5A
20 MG Clutch 7.5 A
21
Engine Oil Level *1
7.5 A
Fan RLY *2
*1: 4-cylinder models
*2: 6-cylinder models
