Checking and Maintaining Wiper Blades Changing the Wiper Blade Rubber
258
M
ain
te
n
an
ce

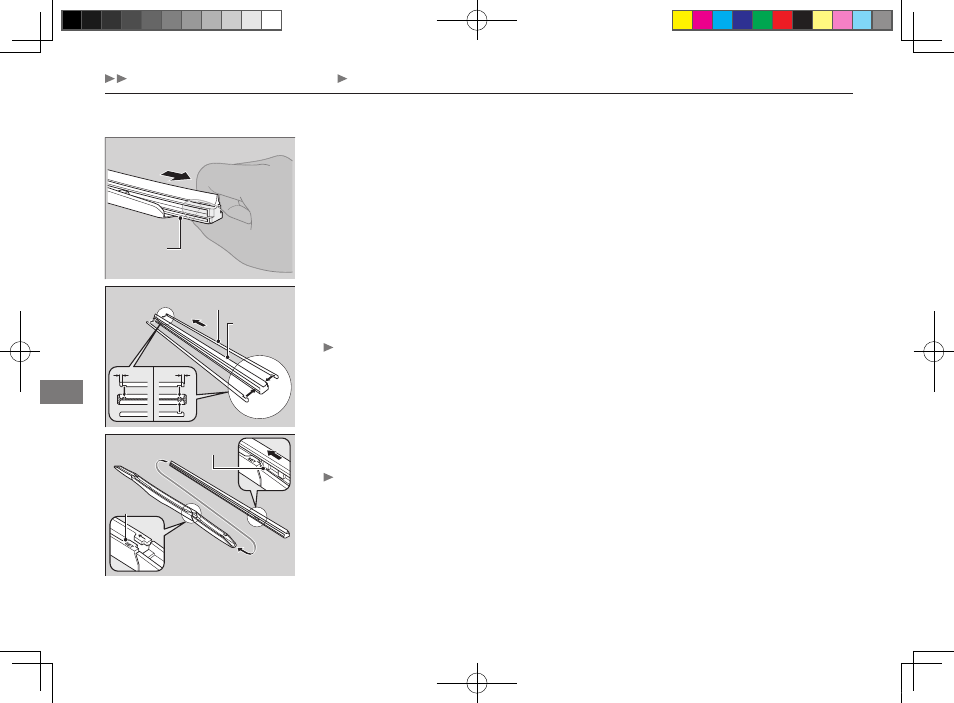

4. Slide the wiper blade out from its holder
by pulling the tabbed end out.
5. Remove the retainer from the rubber blade
that has been removed, and mount to a
new rubber blade.
Correctly align the rubber protrusion
and the retainer groove.
6. Slide the new wiper blade onto the holder
from the bottom end.
The tab on the blade should fit in the
indent of the wiper blade.
7. Slide the wiper blade onto the wiper arm,
then push down the lock tab.
8. Lower the passenger side wiper arm first,
then the driver side.
Blade
Top
Blade
Retainer
Tab
Indent
