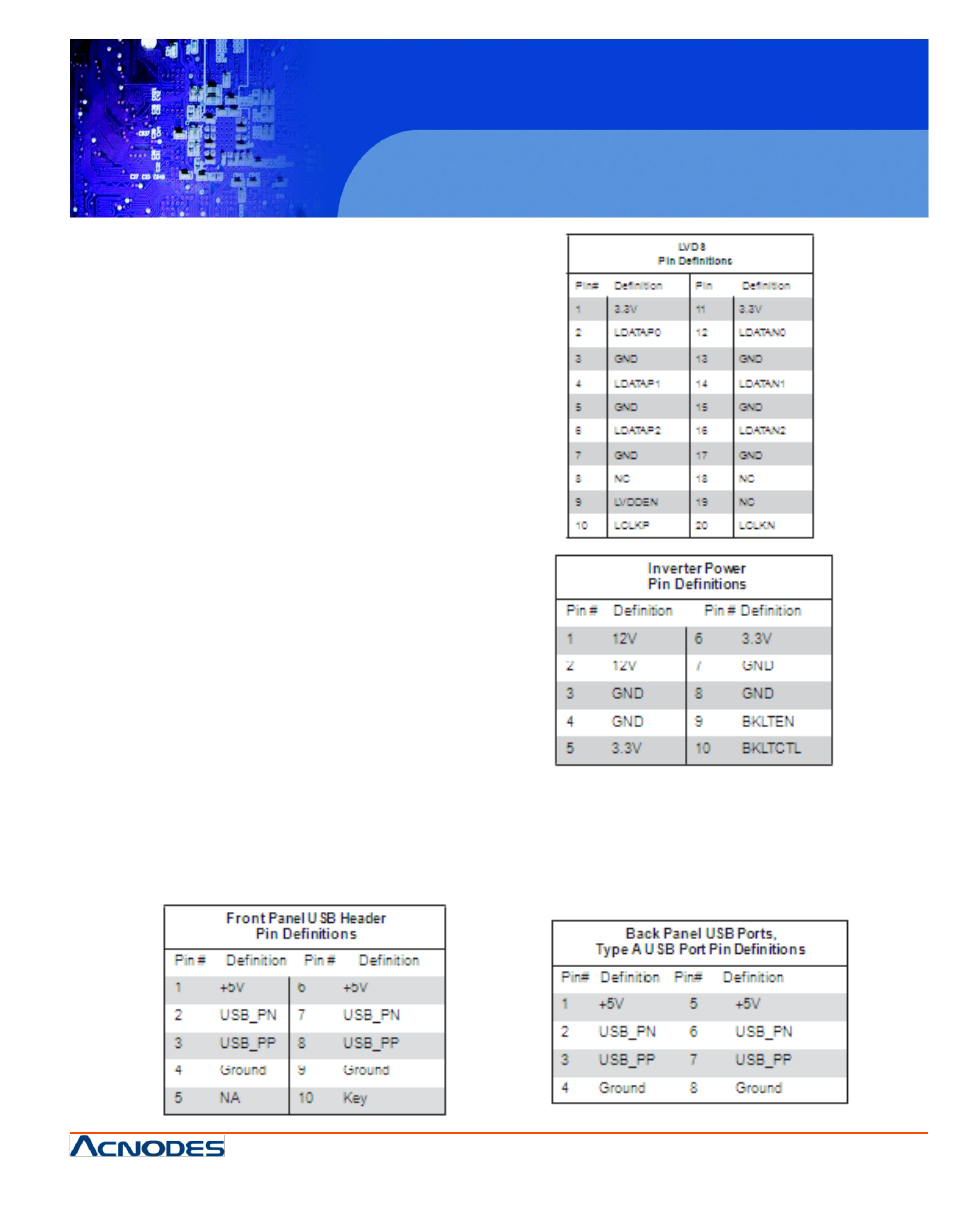

LVDS Connector

An LVDS connector (J5) is available on the
X7SPA-L only. This connector provides 18-bit
LVDS (Low Voltage Differential Signaling) for an
LCD panel or other similar devices. Refer to the
table on the right for pin defini- tions.

Inverter Power Connector

The inverter connector on J6 is a 7-pin connector
and is used in conjunction with the LVDS connector.
Connect the backlight module of the LCD panel to
this socket. This controls the back- light lamp,
PWM control signals, and inverter power.

Universal Serial Bus (USB)

Four Universal Serial Bus ports (USB1/2/3/4) are
located on the I/O backpanel. Additionally, one
Type A USB port (USB10) and five USB headers
(USB5/6, 7/8, 9) are pro- vided on the motherboard
to provide front chassis access (cables are not
included). See the tables on the right for pin defini-
tions.
