RMC
1U Rackmount

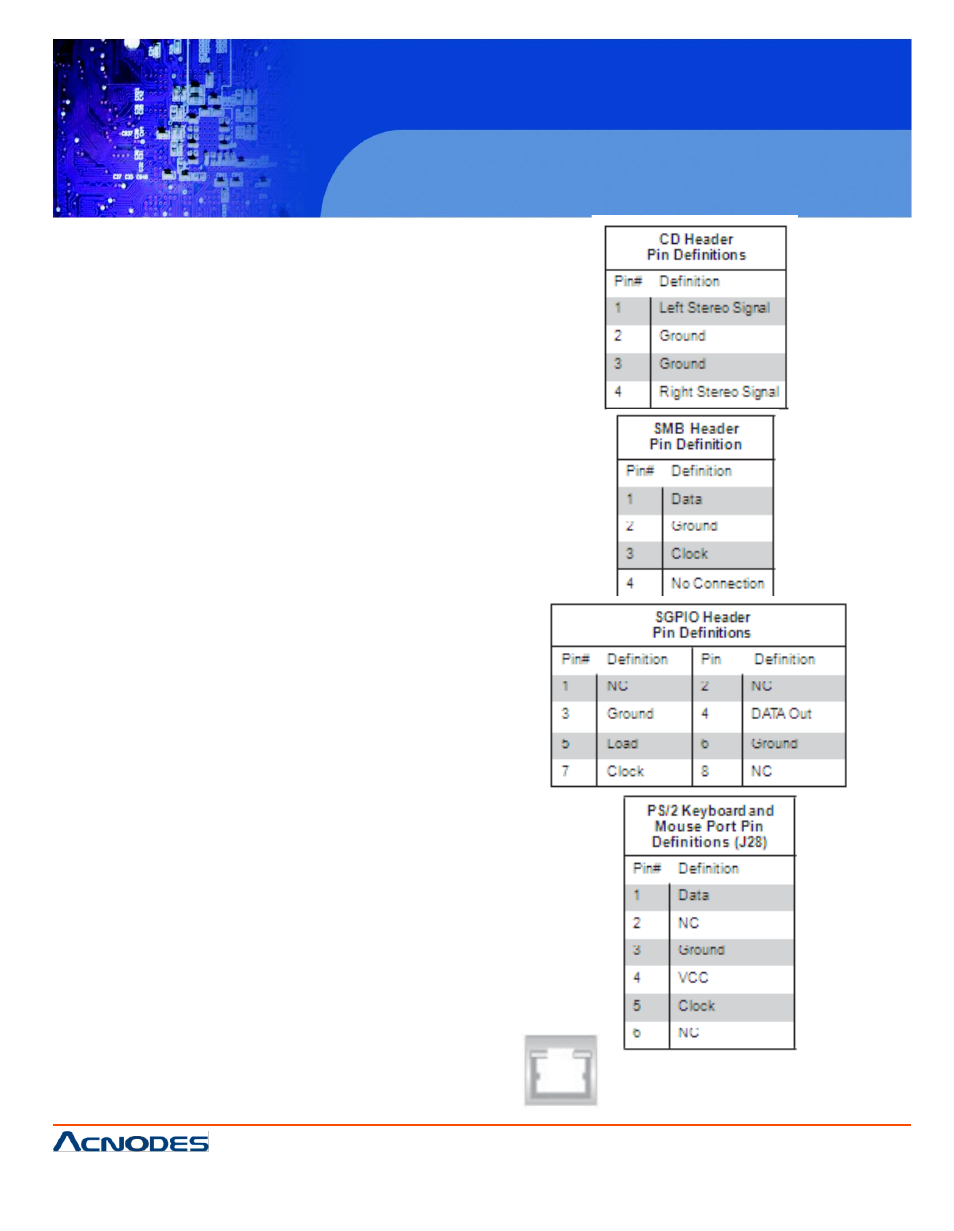

CD Header
A 4-pin CD header is located at CD1. This header
allows you to use the on- board sound for audio CD
playback. Connect an audio cable from your CD
drive to the header that fits your cable's connector.
See the table at right for pin definitions.
SMB
A System Management Bus (SMB) header is
located at JSMB. Connect the appropriate cable
here to use the SM B I2C c onnection on your
system.
T-SGPIO 0/1 Headers
Two T-SGPIO (Serial-Link General Purpose Input/
Output) headers are located near the SATA con-
nectors on the motherboard. These headers are
used to communicate with the enclosure manage-
ment chip in the system. See the table on the right
for pin definitions. Refer to the board layout below for
the locations of the headers.
ATX PS/2 Keyboard and PS/2
Mouse Ports
The ATX PS/2 keyboard and the PS/2 mouse are
located beside the USB0/1 ports. The mouse port is
above the keyboard port. See the table on the right
for pin definitions.
LAN1/2 (Ethernet Ports)
Two Ethernet ports (designated LAN1 and LAN2)
are located beside the VGA port on the I/O
backplane. These ports accept RJ45 type cables.
