2-4 RackMounting Instructions

This section provides information on installing the RMC5018 chassis into a rack unit There are a variety
of rack units on the market, which may mean the assembly procedure will differ slightly. You should also
refer to the installation instructions that came with the rack unit you are using.

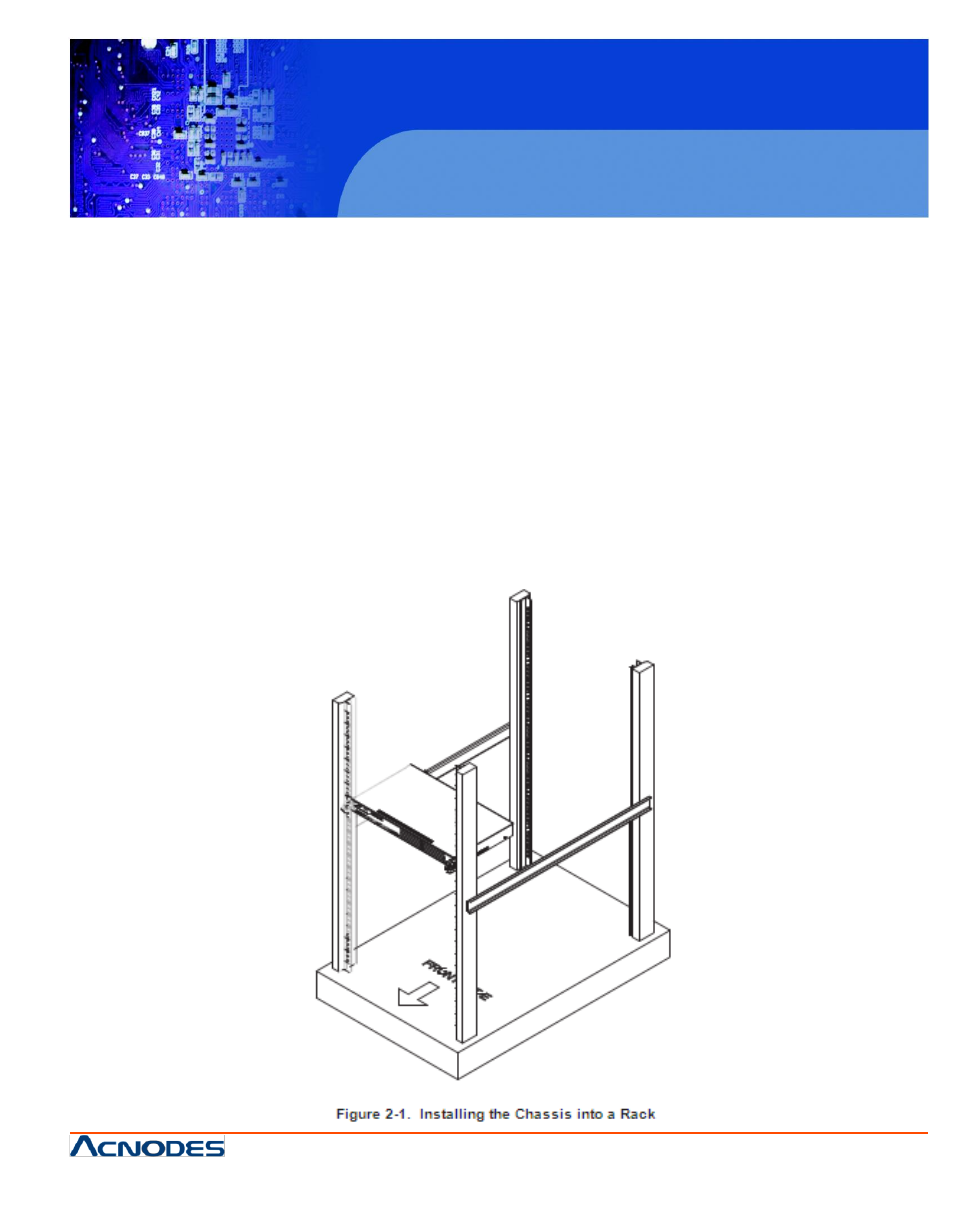

Installing the Chassis into a Rack

1. Confirm that chassis includes the four mounting screws required to mount the chassis into a rack

2. Align the thru holes of the chassis with the thru holes of the rack.

3. Insert the mounting screws into the thru holes in the front of the chassis and through the thru holes in
the rack
