RMC 5018

1U Rackmount System

14628 Central Blvd,

Chino, CA91710

tel:909.597.7588, fax:909.597.1939

All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes’ web site at www.acnodes.com.

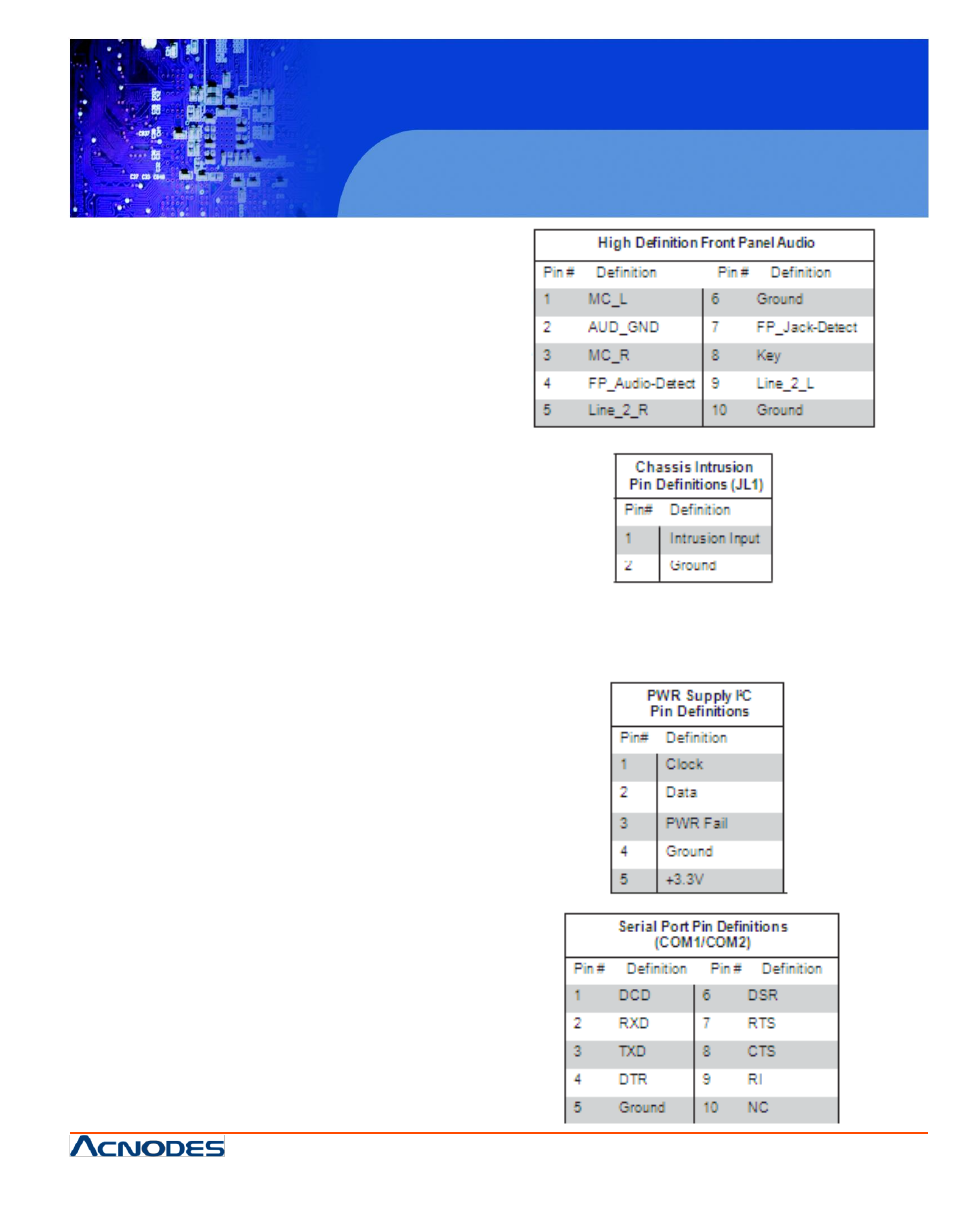

Front Panel Audio Header

The Front Panel Audio header is used to connect
the chassis' front panel High Definition Audio (HDA)
controls to the motherboard. See the table on the
right for pin definitions.

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the
motherboard. Attach the appropriate cable from the
chassis to inform you of a chassis intrusion when
the chassis is opened.

SATA DOM Power

The SATA DOM Power on JWF1 is used to supply
power to SATA Disk- on-Module (DOM) solid-state
storage devices.

Power SMB I2C Connector

Power System Management Bus (I2C) Connector
monitors the status of the power supply, fan and
system temperature. See the table on the right for
pin definitions.

Serial Ports

Two serial ports are included on the motherboard.
COM1 is a backpanel port and COM2 is a header
located behind the I/O ports. See the table on the
right for pin definitions.
