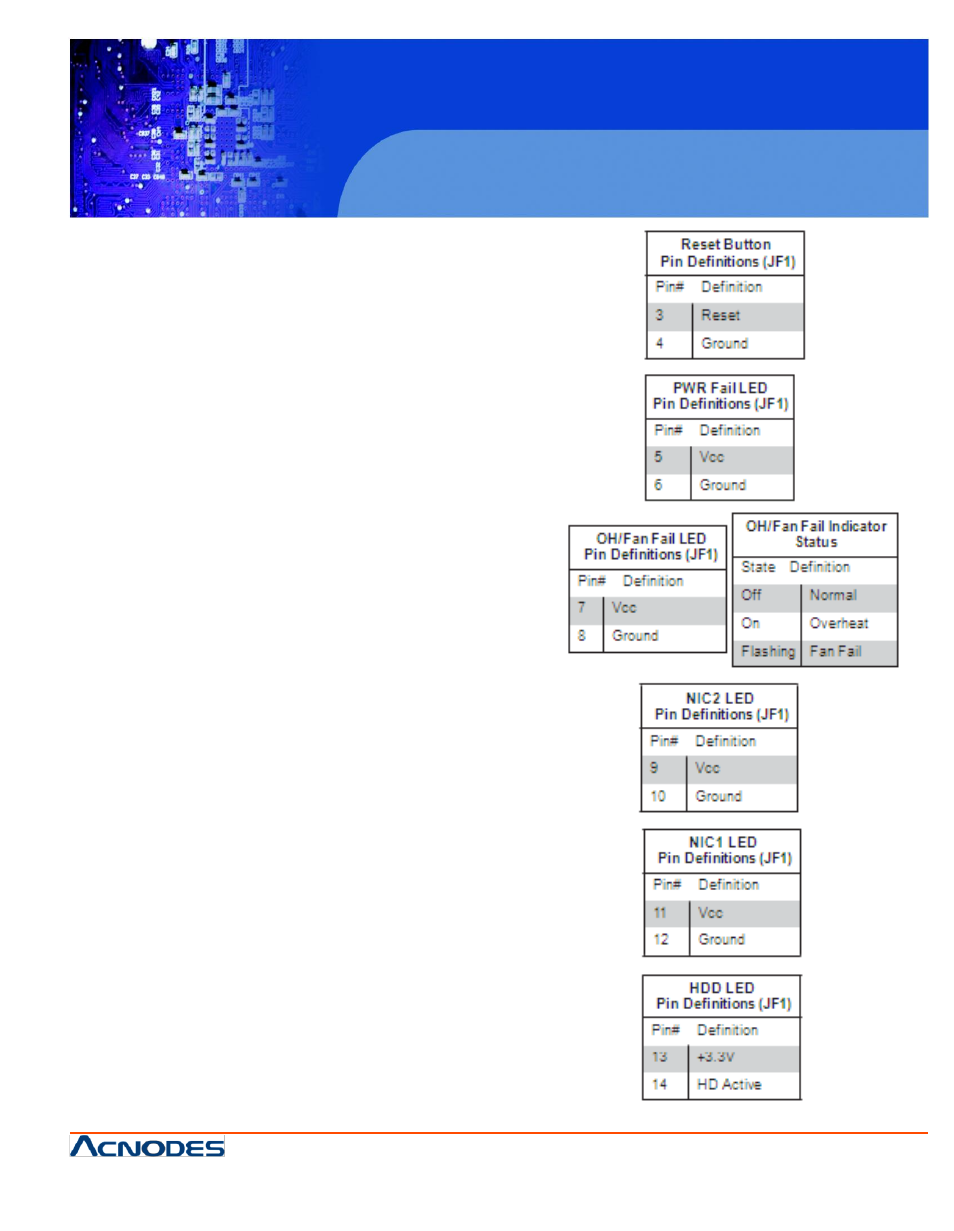

Reset Button

The reset button (from the computer chassis) connects
to pins 3 and 4 of JF1. See the table on the right for pin
definitions.

Power Fail LED

The Power Fail LED connection is located on pins 5
and 6 of JF1. Re- fer to the table on the right for pin
definitions.

Overheat/Fan Fail

Connect an LED to pins 7 and 8 of JF1 to indicate fan
fail and provide advanced warning of chassis over-
heating. Refer to the table on the right for pin defini-
tions.

NIC2 (LAN2) LED

The LED connections for LAN2 are on pins 9 and 10 of
JF1. Attach an LED cable to display network activity.
See the table on the right for pin defini- tions. (LAN2 on
5015A-H only.)

NIC1 (LAN1) LED

The LED connections for LAN1 are on pins 11 and 12
of JF1. Attach an LED cable to display network activ-
ity. See the table on the right for pin definitions.

HDD LED

The HDD LED connection is located on pins 13 and 14
of JF1. Attach a hard drive LED cable here to display
disk activity (for any hard drive activ-
ity on the system, including SATA
and IDE).
