1.4 Your B08S2-PS at a Glance
This section helps you get familiar with the physical appearance of your ExaSAN B08S2-PS.
1.4.1 ExaSAN B08S2-PS
1.4.1.1 B08S2-PS Front Panel & LED Indicators

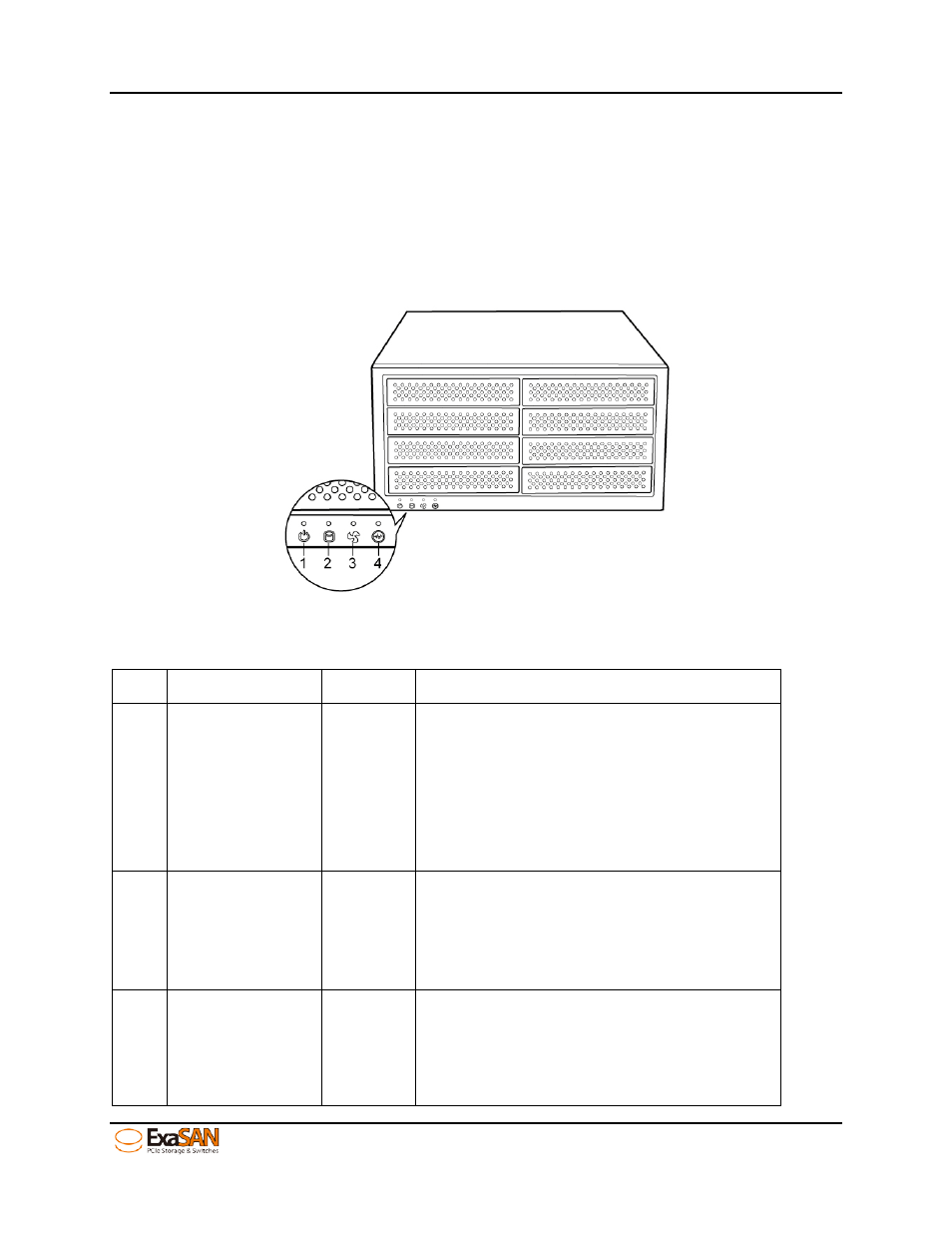

Figure 7: B08S2-PS front view
LED
Name
Color
Description
1
System Power
Blue
Flashing Blue indicates the host is booting.
Steady Blue indicates the subsystem
power supplies are working normally.
No Light indicates the power is off
2
Access Status
Blue
Flashing Blue indicates the host is
accessing.
No Light indicates standby or no power
3
System Fan
Blue/Red
Steady Blue indicates the fan module is
working normally.
Steady Red indicates the fan module has
