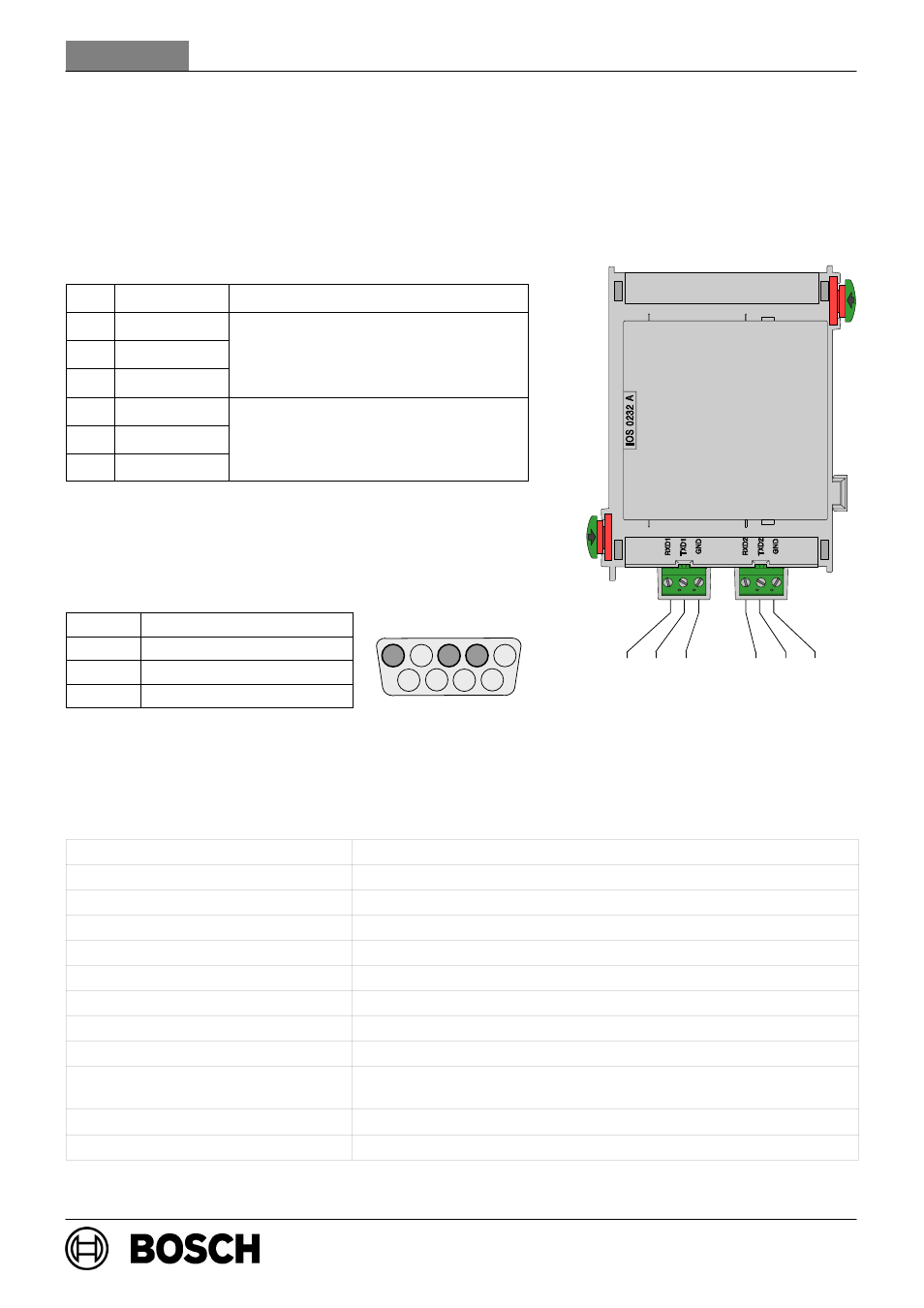

Nederlands

4.998.137.267

Productbeschrijving IOS 0232 A

21 / 32

ST − FIR / PRM1 / deh

610−4.998.153.975 / A2

Functies

d De RS232−commicatiemodule biedt twee onafhankelijke RS232−interfaces voor de aansluiting

van een printer of laptop.

Bekabeling

Pos.

Markering

Aansluiting

15

RXD1

16

TXD1

RS232−interface 1

17

GND

20

RXD2

21

TXD2

RS232−interface 2

22

GND

Penbezetting van 9−polige DSUB−stekker

Pennr.

Aansluiting

2

TxD0

3

RxD0

5

GND

Technische specificatie

Ingangsspanning (min − max)

20 V DC − 30 V DC

Maximaal stroomverbruik

2,6 mA

Maximale kabellengte

3 m op elke interface

Veiligheidsklasse

II volgens IEC 60950 / EN 60950

EMI/EMC−beveiliging

EN 50081−1 / FCC deel 15

Beschermingsklasse

IP 30 volgens IEC 60529

Bedrijfstemperatuur

−5

_C . . . 50 _C

Opslagtemperatuur

−20

_C . . . 60 _C

Toegestane relatieve vochtigheid

max. 95% niet−condenserend

Materiaal en kleur van de behuizing

ABS−kunststof Polylac PA−766 (UL94 V−0),
halfglans antraciet, RAL 7016

Afmetingen (H x B x D)

ca. 127 x 96 x 60 mm

Gewicht

ca. 180 g

15 16 17

20 21 22

5

4

3

2

1

9

8

7

6
