Product D escription F L M - I 420- S E nglish
Bosch Sicherheitssysteme GmbH F.01U.003.287 | A3 | 2008.03 18 / 36
Functional Description
The short-circuit isolator isolates alarm zones in which a short circuit or an interruption due to wire
break or detector removal has occurred. This means the functionality of the remainder of the network
remains preserved.

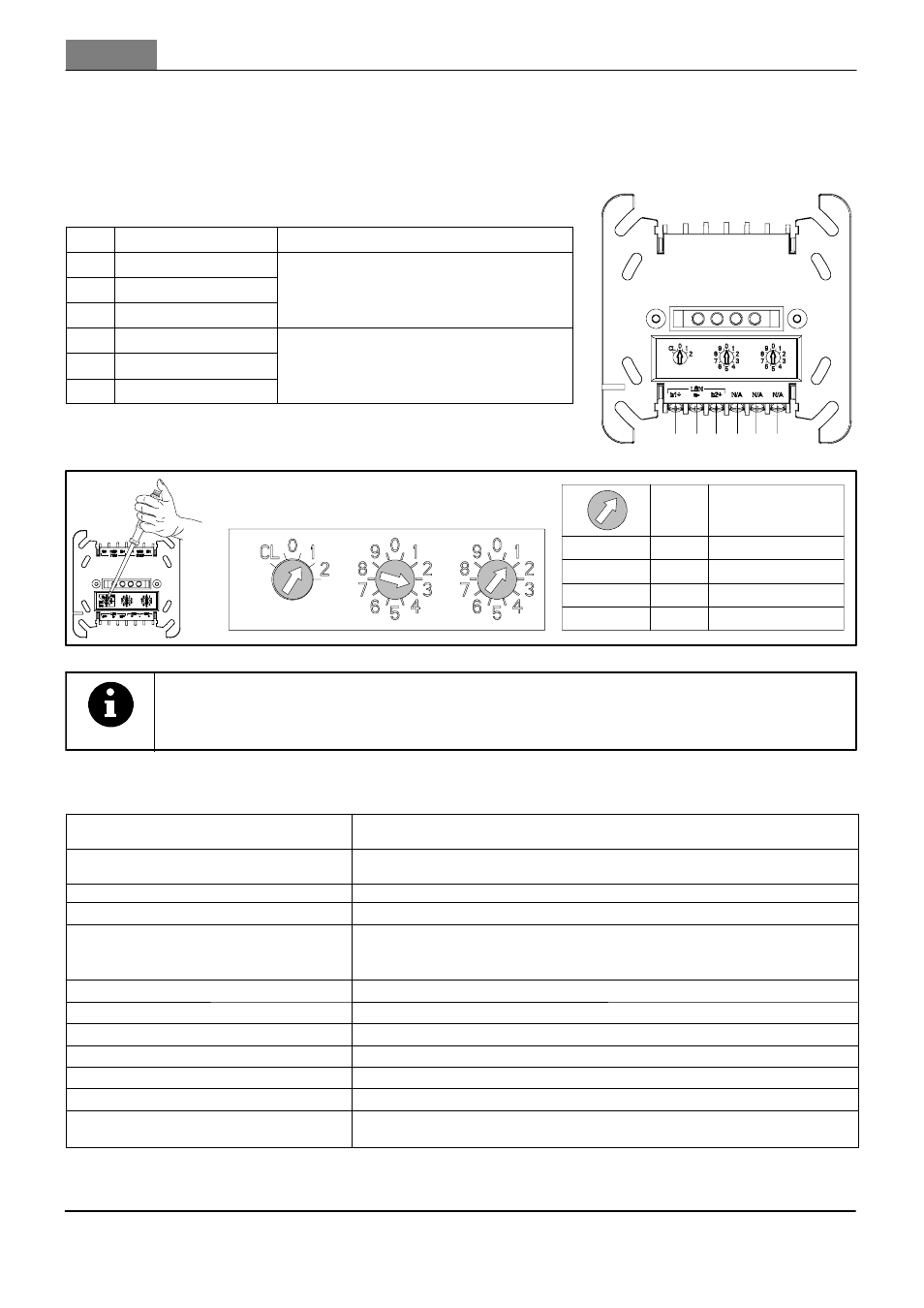

Wiring
Pos. Description Connection
1 b1+
2 a- LSN
3 b2+
4 N/A
freel terminals, e.g. for looping
5 N/A
freel terminals, e.g. for looping
through ext. auxiliary voltage and for
hi ldi
6 N/A
g y g
shielding
Adress Setting
Mode/
X
XX X
X
X XX
X
CL 0 0
0 0 0
1...254
FPA-
5000 BZ 500 LSN
UEZ 2000 LSN
UGM 2020
255...299
_
_
_
D
D
D
D
B
Technical Specification
Address setting 0 0 0 Loop/stub in LSN improved mode with automatic addressing
(T-tap system not possible)
Address setting 1...254 Loop/stub/T-tap system in LSN improved mode with manual ad-
dressing
Address setting CL 0 0 Loop/stub in „classic“ LSN mode
Input voltage (min - max) 15 V DC - 33 V DC
Maximum current consumption
- during initialization
- following the initialization (from LSN)
< 0,4 mA
< 0,25 mA
Safety class as per IEC 60950 III
Protection class as per IEC 60529 IP 54
Permitted operating temperature -20 °C . . . 50 °C
Permitted storage temperature -25 °C . . . 85 °C
Permitted relative humidity < 96%
Housing material and color PPO (Noryl), signal white (RAL 9003)
Material interface module housing
Material surface-mount housing PPO (Noryl)
ABS + PC-Blend
5 6 3 4 1 2
INFO
It is not permitted to use different adressing modes together.
