INSTALLATION
Installation

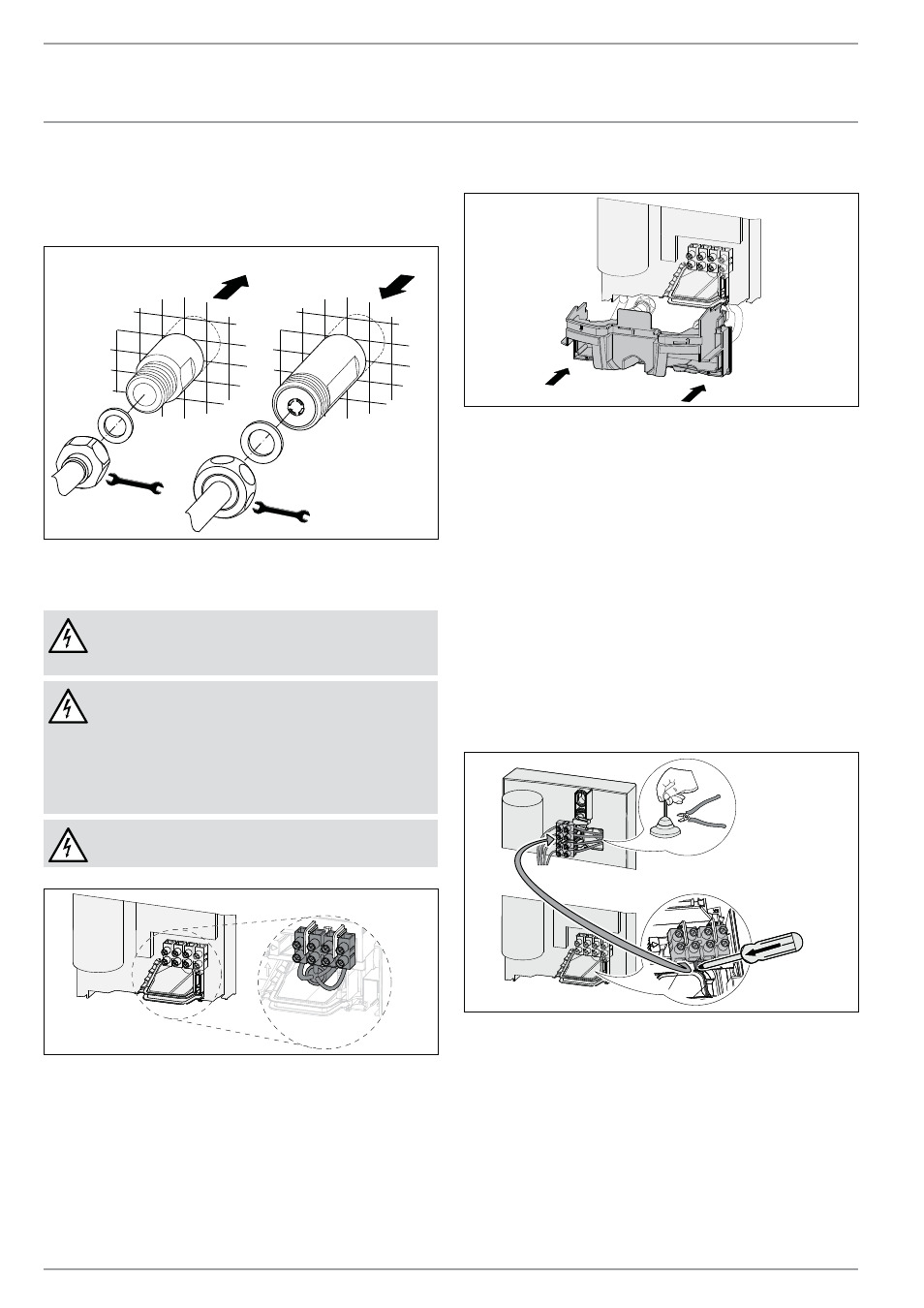

f Push the fixing toggle onto the threaded stud of the mount-
ing bracket.
f Press the back panel firmly into place and lock the fixing tog-
gle by turning it through 90°.
19
24
26
_0
2
_02
_1
3
6
9
f Fit the pipes with flat gaskets onto the twin nipples.
Connecting the power supply
WARNING Electrocution
Carry out all electrical connection and installation work
in accordance with relevant regulations.
WARNING Electrocution
Connection to the power supply is only permissible in the
form of a permanent connection in conjunction with the
removable cable grommet. The appliance must be able
to be separated from the power supply by an isolator
that disconnects all poles with at least 3 mm contact
separation.
WARNING Electrocution
Ensure that the appliance is earthed.
2
6
_0
2_0
2
_1
1
2
2_
f Connect the power cable to the mains terminal (see chapter
“Specification / Wiring diagram”). The specified voltage must
match the mains voltage.
10.1 Completing the installation
26
_0
2
_02
_1
1
0
2
_
f Fit the lower part of the back panel. Ensure that it clicks into
place.
f Align the appliance by carrying out the following: Loosen
the fixing toggle and align the power supply and back panel.
Retighten the fixing toggle. If the back panel of the appliance
is not flush, the appliance can be secured at the bottom with
an additional screw.
10.2 Alternative installation methods
- Power supply from above for unfinished walls
- large cross-section for power supply from below
- Connecting a load shedding relay
- Use of existing mounting bracket when replacing an
appliance
- Installation for offset tiles
Power supply from above for unfinished walls
2
6
_0
2_0
2_
1
1
2
3
_
f Cut off the cable grommet for the power cable.
f Push down and remove the locking hook that secures the
mains terminal, then remove the mains terminal.
f Reposition the mains terminal from the bottom to the top.
Secure the mains terminal by pushing it under the locking
hook.
