SeeSnake ®

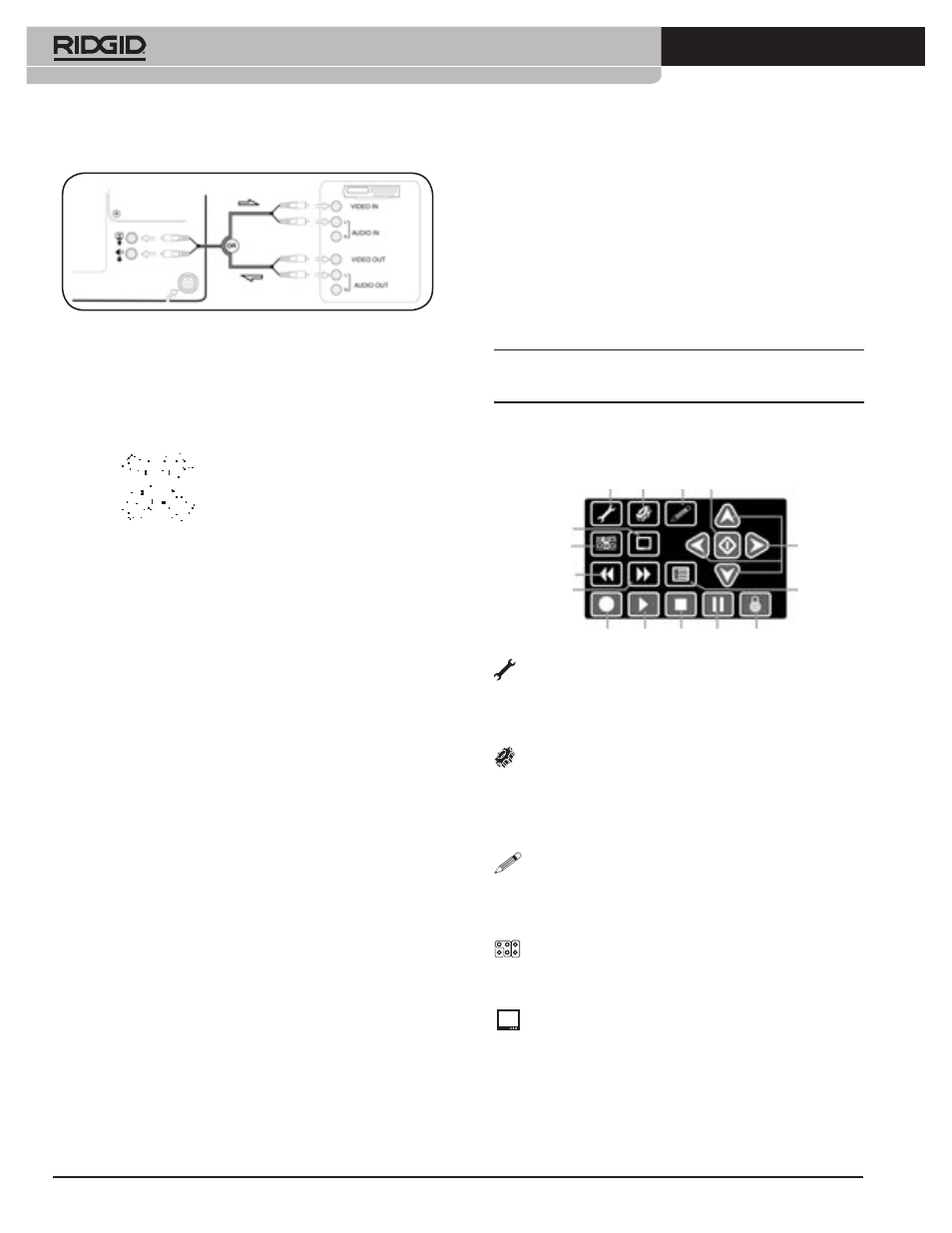

Copying and/or Viewing Video Between an External Video
Device and the Colour Video ToolCase
Auxiliary Jack Pinout
*Nominal Voltage. Power Off: 20mA max; Power On: 500mA
with camera disconnected
LCD DVD monitor
LCD DVD monitor components: see Fig. 1
Sun shade/protective door
To open the sun shade depress the orange release buttons
on each side of the unit while gently pressing in on the lower
corners of the door with your thumbs. The sunshade must
be opened before you can open the bottom door to expose
the VCR.
NOTE: The top door must be open before the bottom door
can be opened.
DVD Control Keypad
Tools — Pressing the Tools Key brings up a screen of
options to erase or finalize the current DVD. (You can also
access the “Finalize” option directly through the Finalize
Key).
Setup — The Setup Key will bring up menus to set up
user preferences for Video, Clock, Time and Date, an Auto-
Sleep feature and a Defaults Restore option. Setup will also
access sub-menus for setting Playback, Recording, Audio,
and tuner preferences.
Edit — The Edit Key brings up options for editing a
currently-playing title on the current DVD. Options include
renaming, setting protection ON or OFF, and enabling
overwrite of the disc.
Source — The Source Key lets you select from input
choices. The source selection for the LCD Monitor+DVD
should always be set to “SCART” for correct operation.
Display — The Display Key toggles a Status Bar at
the top of the screen ON or OFF. The Status Bar shows the
current media, the current status of the unit, and current
data source. It will display a circle with a line through it when
a chosen action is not possible (such as when still processing
a previous command).
1 - Video
2 - Record Status
3 - +120VOG
4 - Audio
5 - GND
6 - Power Override
Tools Edit Enter/Select
Record Play Stop PauseFinalize
Display
Source
Fast
Reverse
Fast
Forward
Directional
Arrows
Menu
Setup
