4-10 C HAPTER 4: C ONFIGURING IP R OUTING
Configuring IP RIP
on a Remote Site Access the RIP options for the WAN through Configuration > Remote
Sites > IP.

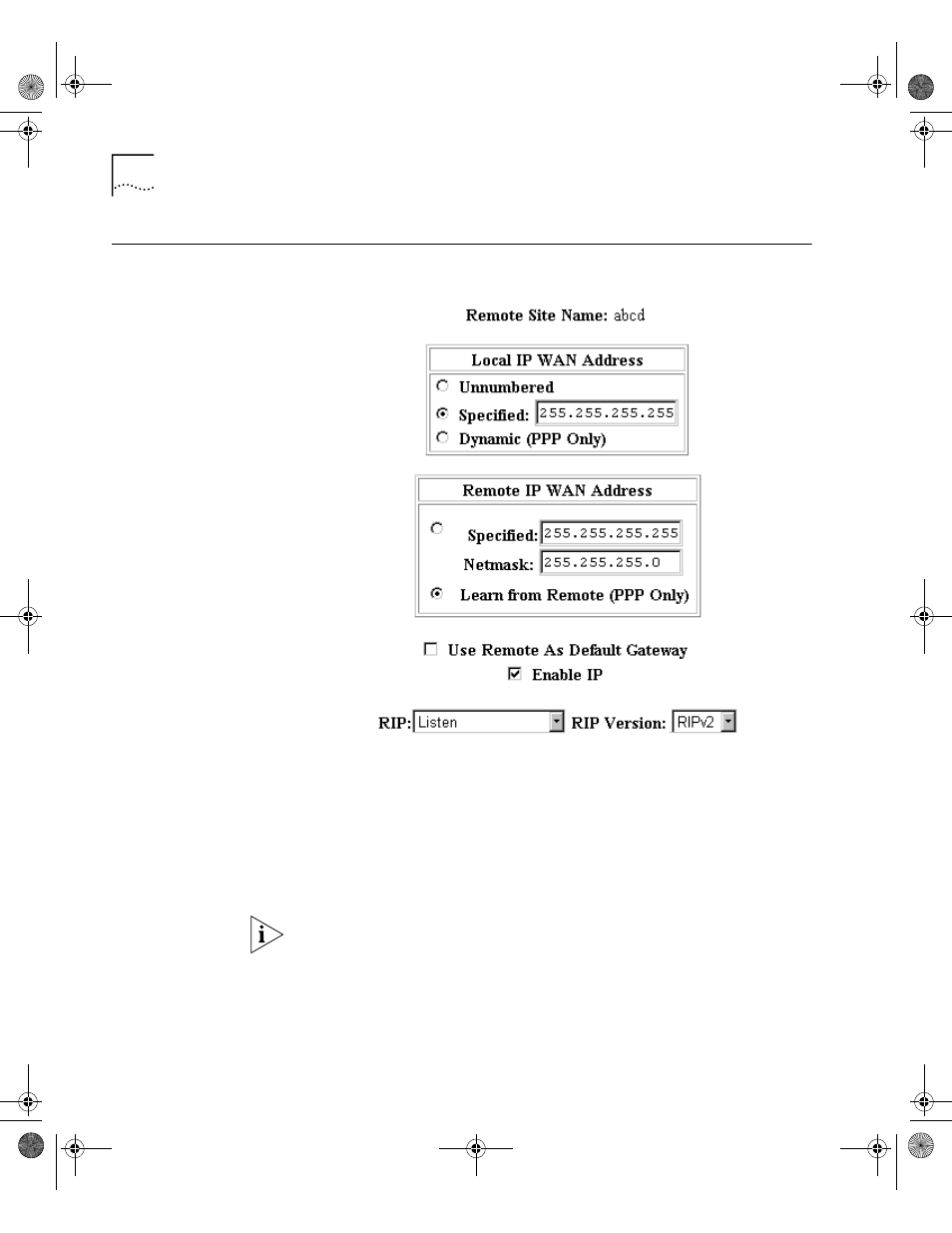

1 Select a defined remote site connection from the list and click Modify.
Keep clicking Next until you advance to the IP Modify screen.
2 You can select the RIP version to be either Broadcast, Broadcast &
Listen, Listen or None. Broadcast refers to when routing information
packets are sent out to the network, and Listen refers to the
OfficeConnect Remote 840 receiving routing information packets from
remote sources.
If you are using address translation (PAT/NAT), you must set routing to
either Listen or None. This is because you have set up a private network
and therefore do not want to be broadcasting information to other
routers.
3 You can then choose between RIPV1 (version 1) or RIPV2 (version 2) for
your routing information protocol.
