Events Logs 11-15

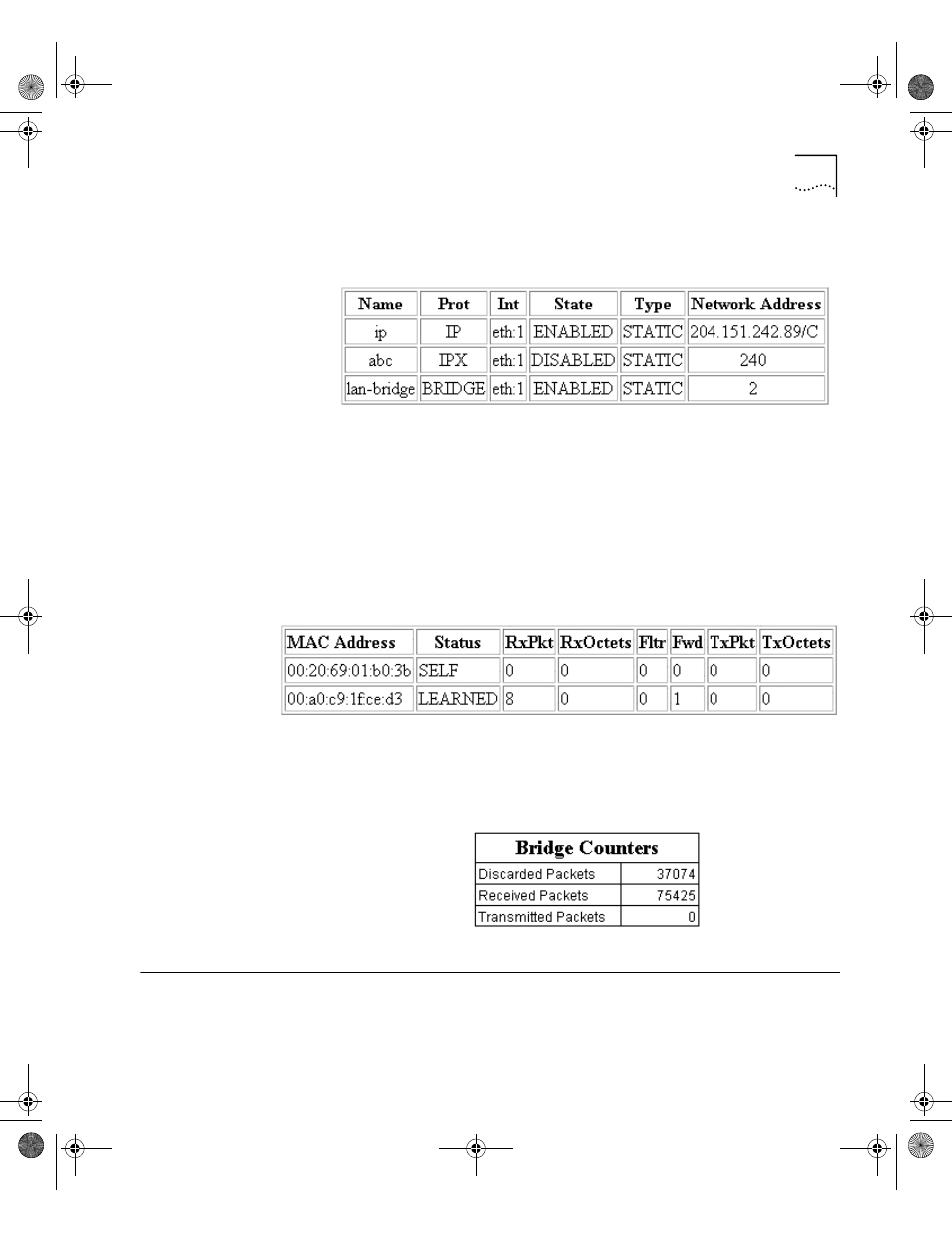

The screen capture below provides an example of the network status
table.
Forwarding Table The bridge forwarding table is used for forwarding packets and contains
the list of learned media access control (MAC) addresses. To access this
table, go to the OfficeConnect Remote 840 home page and select
Monitor > Routes and Services > Bridge Forwarding Table.
The table contains the learned MAC addresses and counters for data
traffic that has been received, forwarded or not forwarded (filtered), and
transmitted.
Bridge Counters Bridge counters provide transmit and receive counts for the bridge
process. To view the counters table, from the OfficeConnect Remote 840
home page, select Monitor > Networks > Bridge.
Events Logs The Office Connect Remote 840 router maintains logs of certain events.
These logs contains a running list of text messages generated during
connection to the WAN or whenever a critical event happens.
