11-10

HAPTER

11: M

ONITORING

THE

FFICE

ONNECT

EMOTE

840

IP, TCP, UDP, ICMP

Counters and Tables

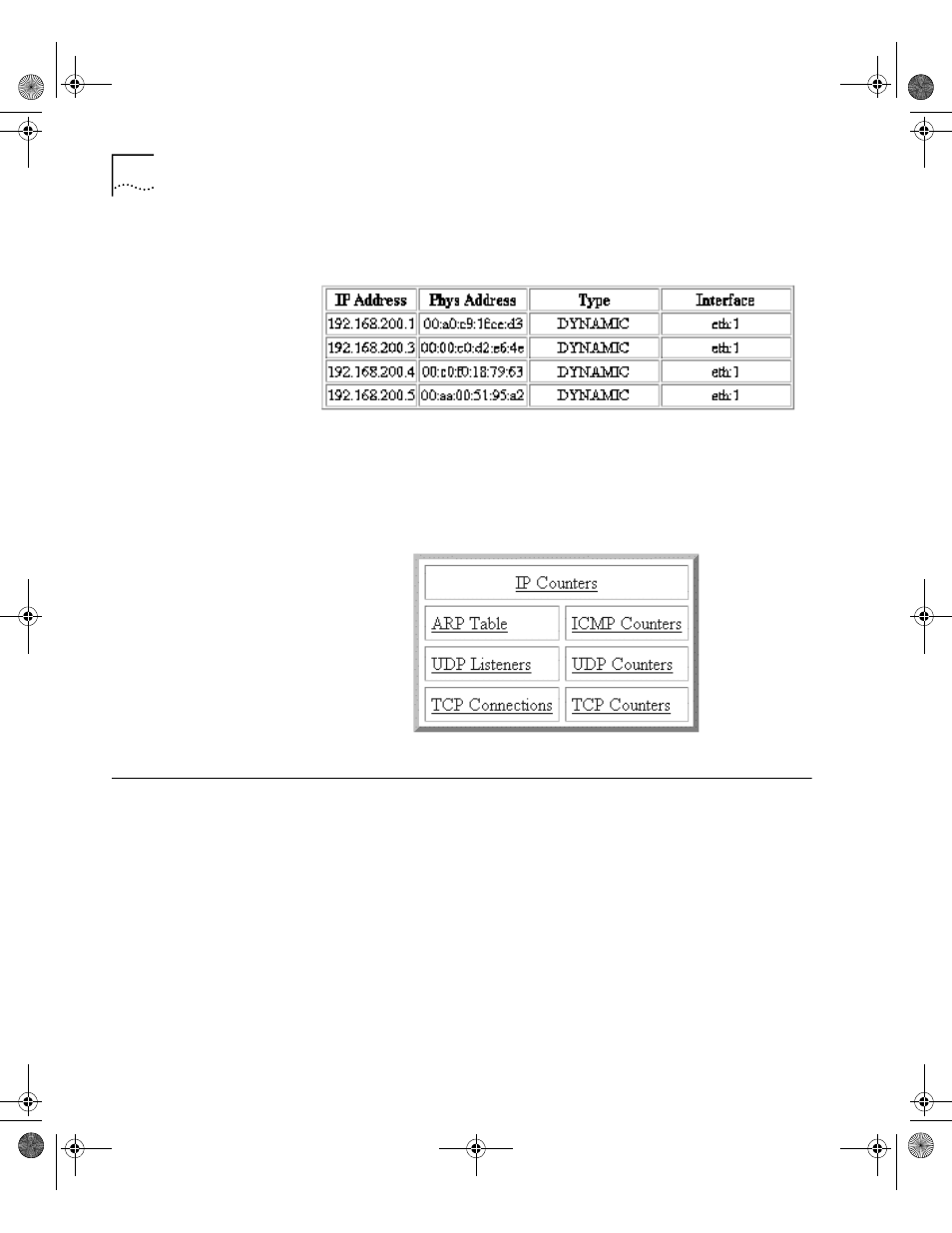

The OfficeConnect Remote 840 Manager provides various counters and
tables for the IP, TCP, UDP and ICMP protocols. To get to the counter and
table screens, go to the OfficeConnect Remote 840 Manager home page
and select Monitor > Networks > IP. Select the desired counters from
the screen shown below:

DHCP

DHCP Lease Table

Workstations on the LAN 'lease' IP addresses from the OfficeConnect
Remote 840 when it is the DHCP Server.

You can view all of the currently outstanding leases by examining the
DHCP Lease Table. From the OfficeConnect Remote 840 Manager home
page select Monitor > Networks > DHCP > DHCP Leases.
