1-10 C HAPTER 1: O VERVIEW
OfficeConnect
Remote 840 Panel
Features All LED and status information can be found on the front panel of the
unit, while the power jack and ports are located on the back of the unit.
Front Panel Below is a representation of the front panel of your unit:

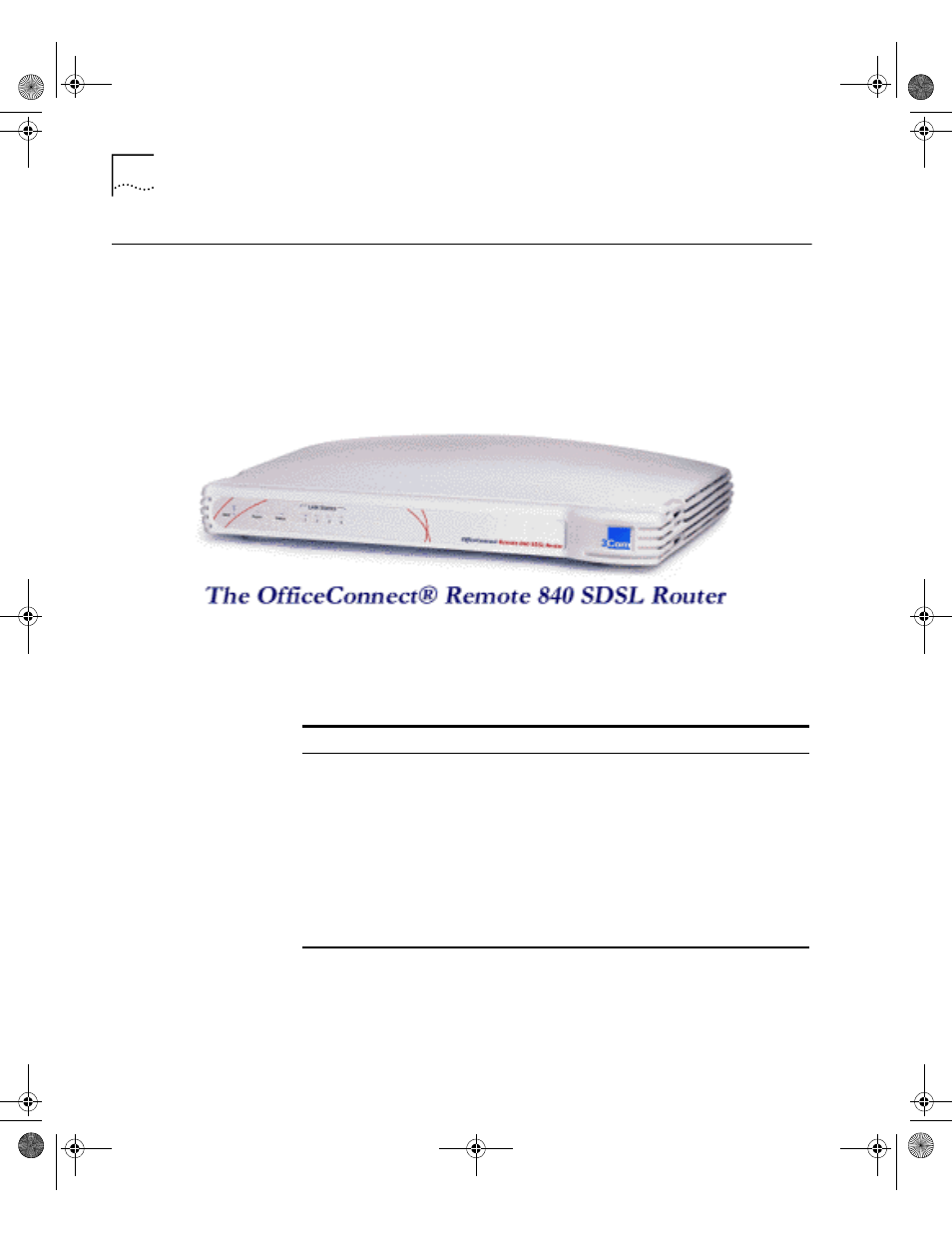

Figure 1–4 OfficeConnect Remote 840 Front Panel
Table 1–1 LED definitions
A table of LED operation is provided in Chapter 3 of the OfficeConnect
Remote 840 SDSL Router Installation Guide in the section “Installing
The OfficeConnect Remote 840.”
LED Status Meaning
Alert FLASHING RED When software is initializing
Power STEADY GREEN When power is applied to the unit
SDSL Link Status OFF No signal detected
FLASHING ORANGE The unit is attempting to acquire
synchronization with the CO equipment.
STEADY GREEN Link is up.
FLASHING GREEN When data is being sent over the link.
LAN Status (4) STEADY GREEN When a client is connected to the
corresponding port on the hub.
