11-8 C HAPTER 11: M ONITORING THE O FFICE C ONNECT R EMOTE 840

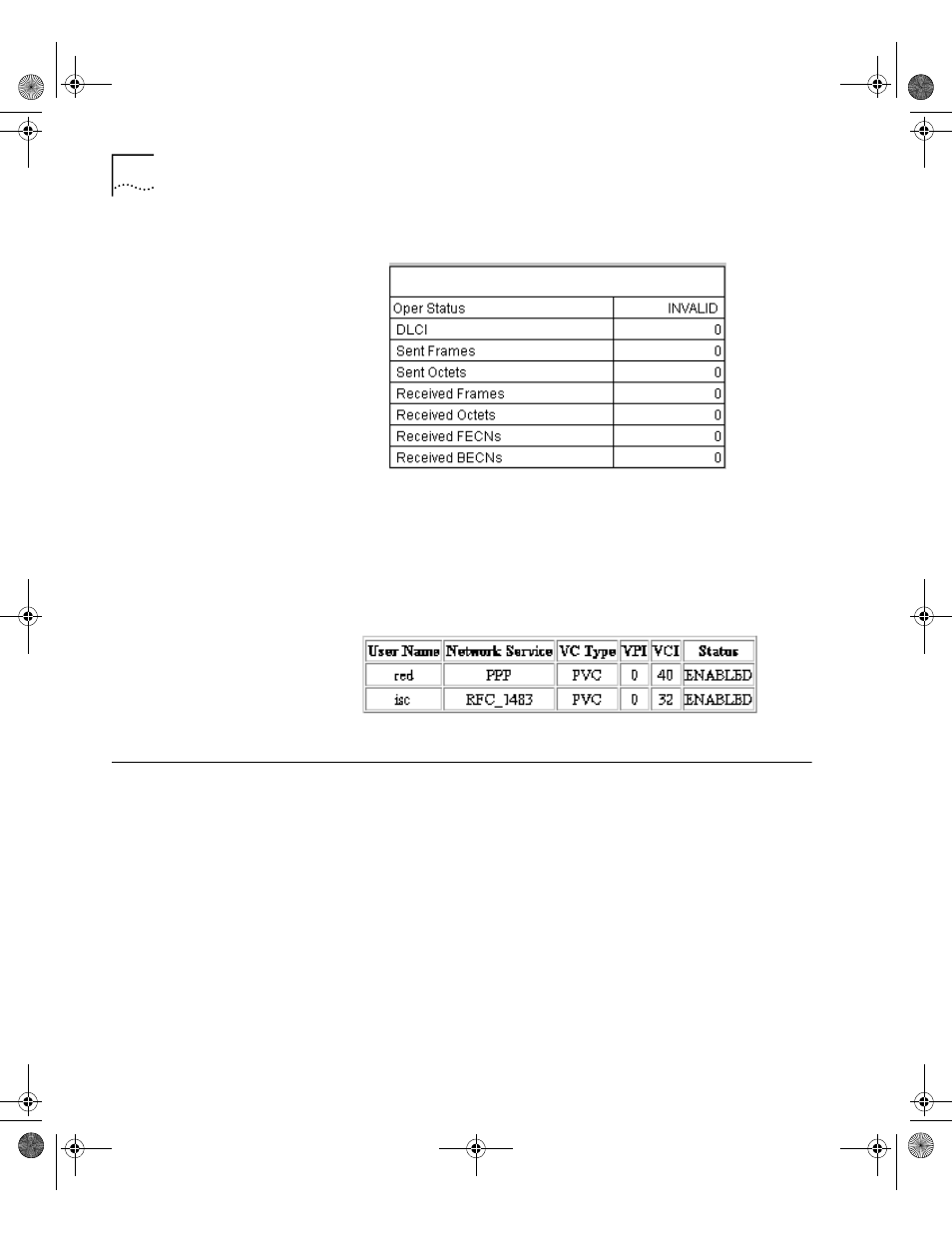

Frame Relay VC Site
Counters
Remote Site Status
Table
To view a complete list of configured remote site profiles and their status,
access the Remote Site Status screen by selecting Monitor > Remote
Sites > Remote Site Status.
The status table includes the configured network service, VPI and VCI for
each remote site as well as the operational status of the profile.
IP
IP Networks IP networks are created when you configure IP over the LAN and when a
remote site connection is configured to route IP traffic. To view the list of
IP networks and their status, bring up the Network Status screen. This
screen lists the status of all OfficeConnect Remote 840 IP, IPX, and Bridge
networks. To see this screen, go to the OfficeConnect Remote 840
Manager home page and select Monitor > Networks > Network
Status.
The network status table shows the network name, the protocol, the
interface over which the network runs (eth:1 for LAN, atm:1 or hdlc:1 for
WAN), how the network was created (static for LAN, dynamic for WAN)
