ES-1528 User’s Guide
55
C
H A P T E R
6
Port Settings
This chapter describes how to view and configure the port settings on the switch.
6.1 Port Status
Use this screen to view switch port settings. Click System > Port in the navigation panel to
display the Port Status screen.

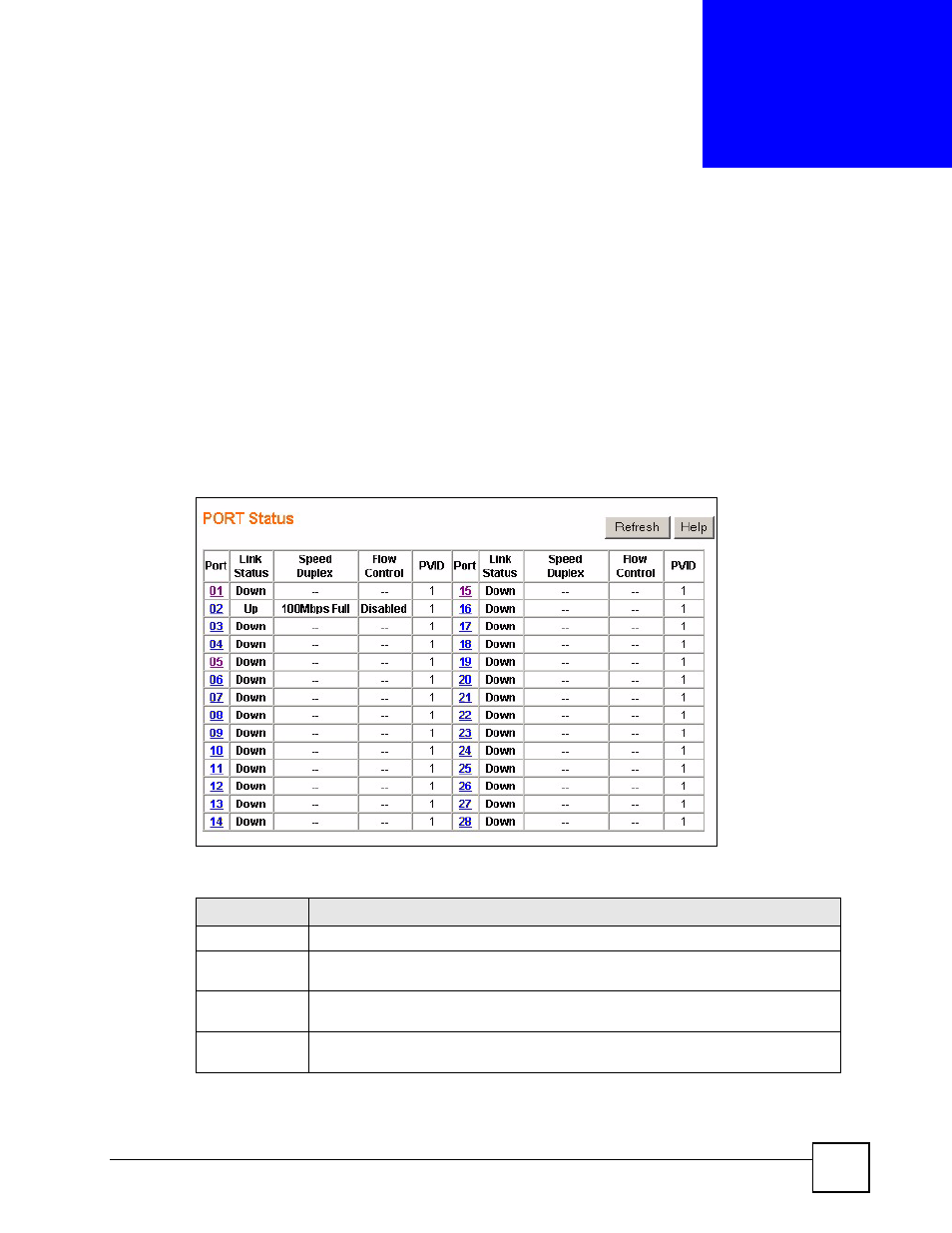

Figure 27 Port Status
The following table describes the labels in this screen.
Table 8 Port Status
LABEL DESCRIPTION
Refresh Click this to update the PORT Status screen.
Port This identifies the Ethernet port. Click a port number to display the Port
Configuration screen (refer to Section 6.2 on page 56 .)
Link Status This field displays the link status of the port. Up, if the port is enabled and active or
Down, if the port is disabled or not connected to any device.
Speed Duplex This field displays the speed either 10Mbps, 100Mbps or 1000Mbps and the duplex
mode Full or Half.
