Chapter 4 The Web Configurator
ES-1528 User’s Guide
44
Figure 14 Web Configurator: Login
4 Click LOGIN to view the first web configurator screen.
4.3 The Status Screen
The System screen is the first screen that displays when you access the web configurator.
The following figure shows the navigating components of the web configurator screen.

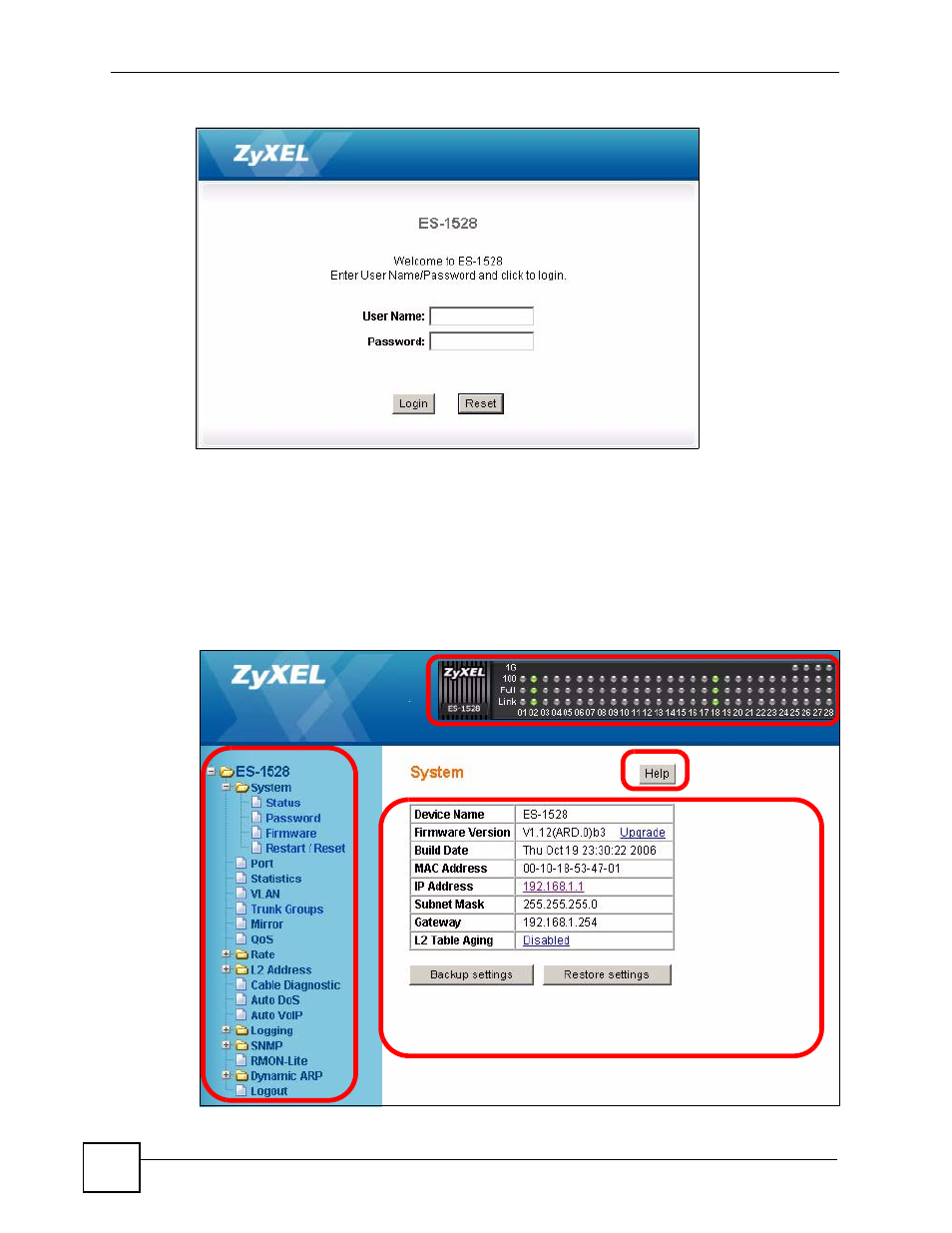

Figure 15 Web Configurator Home Screen (System)
