19.5.1 RMON Alarm : Create New Alarm
Use the RMON Alarm : Create New Alarm screen to configure RMON alarms. Click
Create new Alarm or click on an existing alarm index entry in the RMON Alarm :
Overview screen to view the screen as shown.

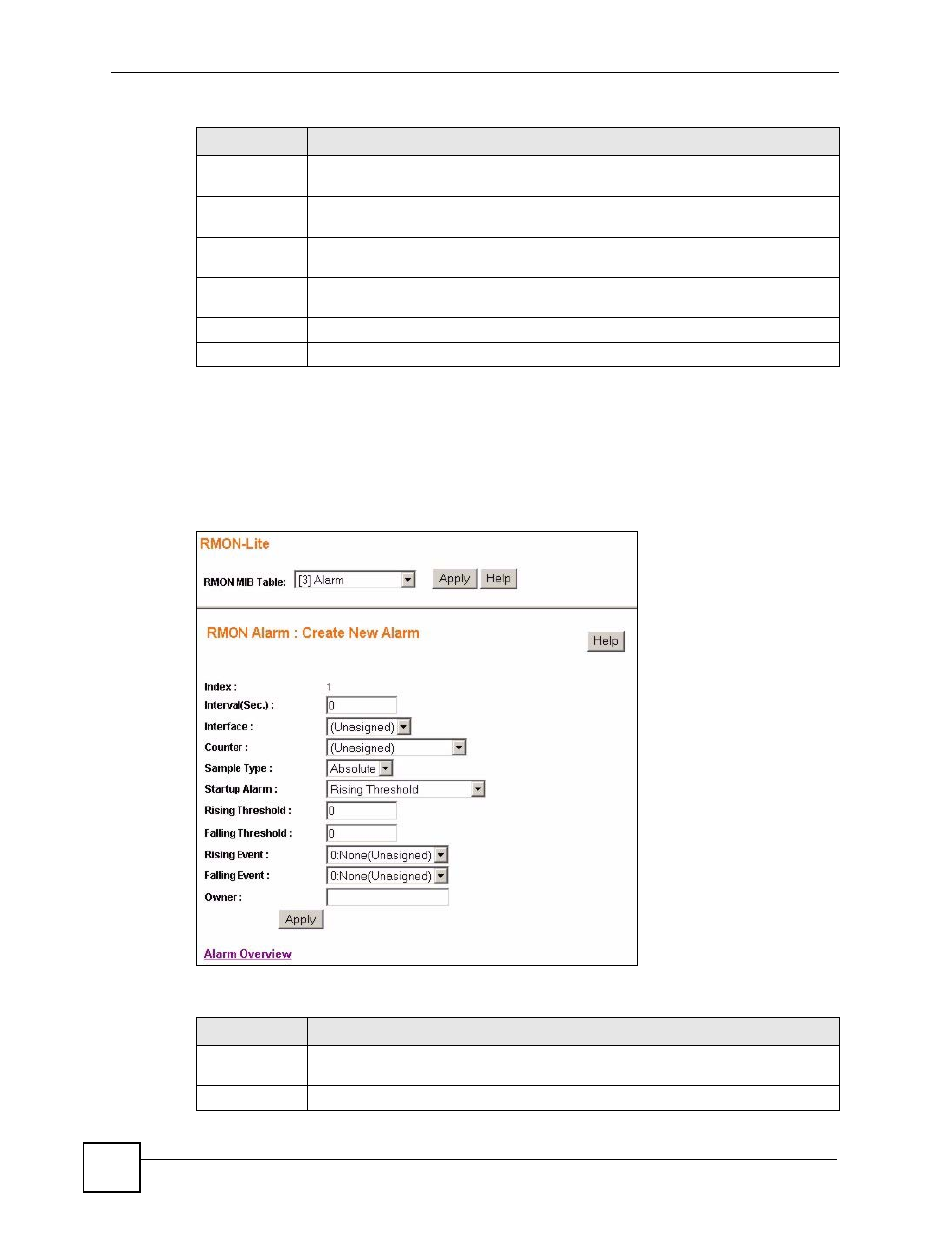

Figure 79 RMON Alarm : Create New Alarm
The following table describes the labels in this screen.
RisingThreshol
d
This field displays the rising threshold value set up for this alarm.
FallingThreshol
d
This field displays the falling threshold value set up for this alarm.
Rising Event
Index
This field indicates the index number of the event entry which corresponds to the
time when the alarm threshold was crossed.
Falling Event
Index
This field indicates the index number of the event entry which corresponds to the
time when the alarm threshold was crossed.
Owner This field displays the name of the creator of this entry.
Delete Click this to remove the selected alarm entry.
Table 60 RMON Alarm: Overview (continued)
LABEL DESCRIPTION
Table 61 RMON Alarm : Create New Alarm
LABEL DESCRIPTION
RMON MIB
Table:
Use this drop down list box to select the MIB table you want to view. Click Apply to
refresh the screen to the selected MIB table view.
Index This field displays the index number of this alarm entry.
