Chapter 19 RMON-Lite
ES-1528 User’s Guide
130
19.6.1 RMON Event Configuration Screens
Use the RMON Event: Create and the RMON Event: Modify screens to configure RMON
events. Click Create new Event in the RMON Event : Overview screen to view the screen as
shown. You can also click an event index number in the RMON Event : Overview screen to
edit an existing event configuration. Only the RMON Event : Create screen is shown as the
modify screen contains the same fields.

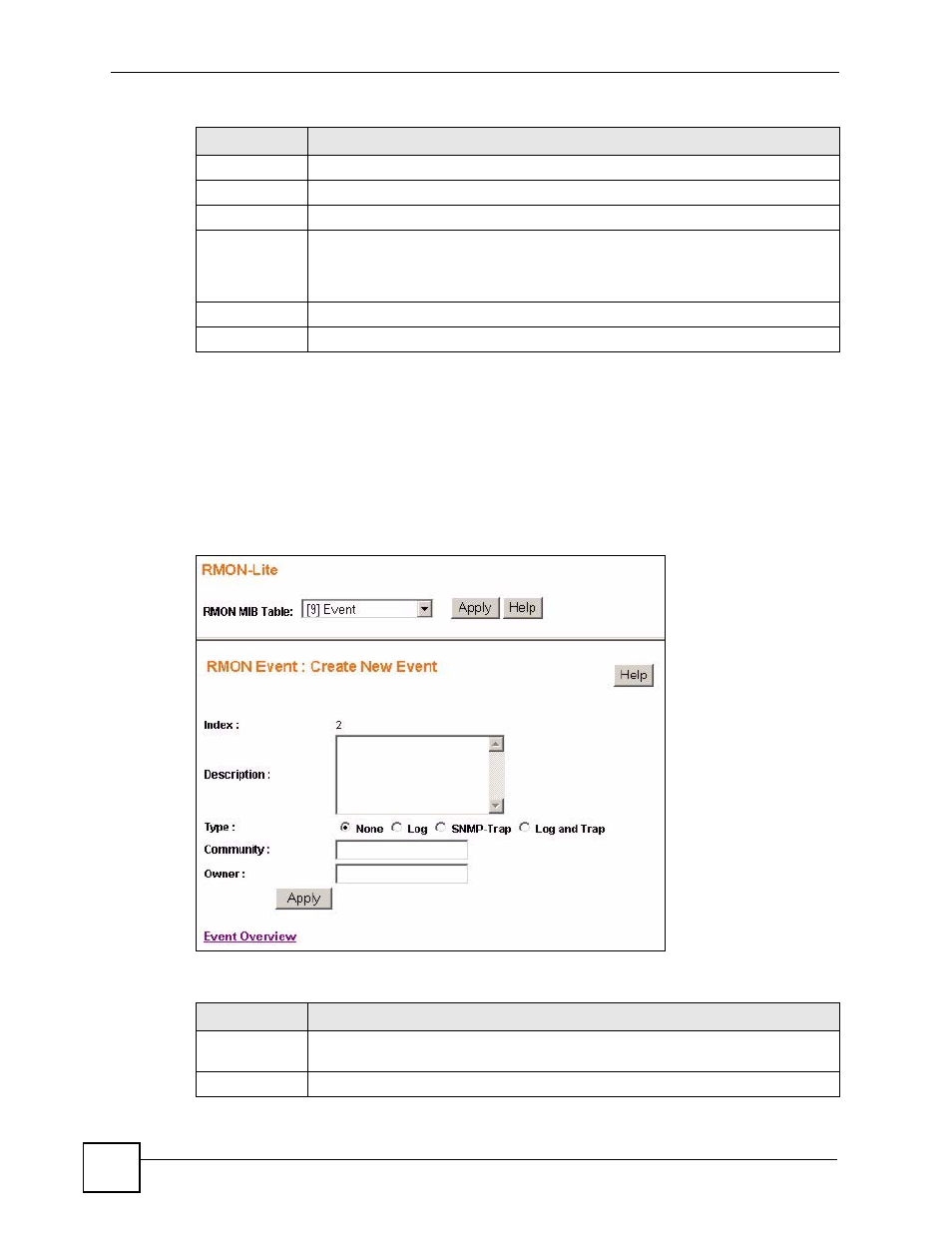

Figure 81 RMON Event Configuration Screens
The following table describes the labels in this screen.
Description This field displays a description of the event.
Type This field displays the event type (1:None, 2:Log, 3:SNMP-Trap, 4:Log-and-Trap).
Community This field displays the community or SNMP trap.
Last Time Sent This field indicates the value of system up time on the switch when this event was
last generated. It appears in the following format “XXD: XXH: XXM: XXS”, where
“XX” stands for a number and “D” stands for days, “H” for hours, “M” for minutes and
“S” for seconds.
Owner This field displays the name of the creator of this entry.
Delete Click this to remove the selected event configuration.
Table 62 RMON Event : Overview (continued)
LABEL DESCRIPTION
Table 63 RMON Event Configuration Screens
LABEL DESCRIPTION
RMON MIB
Table:
Use this drop down list box to select the MIB table you want to view. Click Apply to
refresh the screen to the selected MIB table view.
Index This field displays the index number of the event entry.
