Chapter 3 Hardware Overview
ES-1528 User’s Guide
37
3 The switch automatically detects the installed transceiver. Check the LEDs to verify that
it is functioning properly.

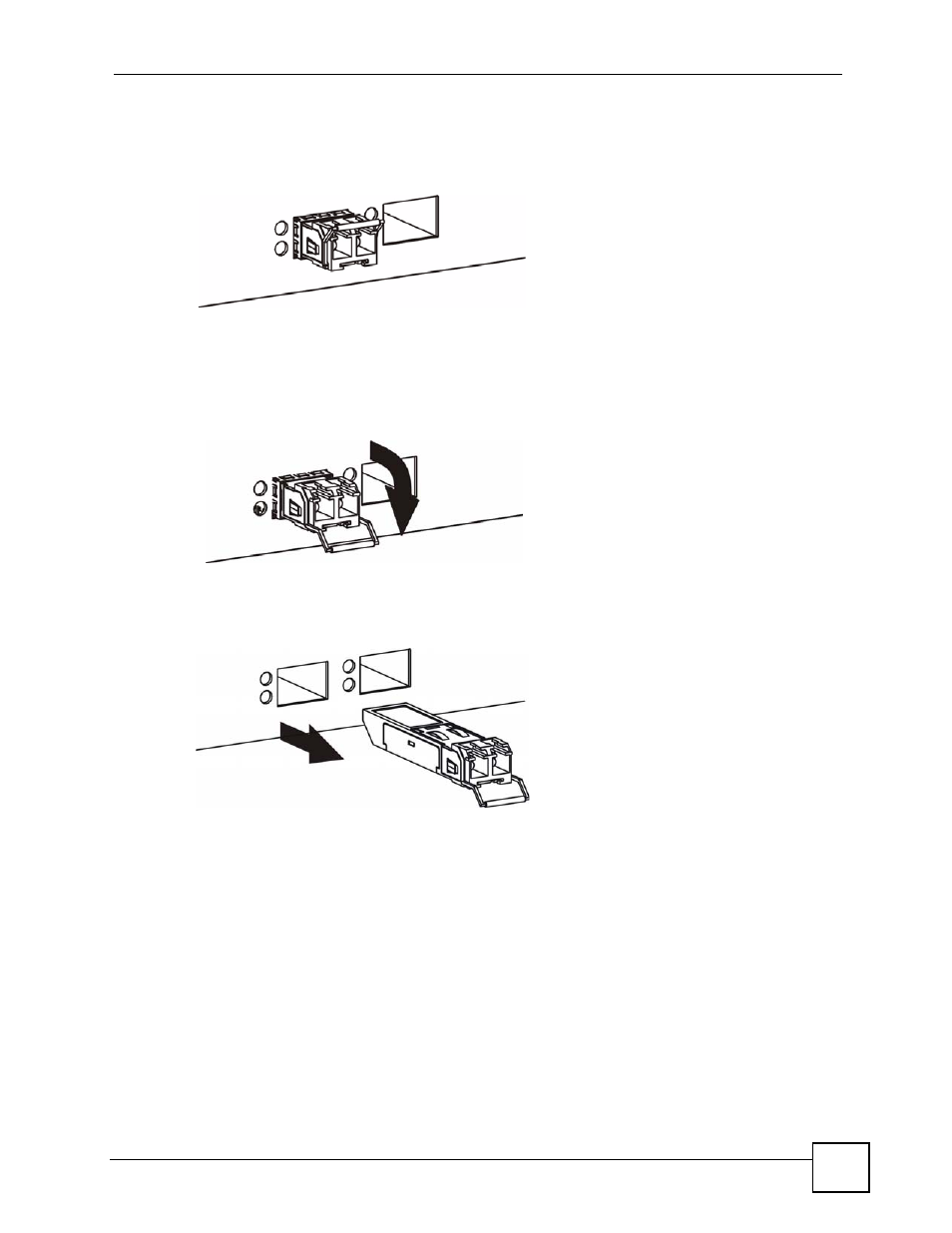

Figure 10 Installed Transceiver
3.1.2.2 Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module).
1 Open the transceiver’s latch (latch styles vary).
Figure 11 Opening the Transceiver’s Latch Example
2 Pull the transceiver out of the slot.
Figure 12 Transceiver Removal Example
3.2 The RESET Button
The switch allows you to reset the switch to its factory default configuration via the RESET
button. Press the RESET button for one second and release. The switch automatically reboots
and reloads its factory default configuration file.
