WIRING-HARNESSES LIGHT ASSEMBLY - PANEL TO WIRE TRACK
PART-NUMBER DESCRIPTION DIM A
INCHES
025-39020-001 Harness, Panel to Wire Track, #12 ga W/Conduit, 1’ LG. 12
025-39020-002 Harness, Panel to Wire Track, #12 ga W/Conduit, 2’ LG. 24
025-39020-003 Harness, Panel to Wire Track, #12 ga W/Conduit, 3’ LG. 36
025-39020-004 Harness, Panel to Wire Track, #12 ga W/Conduit, 4’ LG. 48
025-39020-005 Harness, Panel to Wire Track, #12 ga W/Conduit, 5’ LG. 60
025-39020-006 Harness, Panel to Wire Track, #12 ga W/Conduit, 6’ LG. 72
025-39020-007 Harness, Panel to Wire Track, #12 ga W/Conduit, 7’ LG. 84
025-39020-008 Harness, Panel to Wire Track, #12 ga W/Conduit, 8’ LG. 96
025-39020-009 Harness, Panel to Wire Track, #12 ga W/Conduit, 9’ LG. 108
025-39020-010 Harness, Panel to Wire Track, #12 ga W/Conduit, 10’ LG. 120
ADA PTA LOK
ADA PTA LOK
MALE TERMINALS 3 PLACES
3.0 ± .50
36.0 ± .50
90 DEG. NYLON
FTG. - 1/2 NPT
NYLON CONDUIT - 1/2 PIPE SIZE
STRAIGHT NYLON FTG - 1/2 NPT
DIM "A"

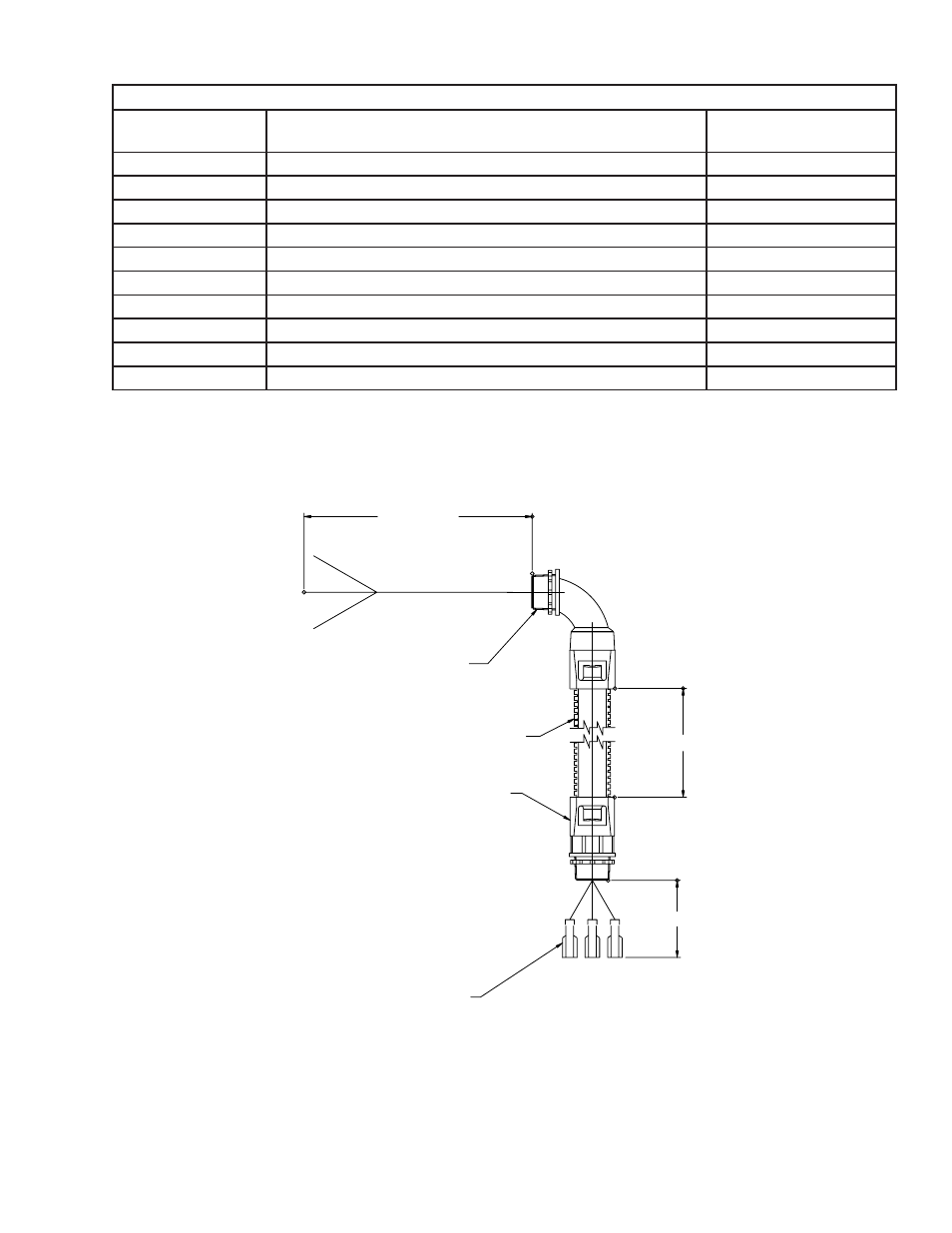

FIG. 19 - PANEL TO WIRETRACK
LDO9708
