59 YORK INTERNATIONAL
FORM 102.20-RP1(1104)
LIGHTING PARTS
LIGHT ASSEMBLIES
PART NUMBER DESCRIPTION
025-39019-002 Light assembly, w/switch, 11”lg.
025-39019-001 Light assembly, w/o switch, 11”lg.
025-39019-004 Light assembly, w/switch, 17”lg.
025-39019-003 Light assembly, w/o switch, 17”lg.
025-39019-006 Light assembly, w/switch, 28”lg.
025-39019-005 Light assembly, w/o switch, 28”lg.
LIGHT ASSEMBLY BREAKDOWN
ITEM
N0.
PART
NUMBER
DESCRIPTION
1 LIGHT BRACKET/WIREWAY
2 025-39014-001 PULL SWITCH
3 GROMMET
4 1/4-20 PANEL NUT
5 025-39013-001 LIGHT FIXTURE W/ COVER
6 1/4-20 X 3/4 LG PAN HD SCREW
7 LIGHT BULB
8 FEMALE INSULATED TERMINAL
9 MALE INSULATED TERMINAL
10 CHAIN CONNECTOR, #6, NICKEL
PLATED BRASS
11 BALL CHAIN, #6, NICKEL PLATED
STEEL
12 WIRING HARNESS
13 SELF ADHESIVE CABLE MOUNT
14 CABLE TY-WRAP
REF LEADS FROM LIGHT FIXTURE
(ITEM 5)
WITH PULL SWITCH
WITHOUT PULL SWITCH
1
4
3
5
2
13
6
7
14
8
8
9
4 PLACES
4 PLACES
PRESS INTO ITEM 1
12
11 10
13 14 12
NOT USED
ON -002 NOT USED
ON -001
8
NOTE: 2 SCREWS TO ATTACH
COVER TO BASE SUPPLIED
WITH FIXTURE
TERMINALS TO BE WITHIN 3
INCHES OF EDGE
TERMINALS TO BE WITHIN 3
INCHES OF EDGE
SECURE TO LEAD
OF SWITCH (ITEM 2)
SECURE TO LEAD
OF SWITCH (ITEM 2)
3 PL SECURE TO LEADS OF
LIGHT FIXTURE (ITEM 5)
3 PL SECURE TO LEADS OF
LIGHT FIXTURE (ITEM 5)
SECURE TO ITEM 1
AND INSTALL ITEM
7 BEFORE
SECURING COVER
REF 3 LEADS FROM FIXTURE:
WHITE, BLACK & BARE
(GROUND)
REF FOAM PAD SECURED
TO BASE OF LIGHT FIXTURE
TO SEAL COVER

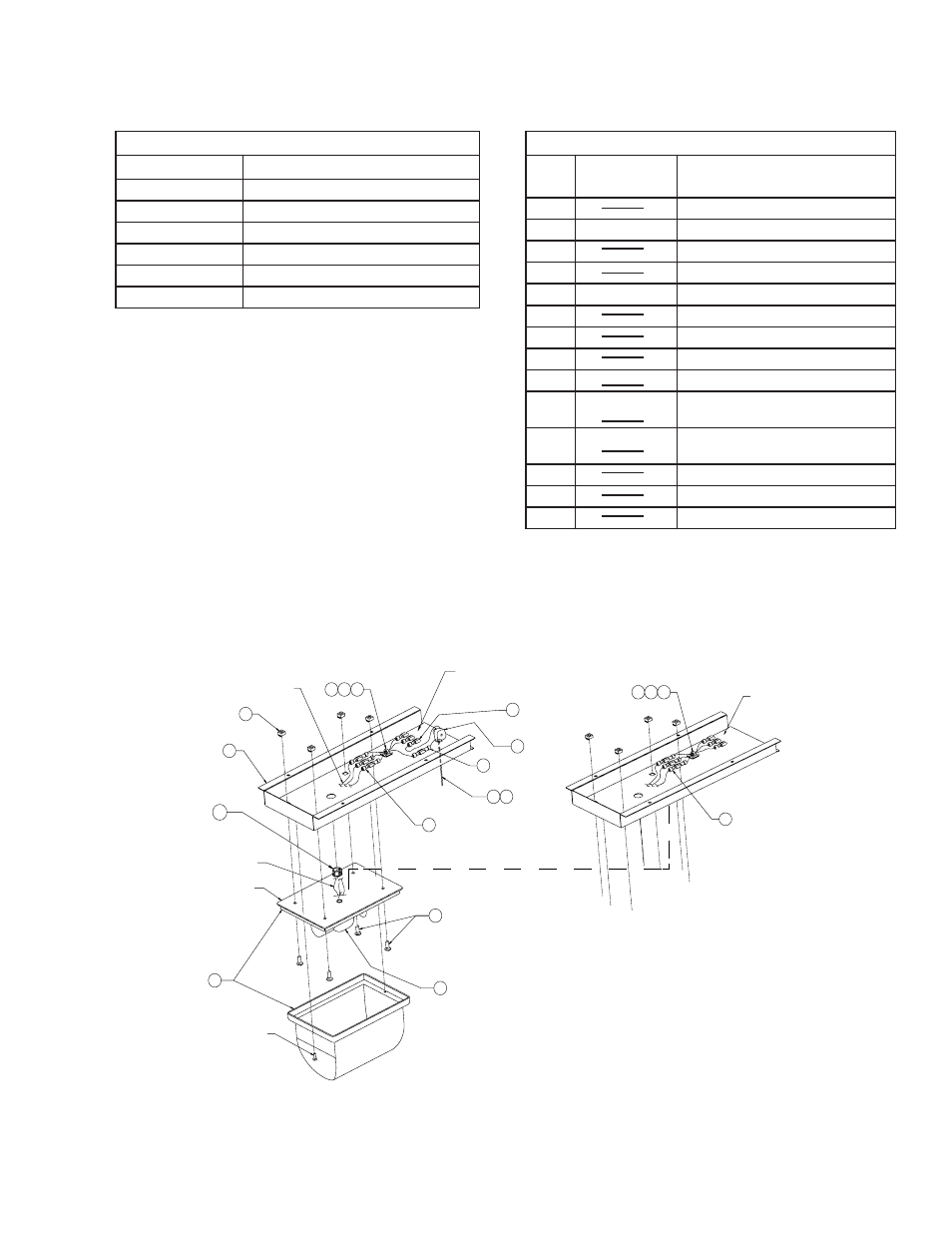

FIG. 17 - EXPLODED VIEW OF LIGHT ASSEMBLIES
LDO9696
