27 YORK INTERNATIONAL
FORM 102.20-RP1(1104)
WIRE CONNECTORS
PART NUMBER MOTOR
VOLTAGE
HP QTY
025-39042-001 200/208V 1,2,3 3
230/240V 1,2,3 4
460V 1,2,3,5,7.5 6
025-39042-003 200/208V 5 3
230/240V 5,7.5,10 4
460V 10,15 6
025-39043-001 200/208V 7.5,10 4
200/208V 15,20 3
230/240V 15,20,25 3
460V 20,25,30,40,50 6
025-39043-002 460V 60,75 6
025-39043-003 460V 100 6
025-39044-001 230/240V 10 3
025-39044-002 200/208V 25,30,40 3
230/240V 30,40,50 3

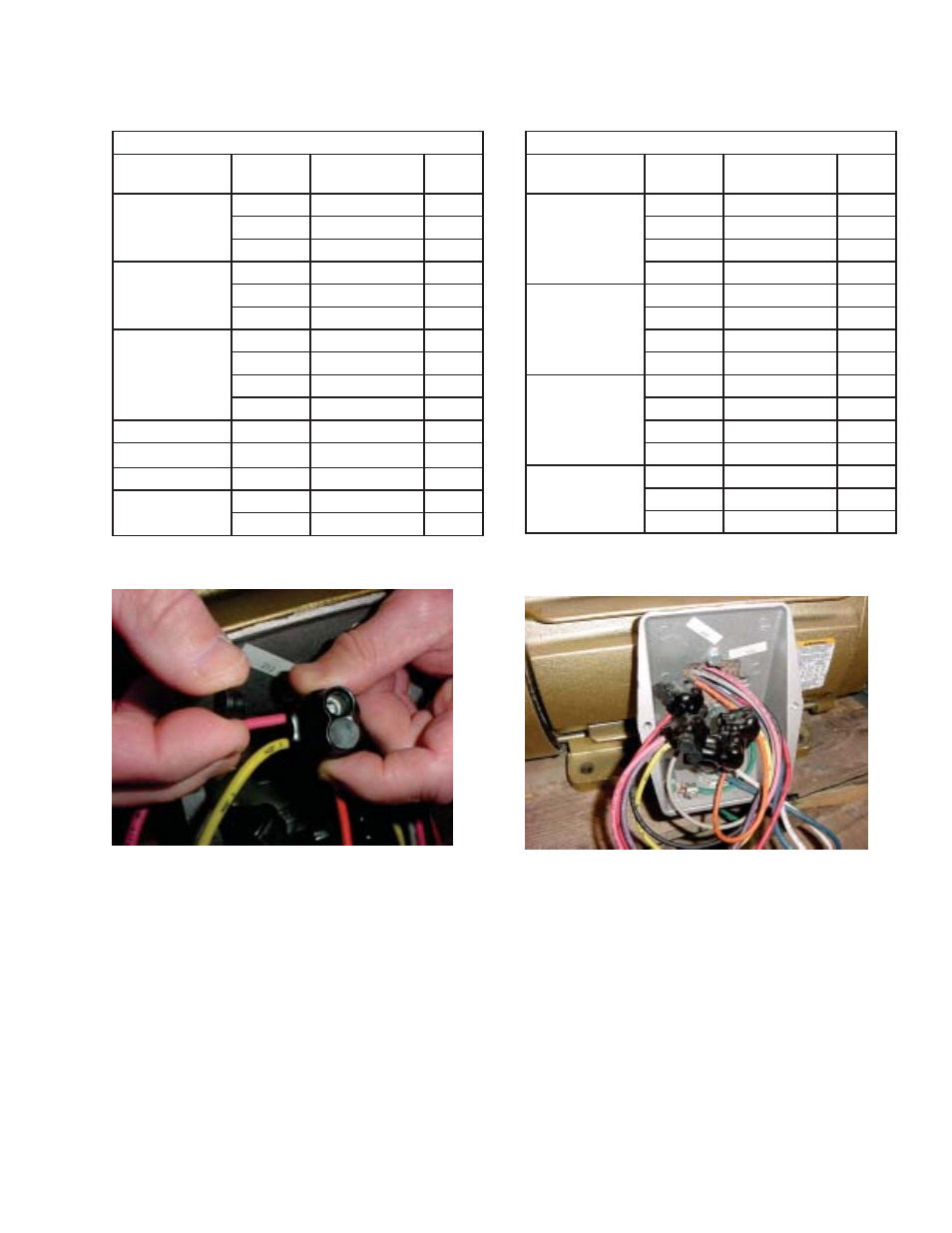

FIG. 6 - ASSEMBLY OF CONNECTORS
FIG. 7 - MOTOR WIRE CONNECTIONS
FLEXIBLE CABLE SLEEVES
PART NUMBER MOTOR
VOLTAGE
HP QTY
025-39049-001 200/208V 7.5,10,15 3
230/240V 10 3
230/240V 15 6
460V 20,25,30,40 3
025-39049-002 200/208V 20 6
200/208V 25 9
230/240V 20,25 6
460V 50 12
025-39049-003 200/208V 30 3
230/240V 30 9
230/240V 40 12
460V 60,75 12
025-39049-004 200/208V 40 9
230/240V 50 12
460V 100 12
MOTOR WIRING PARTS
