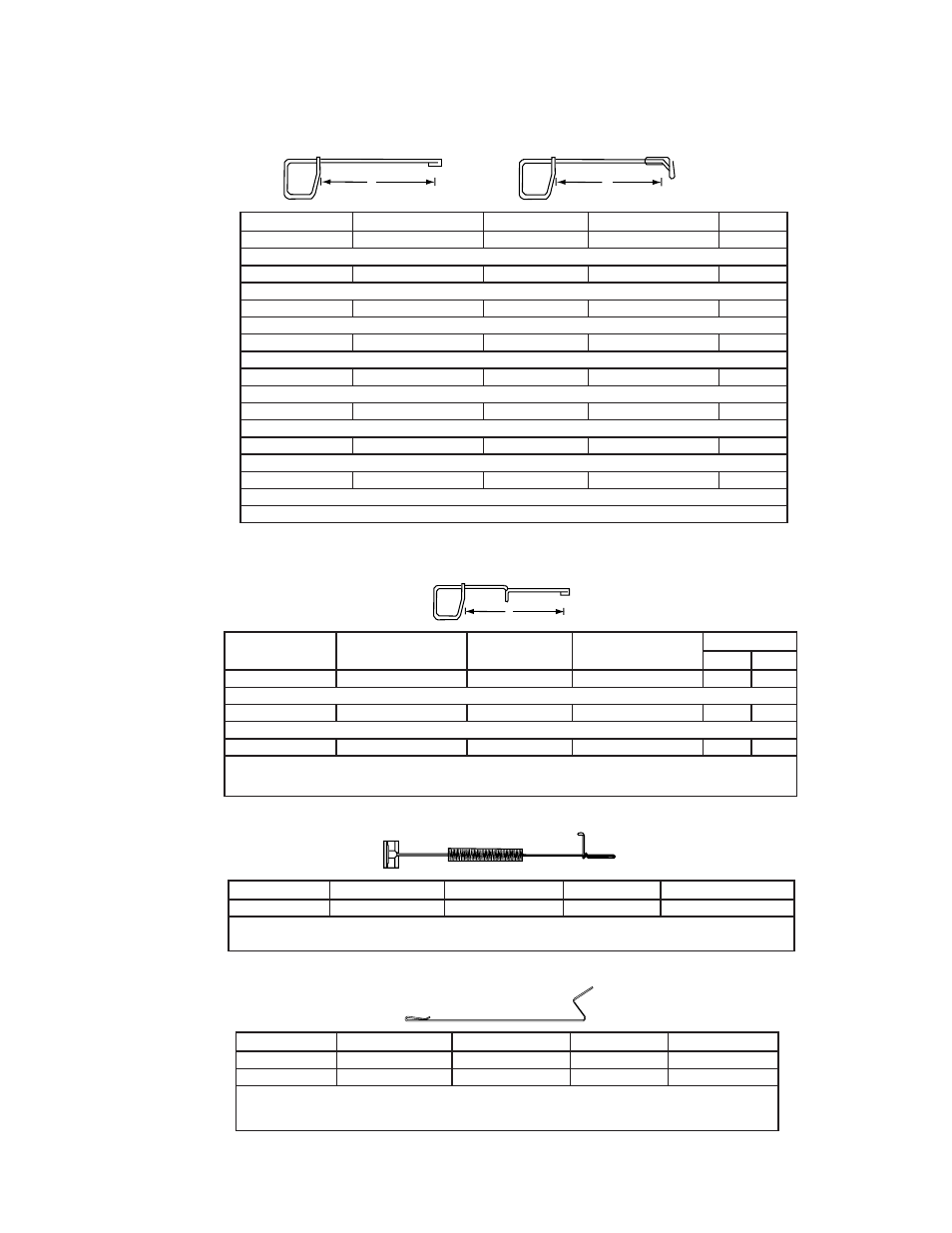

FIG. 15 - UNIVERSAL FRAME LATCH SELECTION
York Part Number Vendor Part Number Drawing Number Latch Model Number Length (L)
029-01048-005 391-007-004 80-1503507-4 L-10 5/32”
Application: Holds DriPak, VariCel or 1” fi lter in AAF Universal Holding Frame (UHF).
029-01048-006 391-007-005 80-1503507-5 L-20 11/16”
Application: Holds 2” thick fi lter. Also holds DriPak or VariCel with a 1" prefi lter in AAF UHF.
029-01048-000 391-007-006 80-1503507-6 L-30 2”
Application: Holds DriPak or VariCel with a 2” prefi lter in AAF UHF.
029-01048-007 391-007-003 80-1503507-3 L-40 3-1/16”
Application: Holds two 2” or one 4” deep fi lter in AAF UHF.
029-01048-008 391-007-007 80-1503507-7 L-50 3-15/16”
Application: Holds DriPak or VariCel with a 4” prefi lter in AAF UHF.
029-01048-012 391-006-004 80-1529262-4 L10 - Knockon 11/16”
Application: Holds DriPak, VariCel or 1” fi lter.
029-01048-014 391-006-005 80-1529262-5 L20 - Knockon 1-5/8"
Application: Holds 2” thick fi lter. Also holds DriPak or VariCel with a 1" prefi lter.
029-01048-013 391-006-008 80-1529262-8 L40 - Knockon 3-5/8"
Application: Holds two 2” fi lters or one 4" deep fi lter.
See HEPA fi lter section for HEPA fi lter latch part numbers and application.
York Part Number Vendor Part Number Drawing Number Latch Model Number Length
L-1 L-2
029-01048-010 391-007-009 80-1503507-9 L-41 11/16” 3-1/16””
Application: Holds VariCel II or 4” AmAir with a 1” prefi lter in AAF UHF
029-01048-009 391-007-002 80-1503507-2 L-42 1-11/16” 3-1/16””
Application: Holds VariCel II or 4” AmAir with a 2” prefi lter in AAF UHF
029-01048-011 391-007-001 80-1503507-1 L-44 3-9/16”” 3-1/16””
Application: Holds VariCel II or 4” AmAir with a 4” prefi lter in AAF UHF
Note: Four (4) latches are reccomended per frame.
General Information: Latches are made of .102" diameter zinc plated dipped spring steel.
York Part Number Vendor Part Number Latch Model Number Description Service
026-36343-000 315-001-001 SL-12 SL-12” Spring Latch Upstream or Downstream
Application: Holds a 12” deep double header VariCel in a FARR Universal Type 8 Holding Frame. (Can be used with AAF Universal
Holding Frames or other manufacturers frames).
York Part Number Vendor Part Number Latch Model Number Description Service
026-36339-001 315-003-002 VP-2 2” Clip Upstream
026-36339-000 315-003-004 VP-4 4” Clip Upstream
Application: Holds a 2” or 4”prefi lter respectively, against the face of a DH VariCel. Can also be used on a SH VariCel installed in
a DriPak Holding Frame.
Prefi lter Retaining Clips are made of zinc plated yellow chromated dipped steel
SINGLE LATCHES
KNOCK ON CONVERSION LATCH
DOUBLE LATCHES
Prefi lter can be changed without disturbing the fi nal fi lter
KNOCK ON SPRING LATCH, VARICEL DH
PREFILTER RETAINER CLIP, VARICEL DH
L
L L Note: Four (4) latches are
reccomended per frame
