ADJUSTABLE MOTOR BASES (CONTINUED)
Frame
Size
Motor
HP
Assembly Base
P/N
Fan
Size/Type
Fan
Size/Type
Fan
Size/Type
Fan
Size/Type
Fan
Size/Type
Fan
Size/Type
143T 1 386-23965-001
145T 2 386-23965-001 PL321
182T 3 386-23965-001 BAF300 BAF330 BAF365 BAF402 PL321
184T 5 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
254T 15 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
256T 20 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
324T 40 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
326T 50 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
404T 100 386-23965-001 BAF365 BAF402 BAF445
405T 125 386-23965-001
213T 7.5 386-23960-001 PL351
215T 10 386-23960-001 PL351 PL391 PL441 PL491 PL551
284T 25 386-23960-001 PL351 PL391 PL441 PL491 PL551
286T 30 386-23960-001 PL351 PL391 PL441 PL491 PL551
364T 60 386-23960-001 PL351 PL391 PL441 PL491 PL551
365T 75 386-23960-001 PL351 PL391 PL441 PL491 PL551
143T 1 386-23965-001 PL351 PL391
145T 2 386-23965-001 PL351 PL391 PL441
182T 3 386-23965-001 PL351 PL391 PL441
184T 5 386-23965-001 PL351 PL391 PL441 PL491 PL551
254T 15 386-23965-001 PL351 PL391 PL441 PL491 PL551
256T 20 386-23965-001 PL351 PL391 PL441 PL491 PL551
324T 40 386-23965-001 PL351 PL391 PL441 PL491 PL551
326T 50 386-23965-001 PL351 PL391 PL441 PL491 PL551
404T 100 386-23965-001 PL391 PL441 PL491 PL551
405T 125 386-23965-001
DRIVE BOLT ASSEMBLY HOLD DOWN
BOLT ASSEMBLY
See Fig. 9 "Securing Fans and Motors"
for proper hardware.

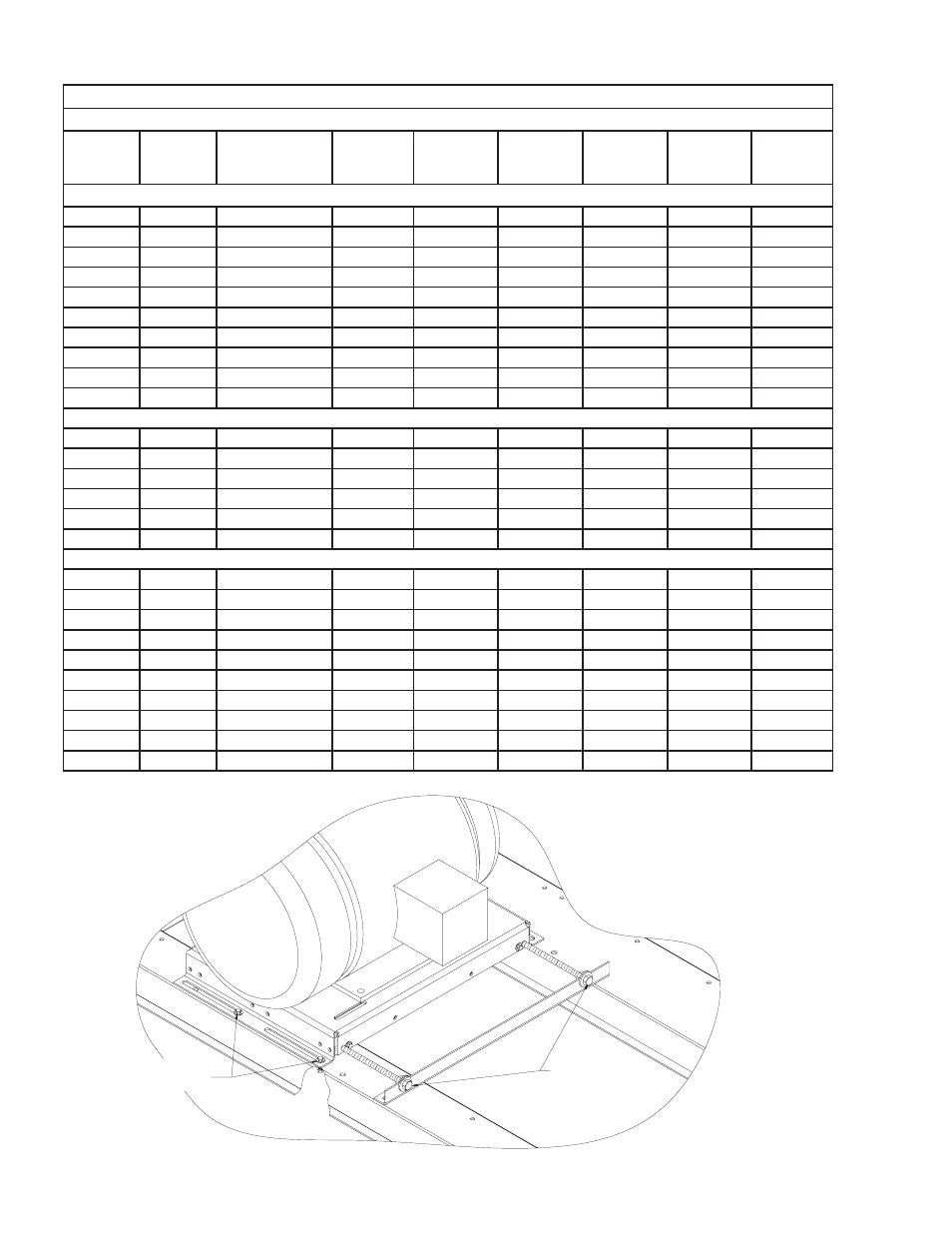

FIG. 8 - ADJUSTABLE MOTOR BASE LDO9693
