Chapter 5 Initial Setup Example
ES-2024 Series User’s Guide
57

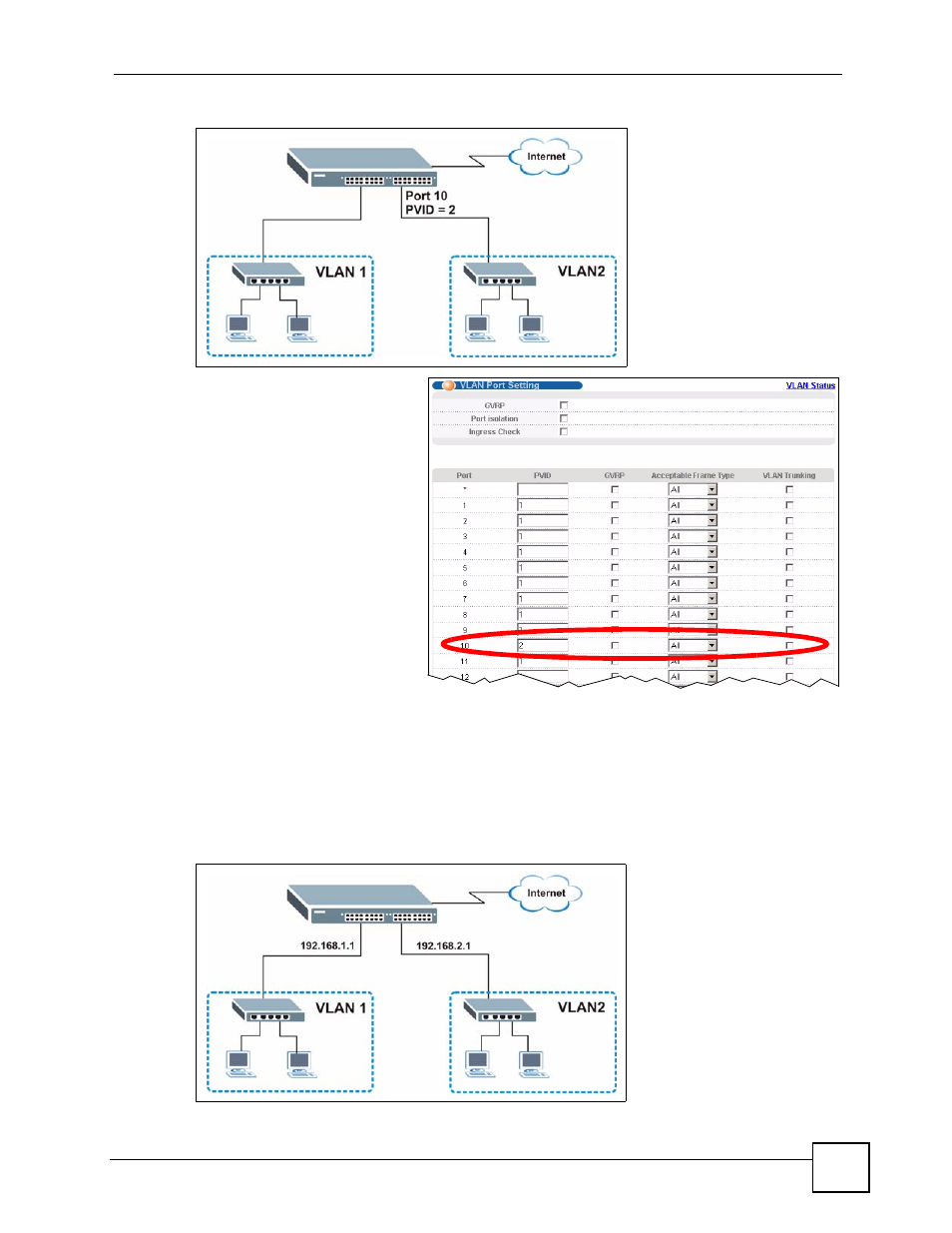

Figure 21 Initial Setup Network Example: Port VID
1 Click Advanced
Applications and VLAN
in the navigation panel.
Then click the VLAN
Port Setting link.
2 Enter 2 in the PVID field
for port 10 and click
Apply to set the VLAN
port setting and click the
Save button to save the
settings.
5.1.3 Configuring Switch Management IP Address
The default management IP address of the Switch is 192.168.1.1. You can configure another
IP address in a different subnet for management purposes. The following figure shows an
example.
Figure 22 Initial Setup Example: Management IP Address
