Chapter 25 DHCP
ES-2024 Series User’s Guide
186

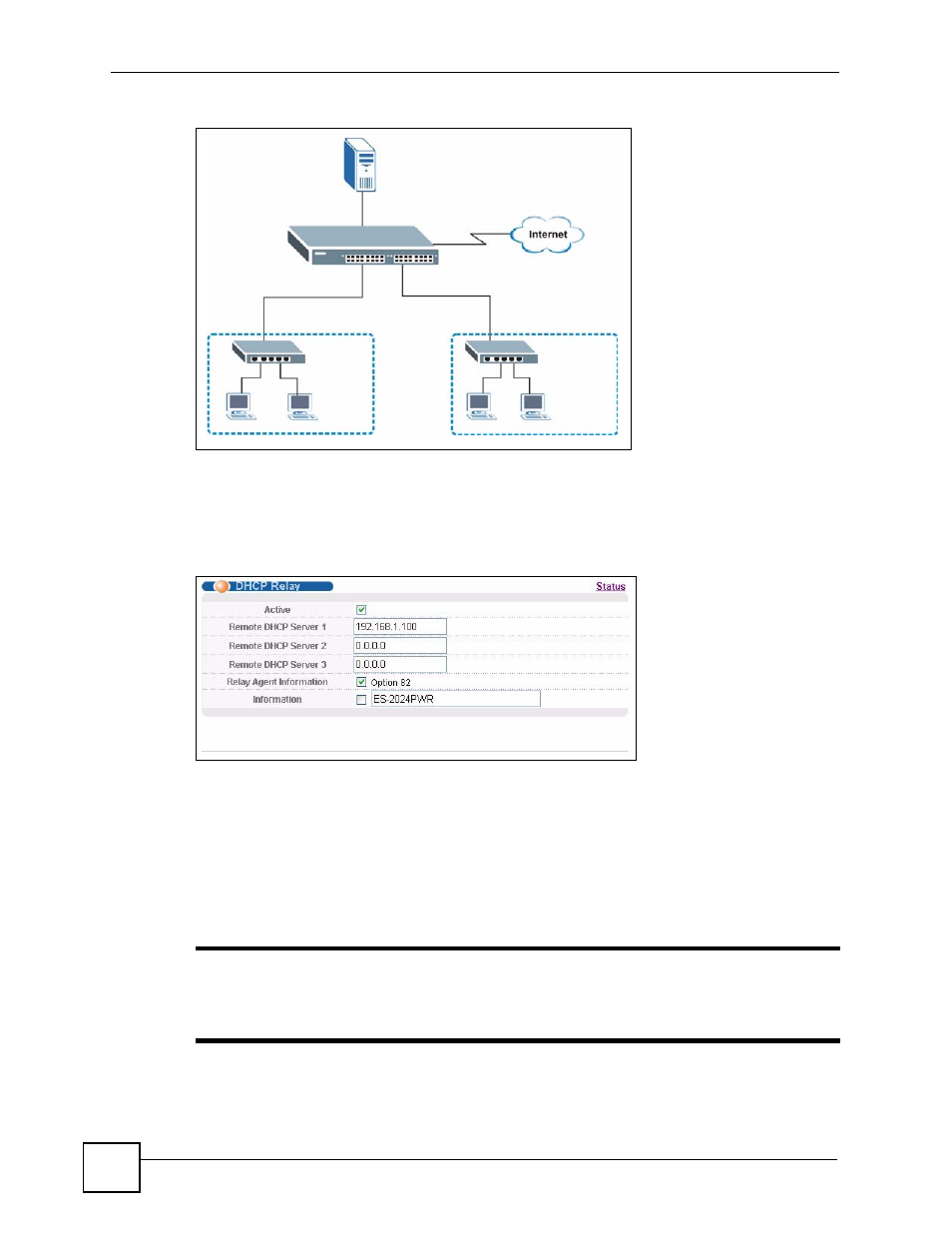

Figure 101 Global DHCP Relay Network Example
Configure the DHCP Relay screen as shown. Make sure you select the Option 82 check box
to set the Switch to send additional information (such as the VLAN ID) together with the
DHCP requests to the DHCP server. This allows the DHCP server to assign the appropriate IP
address according to the VLAN ID.
Figure 102 DHCP Relay Configuration Example
25.4 Configuring DHCP VLAN Settings
Use this screen to configure your DHCP settings based on the VLAN domain of the DHCP
clients. Click IP Application > DHCP in the navigation panel, then click the VLAN link In
the DHCP Status screen that displays.
"
You must set up a management IP address for each VLAN that you want to
configure DHCP settings for on the Switch. See
Section 7.6 on page 71 for
information on how to do this.
VLAN1 VLAN2
192.168.1.100
DHCP Server:
