Initial Setup Example
This chapter shows how to set up the Switch for an example network.
5.1 Overview
The following lists the configuration steps for the initial setup:
• Create a VLAN
• Set port VLAN ID
• Configure the Switch IP management address
Before you begin, you should log in to the web configurator.
1 Connect your computer to any Ethernet port on the Switch. Make sure your computer is
in the same subnet as the Switch.
2 Open your web browser and enter 192.168.1.1 (the default IP address) in the address bar
to access the web configurator.
See
5.1.1 Creating a VLAN
VLANs confine broadcast frames to the VLAN group in which the port(s) belongs. You can
do this with port-based VLAN or tagged static VLAN with fixed port members.
In this example, you want to configure port 10 as a member of VLAN 2.

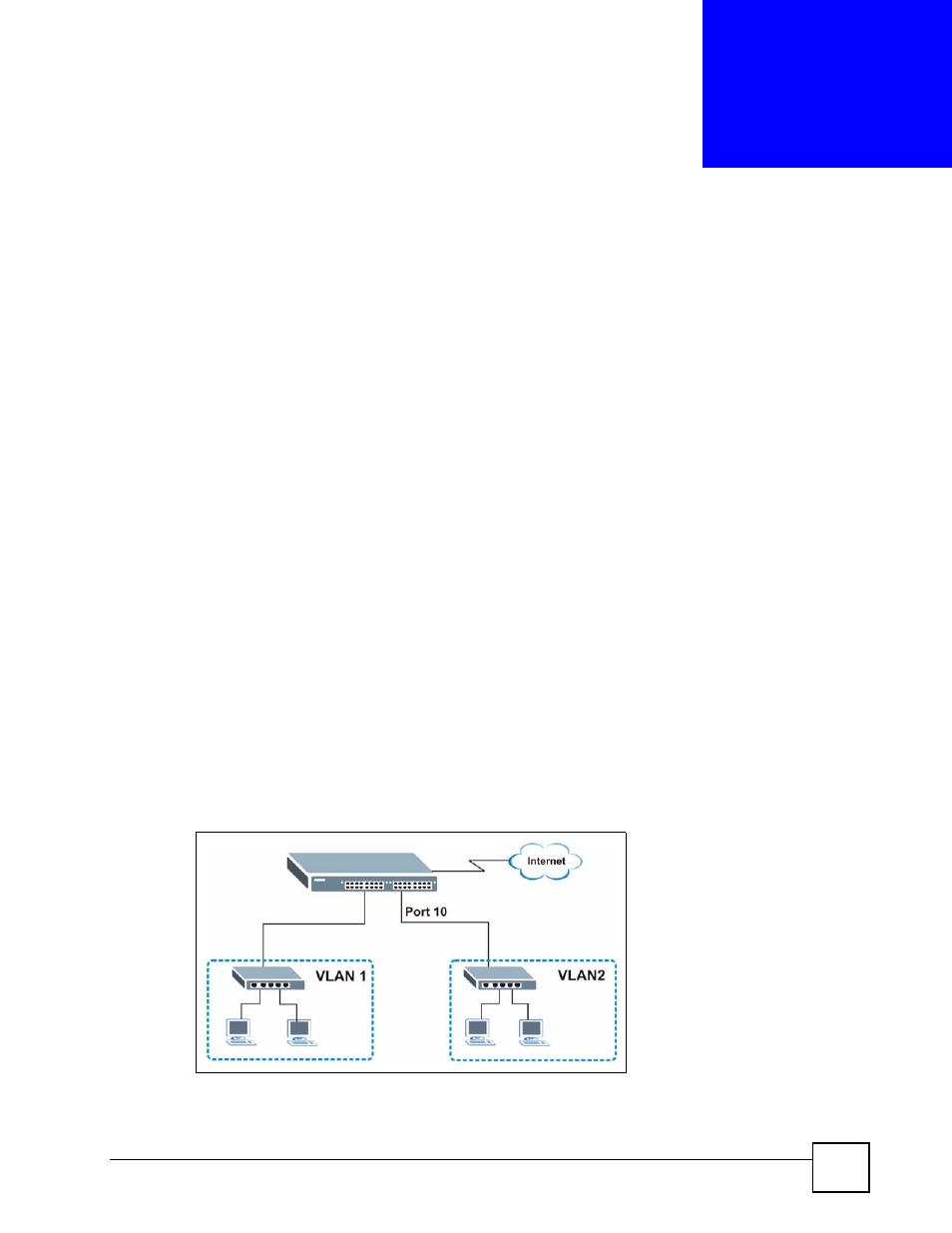

Figure 20 Initial Setup Network Example: VLAN
